Kenmore
Water & Ice System

Model # 106626392 Official Kenmore ice maker

Here are the diagrams and repair parts for Official Kenmore 106626392 ice maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |
Bracket 625910
#28

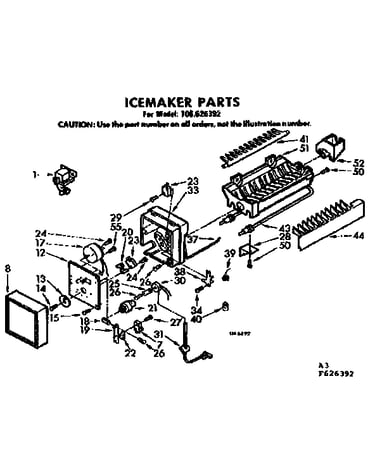

Icemaker diagram

Bracket

Part #625910

Replaced by #WP2256087

?
Manufacturer substitution
This part replaces 625910. Substitute parts can look different from the original.
$32.87
In Stock
Connector 227991
#40

Icemaker diagram

Connector

Part #227991

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Valve 627462
#1

Icemaker diagram

Refrigerator valve

Part #627462

Replaced by #4318047

?
Manufacturer substitution
This part replaces 627462. Substitute parts can look different from the original.
$28.19 |
24% OFF MSRP : $37.00
In Stock
Plate 625833
#12

Icemaker diagram

Plate

Part #625833

The manufacturer no longer makes this part, and there's no substitute part

Ice Maker Housing 625827
#33

Icemaker diagram

Ice maker housing

Part #625827

The manufacturer no longer makes this part, and there's no substitute part

Screw 488622
#24A

Icemaker diagram

Screw

Part #488622

The manufacturer no longer makes this part, and there's no substitute part

Cover 627041
#8

Icemaker diagram

Cover

Part #627041

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Ice Maker Cam 625913
#21

Icemaker diagram

Refrigerator ice maker cam

Part #625913

The manufacturer no longer makes this part, and there's no substitute part

Screw 488372
#26

Icemaker diagram

Screw

Part #488372

The manufacturer no longer makes this part, and there's no substitute part

Screw 488886
#15

Icemaker diagram

Screw

Part #488886

The manufacturer no longer makes this part, and there's no substitute part
