Amana GCC090B40B/P110704F gas furnace - gcc series Parts

Name: Amana GCC090B40B/P110704F Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: GCC090B40B/P110704F
Availability: InStock

Here are the diagrams and repair parts for Amana GCC090B40B/P110704F gas furnace - gcc series, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for GCC090B40B/P110704F Gas Furnace - GCC Series

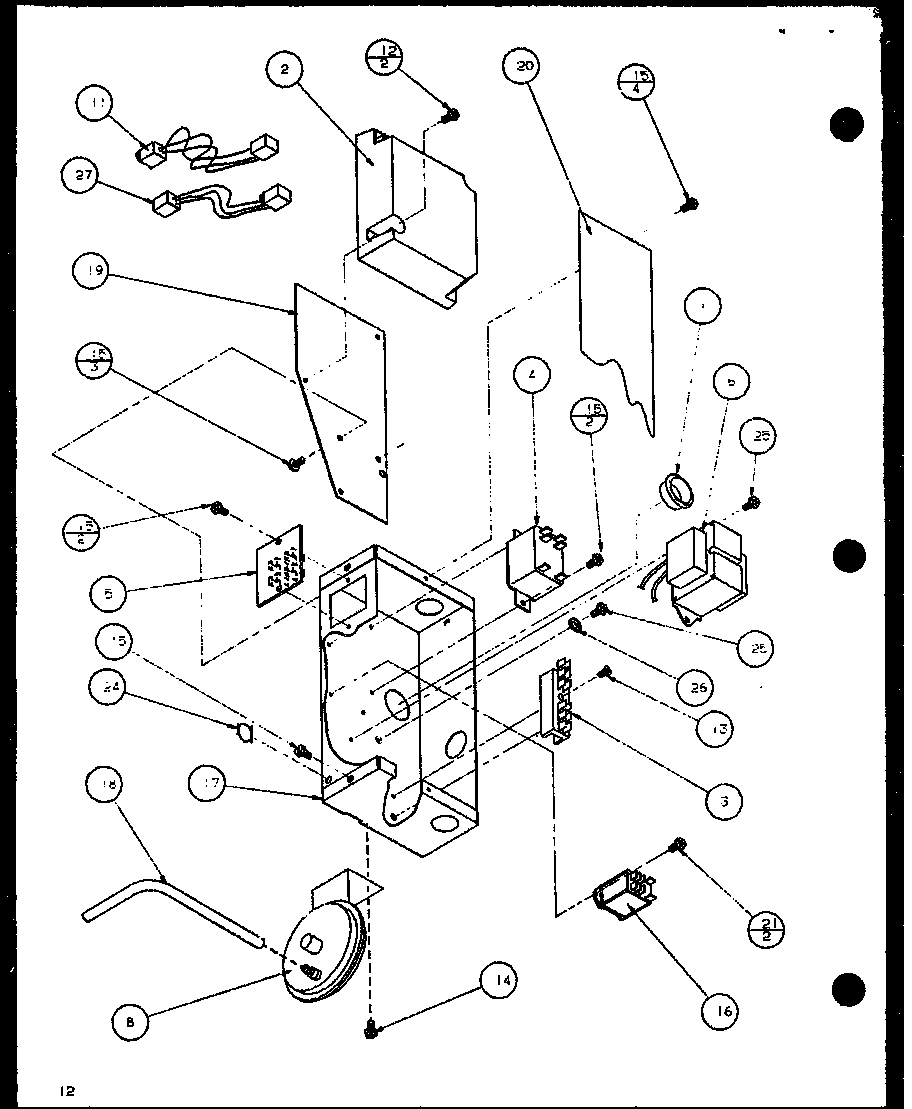

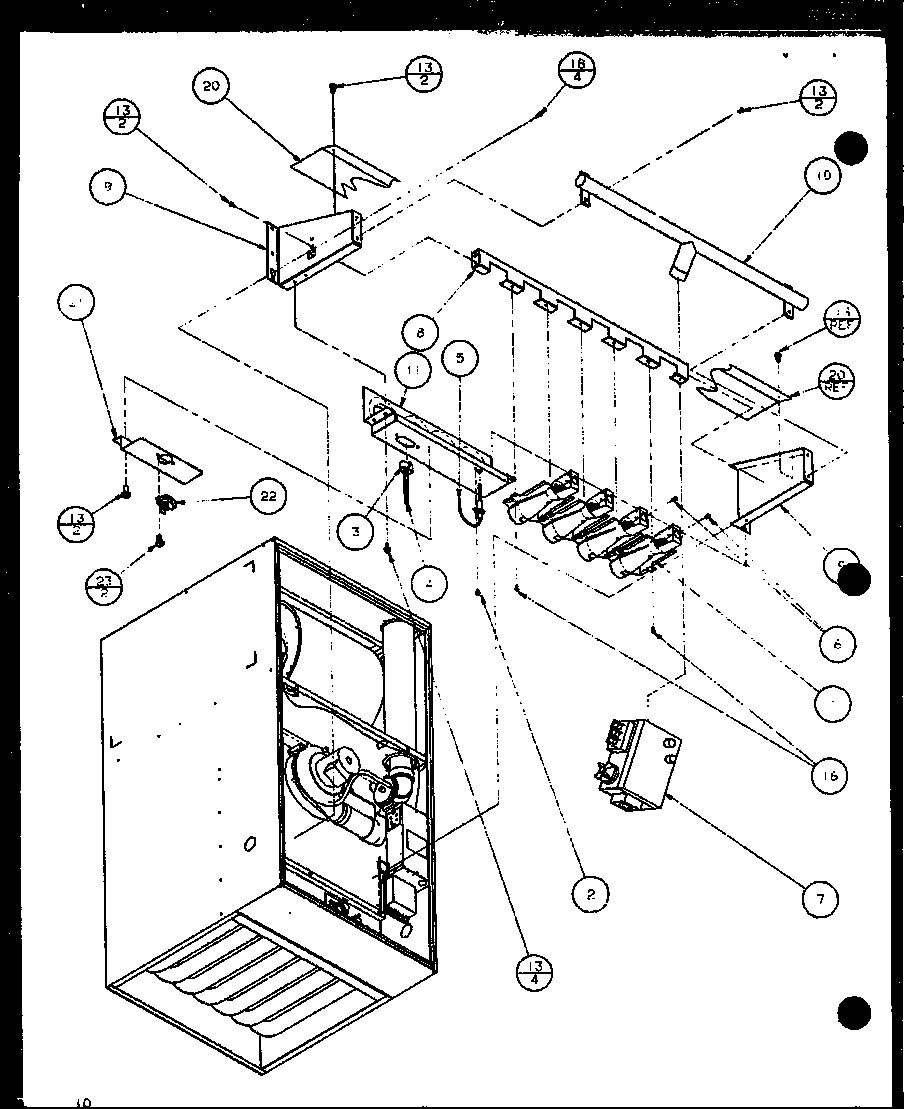

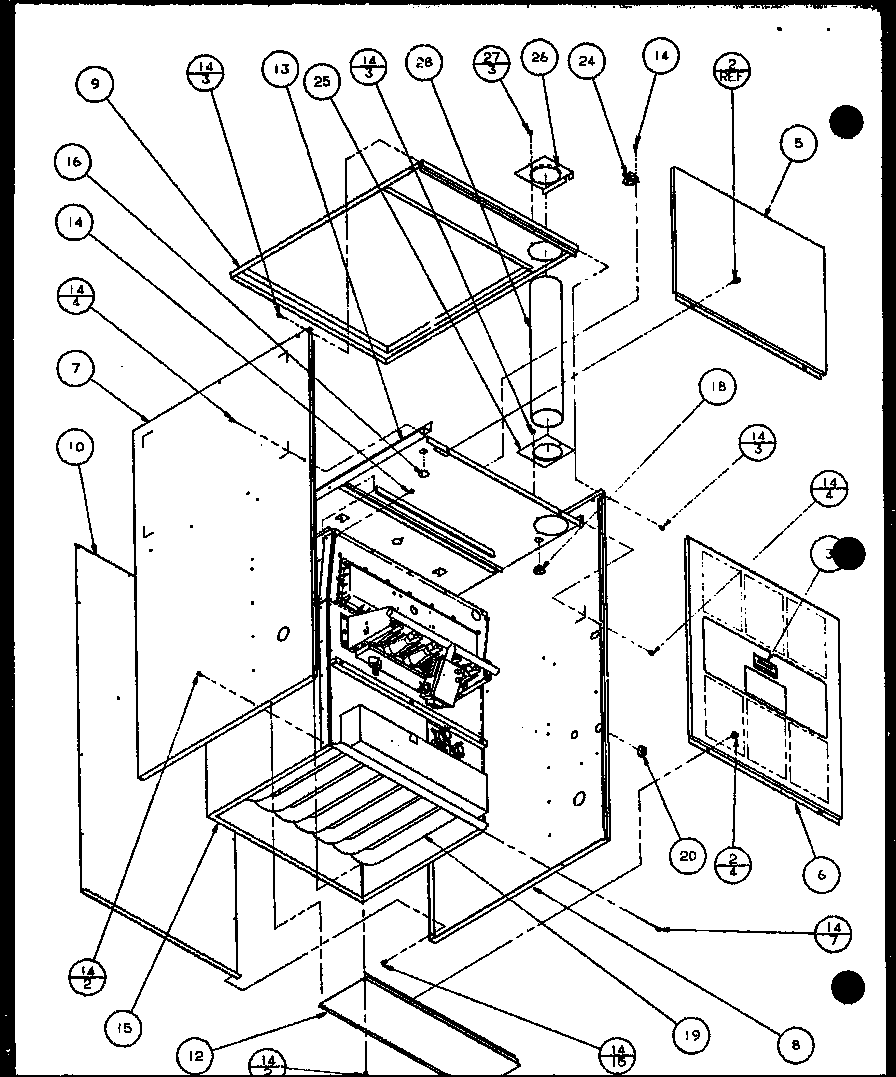

(gcc045b30b/p1107001f) (gcc070b30b/p1107002f) (gcc070b40b/p1107003f) (gcc090b40b/p1107004f) (gcc090b50b/p1107005f) (gcc115b50b/p1107006f) diagram

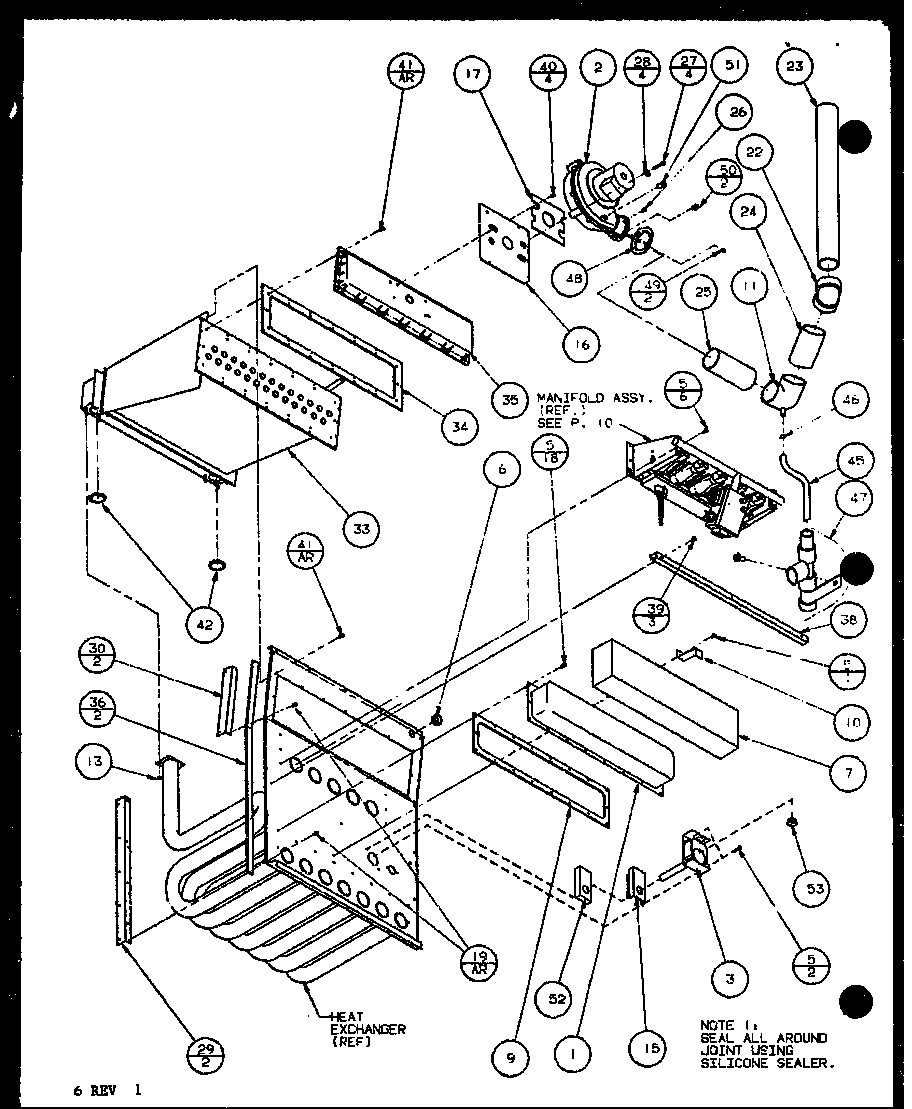

Bracket, Shield And Mounting
Part #D9950425
The manufacturer no longer makes this part, and there's no substitute part
(gcc045b30b/p1107001f) (gcc070b30b/p1107002f) (gcc070b40b/p1107003f) (gcc090b40b/p1107004f) (gcc090b50b/p1107005f) (gcc115b50b/p1107006f) diagram
Igniter Clip
Part #B1420601
The manufacturer no longer makes this part, and there's no substitute part
(gcc045b30b/p1107001f) (gcc070b30b/p1107002f) (gcc070b40b/p1107003f) (gcc090b40b/p1107004f) (gcc090b50b/p1107005f) (gcc115b50b/p1107006f) diagram
Cover, Recuperator Front
Part #D9983502
The manufacturer no longer makes this part, and there's no substitute part
(gcc045b30b/p1107001f) (gcc070b30b/p1107002f) (gcc070b40b/p1107003f) (gcc090b40b/p1107004f) (gcc090b50b/p1107005f) (gcc115b50b/p1107006f) diagram
Washer
Part #M0270001
The manufacturer no longer makes this part, and there's no substitute part
(gcc045b30b/p1107001f) (gcc070b30b/p1107002f) (gcc070b40b/p1107003f) (gcc090b40b/p1107004f) (gcc090b50b/p1107005f) (gcc115b50b/p1107006f) diagram
Shield, Front Cover
Part #C6476405
The manufacturer no longer makes this part, and there's no substitute part
(gcc045b30b/p1107001f) (gcc070b30b/p1107002f) (gcc070b40b/p1107003f) (gcc090b40b/p1107004f) (gcc090b50b/p1107005f) (gcc115b50b/p1107006f) diagram
Pipe, Pvc
Part #B1370908
The manufacturer no longer makes this part, and there's no substitute part
(gcc045b30b/p1107001f) (gcc070b30b/p1107002f) (gcc070b40b/p1107003f) (gcc090b40b/p1107004f) (gcc090b50b/p1107005f) (gcc115b50b/p1107006f) diagram
Access Door
Part #D6988009
The manufacturer no longer makes this part, and there's no substitute part
(gcc045b30b/p1107001f) (gcc070b30b/p1107002f) (gcc070b40b/p1107003f) (gcc090b40b/p1107004f) (gcc090b50b/p1107005f) (gcc115b50b/p1107006f) diagram
Recuperator Coil
Part #D9835715
The manufacturer no longer makes this part, and there's no substitute part
(gcc045b30b/p1107001f) (gcc070b30b/p1107002f) (gcc070b40b/p1107003f) (gcc090b50b/p1107005f) (gcc115b50b/p1107006f) (gcc090b40b/p110704f) diagram
Angle, Blower, Front
Part #D9950110
The manufacturer no longer makes this part, and there's no substitute part
(gcc045b30b/p1107001f) (gcc070b30b/p1107002f) (gcc070b40b/p1107003f) (gcc090b50b/p1107005f) (gcc115b50b/p1107006f) (gcc090b40b/p110704f) diagram
Furnace Blower Motor
Part #D9924901
The manufacturer no longer makes this part, and there's no substitute part
