Ryobi HP1201K 9.6-v 12-v center handle drill

Ryobi HP1201K 9.6-v 12-v center handle drill Parts

Here are the diagrams and repair parts for Ryobi HP1201K 9.6-v 12-v center handle drill, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for HP1201K Power Tools

  • Brand Label-hp961k for Ryobi HP1201K - Part 4910027

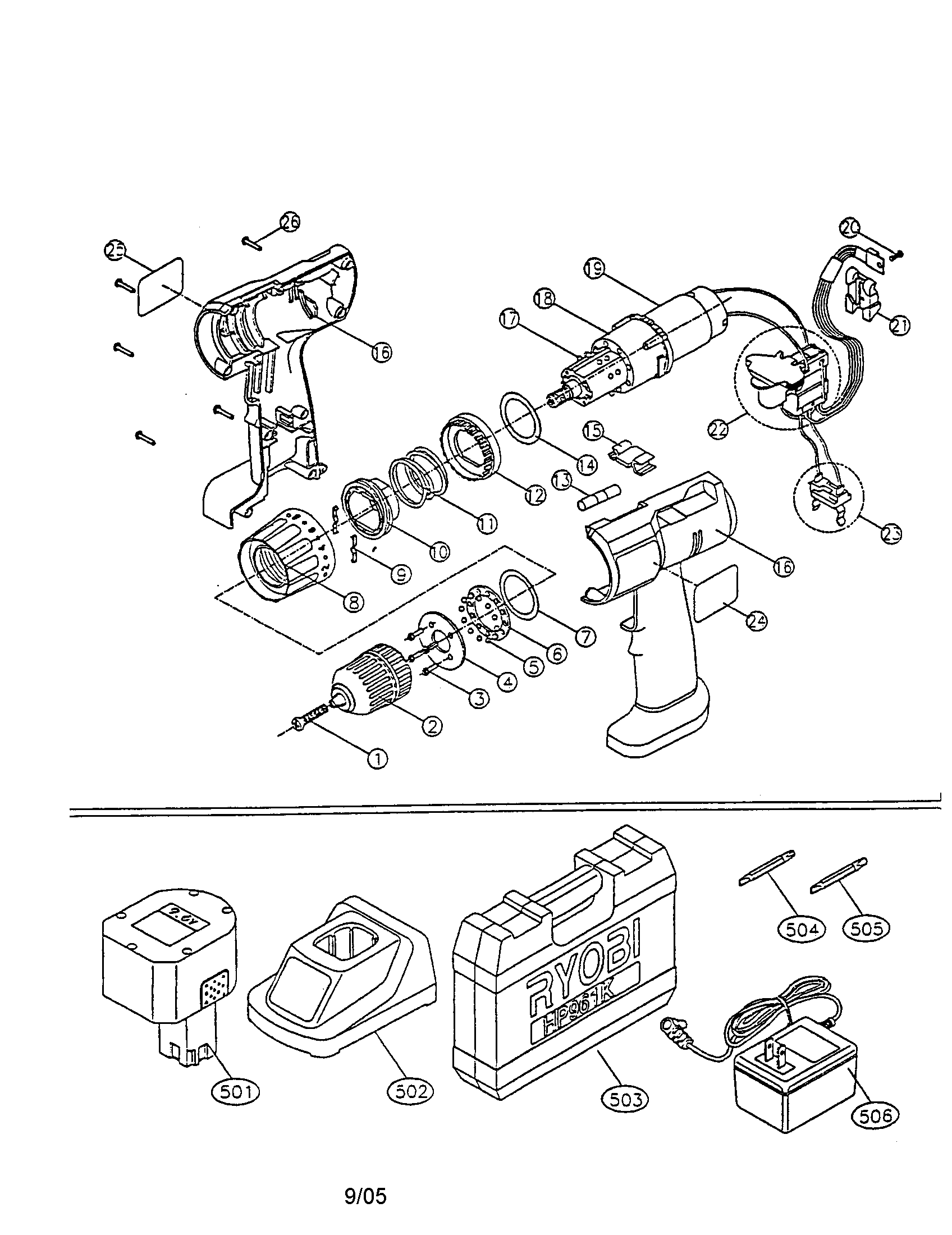

    9.6v / 12v center handle drill diagram

    Brand Label-hp961k

    Part #4910027

    The manufacturer no longer makes this part, and there's no substitute part

  • Housing-hp1201k for Ryobi HP1201K - Part 4800035

    9.6v / 12v center handle drill diagram

    Housing-hp1201k

    Part #4800035

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor Assembly-hp1201k for Ryobi HP1201K - Part 4030015

    9.6v / 12v center handle drill diagram

    Motor Assembly-hp1201k

    Part #4030015

    The manufacturer no longer makes this part, and there's no substitute part

  • Ball Holder, Plastic for Ryobi HP1201K - Part 4190002

    9.6v / 12v center handle drill diagram

    Ball Holder, Plastic

    Part #4190002

    The manufacturer no longer makes this part, and there's no substitute part

  • Machine Screw (l.h.t) for Ryobi HP1201K - Part 1130049

    9.6v / 12v center handle drill diagram

    Machine Screw (l.h.t)

    Part #1130049

    The manufacturer no longer makes this part, and there's no substitute part

  • Chuck,keyles for Ryobi HP1201K - Part 1940015

    9.6v / 12v center handle drill diagram

    Chuck,keyles

    Part #1940015

    The manufacturer no longer makes this part, and there's no substitute part

  • Casting Heat Sink for Ryobi HP1201K - Part 4590008

    9.6v / 12v center handle drill diagram

    Casting Heat Sink

    Part #4590008

    The manufacturer no longer makes this part, and there's no substitute part

  • Battery Pack-hp1201k (2) for Ryobi HP1201K - Part 1400670B

    9.6v / 12v center handle drill diagram

    Battery Pack-hp1201k (2)

    Part #1400670B

    The manufacturer no longer makes this part, and there's no substitute part

  • Battery Pack-hp961k (2) for Ryobi HP1201K - Part 1400669B

    9.6v / 12v center handle drill diagram

    Battery Pack-hp961k (2)

    Part #1400669B

    The manufacturer no longer makes this part, and there's no substitute part

  • Plate Holder Assembly for Ryobi HP1201K - Part 4560028

    9.6v / 12v center handle drill diagram

    Plate Holder Assembly

    Part #4560028

    The manufacturer no longer makes this part, and there's no substitute part
