Kenmore
Gas Water Heater

Model # 183335110 Official Kenmore super 48 gas water heater

Here are the diagrams and repair parts for Official Kenmore 183335110 super 48 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Temperature Knob F145-0087
#16

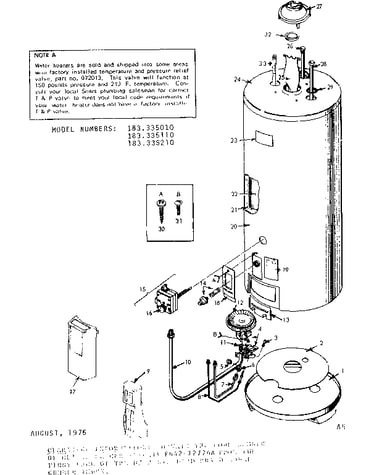

Replacement parts diagram

Temperature knob

Part #F145-0087

This item is not returnable
$7.49
In Stock
Screw, Sheet Metal #10 X 1 In 035003
#30

Replacement parts diagram

Screw, sheet metal #10 x 1 in

Part #035003

The manufacturer no longer makes this part, and there's no substitute part

Guarantee F642-12774A

#NI

All parts diagram

Guarantee

Part #F642-12774A

The manufacturer no longer makes this part, and there's no substitute part

Emblem 028269
#23

Replacement parts diagram

Emblem

Part #028269

The manufacturer no longer makes this part, and there's no substitute part

F/183.335210 119531
#2B

Replacement parts diagram

F/183.335210

Part #119531

The manufacturer no longer makes this part, and there's no substitute part

F/183.335010 & 183.335110 119087-07
#27A

Replacement parts diagram

F/183.335010 & 183.335110

Part #119087-07

The manufacturer no longer makes this part, and there's no substitute part

F/153.333610 022065
#10C

Replacement parts diagram

F/153.333610

Part #022065

The manufacturer no longer makes this part, and there's no substitute part

F/183.331410 183.331210 183.331510 F145-0091
#6

Replacement parts diagram

F/183.331410 183.331210 183.331510

Part #F145-0091

The manufacturer no longer makes this part, and there's no substitute part

F/183.331610 183.331710 022091
#10A

Replacement parts diagram

F/183.331610 183.331710

Part #022091

The manufacturer no longer makes this part, and there's no substitute part

Cover, Manifold F/183.335210 Only 119563-07
#17

Replacement parts diagram

Cover, manifold f/183.335210 only

Part #119563-07

The manufacturer no longer makes this part, and there's no substitute part
