Thermador
Warming Drawer

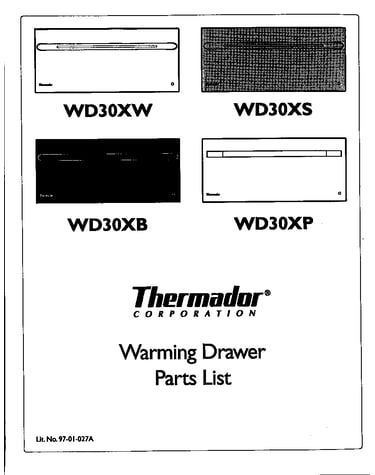

Model # WD30XP Official Thermador warming drawer

Here are the diagrams and repair parts for Official Thermador WD30XP warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

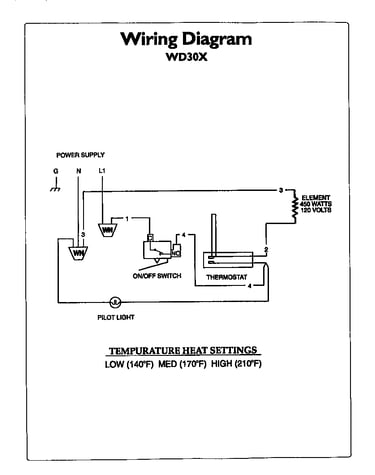

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |

Handle (white) 14-38-982-02
#9

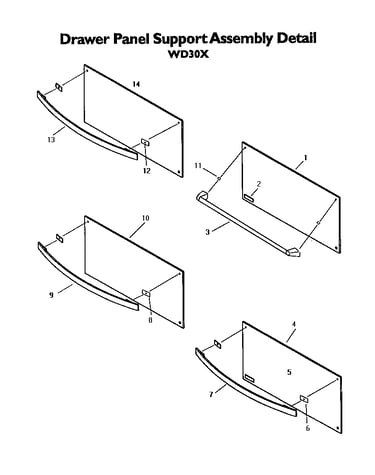

Drawer panel support assembly diagram

Handle (white)

Part #14-38-982-02

In Stock
Insulation 14-07-359
#12

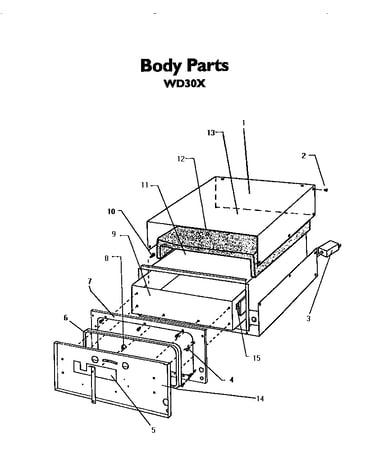

Body diagram

Insulation

Part #14-07-359

In Stock
Bracket 14-07-326
#8

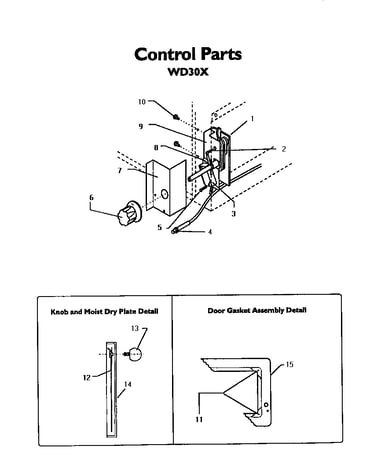

Control parts diagram

Bracket

Part #14-07-326

This item is not returnable
In Stock
Rack 14-07-382-02
#9

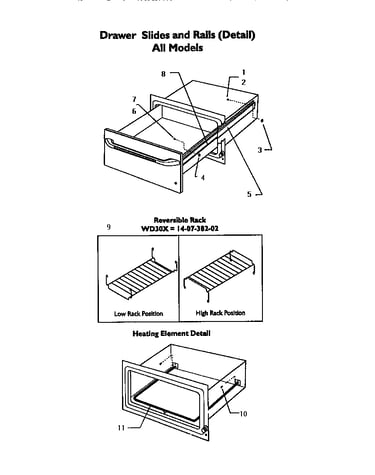

Drawer slides and rails diagram

Rack

Part #14-07-382-02

In Stock
Plate 14-07-330
Plate

Part #14-07-330

This item is not returnable
In Stock
Gasket 14-07-381
Gasket

Part #14-07-381

Replaced by #484325

?
Manufacturer substitution
This part replaces 14-07-381. Substitute parts can look different from the original.
In Stock
Stainless Glass Support Assembly 14-07-413-03
#4

Drawer panel support assembly diagram

Stainless glass support assembly

Part #14-07-413-03

The manufacturer no longer makes this part, and there's no substitute part

White Glass Support Assembly 14-07-413-02
#10

Drawer panel support assembly diagram

White glass support assembly

Part #14-07-413-02

The manufacturer no longer makes this part, and there's no substitute part

Dishwasher Thermostat 14-07-335
#1

Control parts diagram

Dishwasher thermostat

Part #14-07-335

The manufacturer no longer makes this part, and there's no substitute part

Can, Half 14-07-354
#11

Body diagram

Can, half

Part #14-07-354

The manufacturer no longer makes this part, and there's no substitute part
