Climette/Keeprite/Zoneaire
Room Air Conditioner

Model # CSM511350 Official Climette/Keeprite/Zoneaire air conditioner

Here are the diagrams and repair parts for Official Climette/Keeprite/Zoneaire CSM511350 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

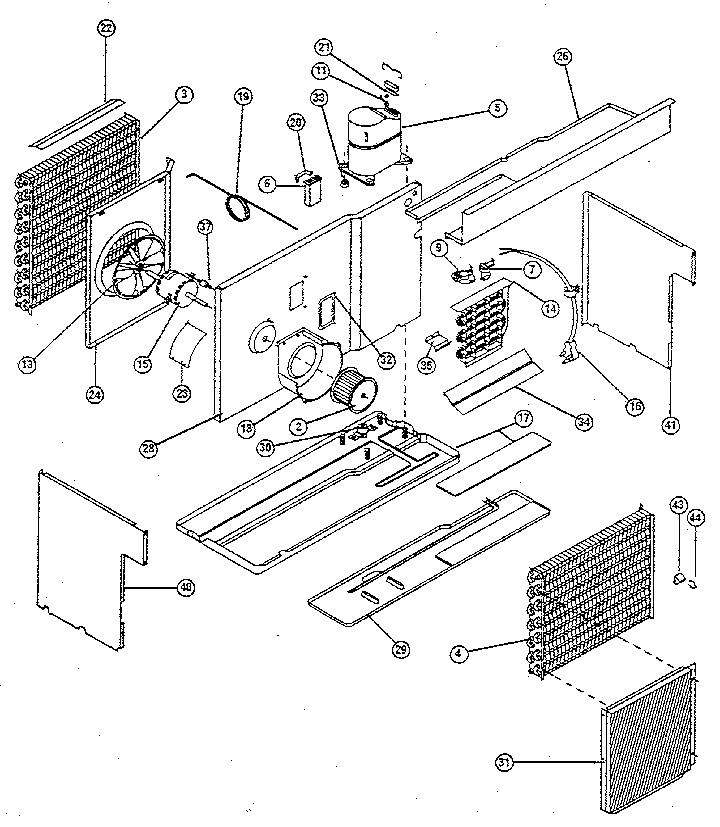

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |

Comp Cap 61903008

#6C

All parts diagram

Comp cap

Part #61903008

Replaced by #12908

?
Manufacturer substitution
This part replaces 61903008. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.26
16% OFF Phone Price : $6.26
In Stock
Motor Cap 61903017

#6A

All parts diagram

Motor cap

Part #61903017

The manufacturer no longer makes this part, and there's no substitute part

Limit Switch 54033003

#9B

All parts diagram

Limit switch

Part #54033003

Replaced by #1320367

?
Manufacturer substitution
This part replaces 54033003. Substitute parts can look different from the original.
In Stock
Comp Cap 61903007

#6B

All parts diagram

Comp cap

Part #61903007

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 61903018

#6H

All parts diagram

Capacitor

Part #61903018

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 100196

#6G

All parts diagram

Capacitor

Part #100196

Replaced by #12917

?
Manufacturer substitution
This part replaces 100196. Substitute parts can look different from the original.
In Stock
Capacitor 100195

#6D

All parts diagram

Capacitor

Part #100195

The manufacturer no longer makes this part, and there's no substitute part

Heater 74040006

#14I

All parts diagram

Heater

Part #74040006

The manufacturer no longer makes this part, and there's no substitute part

Clip      J 44249001

#NI

All parts diagram

Clip j

Part #44249001

The manufacturer no longer makes this part, and there's no substitute part

Therm Heater 54035002

#NI

All parts diagram

Therm heater

Part #54035002

The manufacturer no longer makes this part, and there's no substitute part
