Whirlpool
Room Air Conditioner

Model #ACM254XJ1 Whirlpool air conditioner

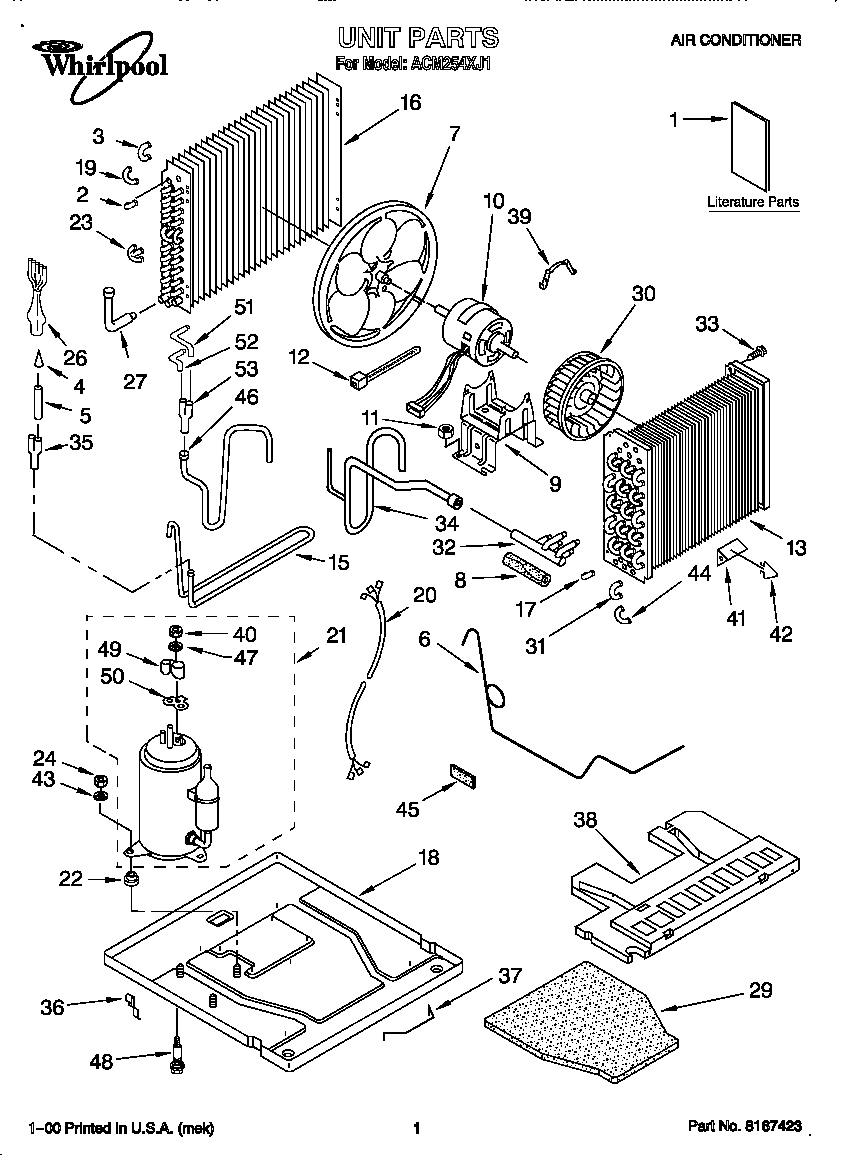

Here are the repair parts and diagrams for your Whirlpool ACM254XJ1 air conditioner.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 151 parts

Room Air Conditioner Cover

#14D

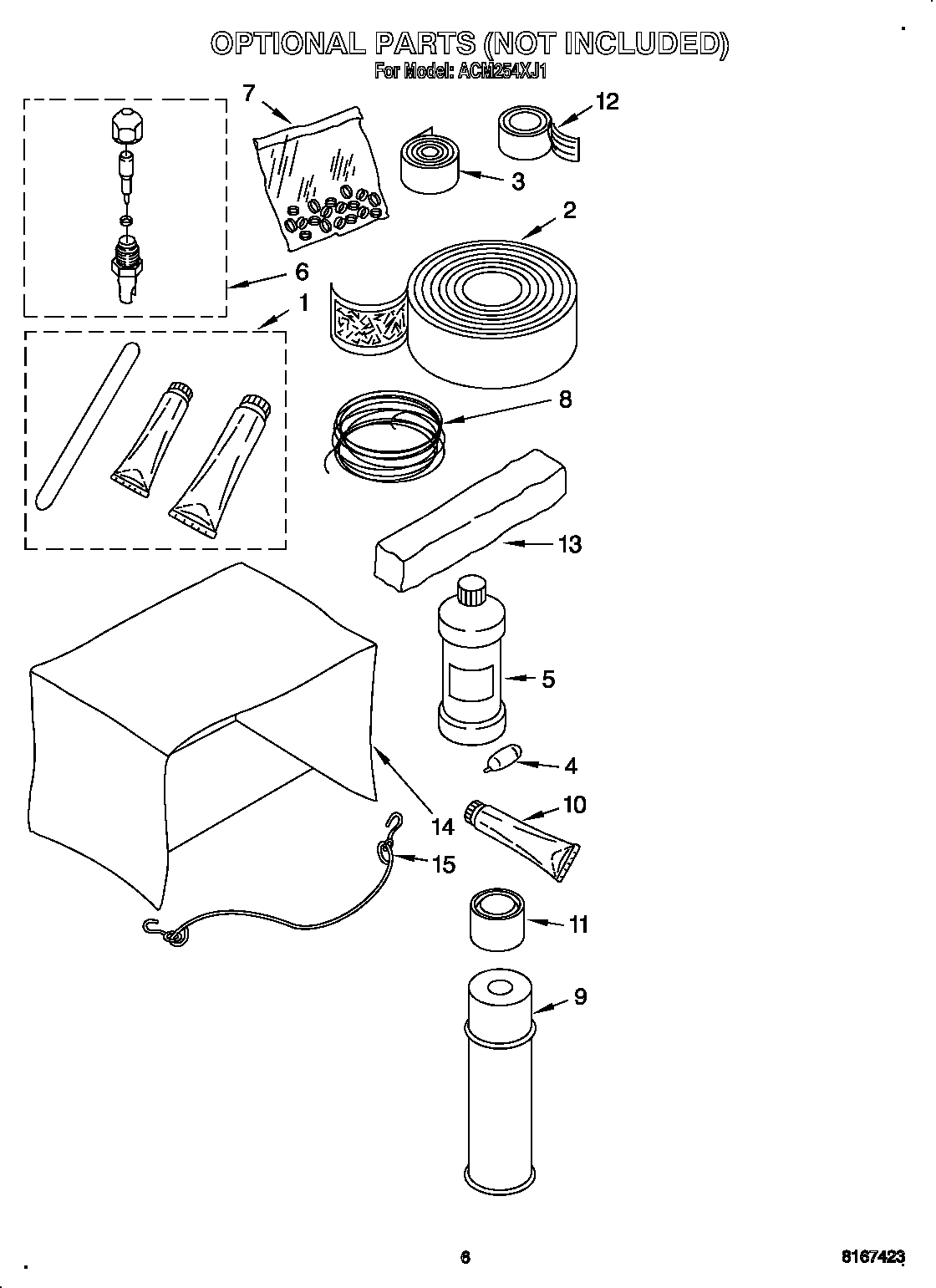

Optional Diagram

$48.13

In Stock

Clip, Shroud

#17

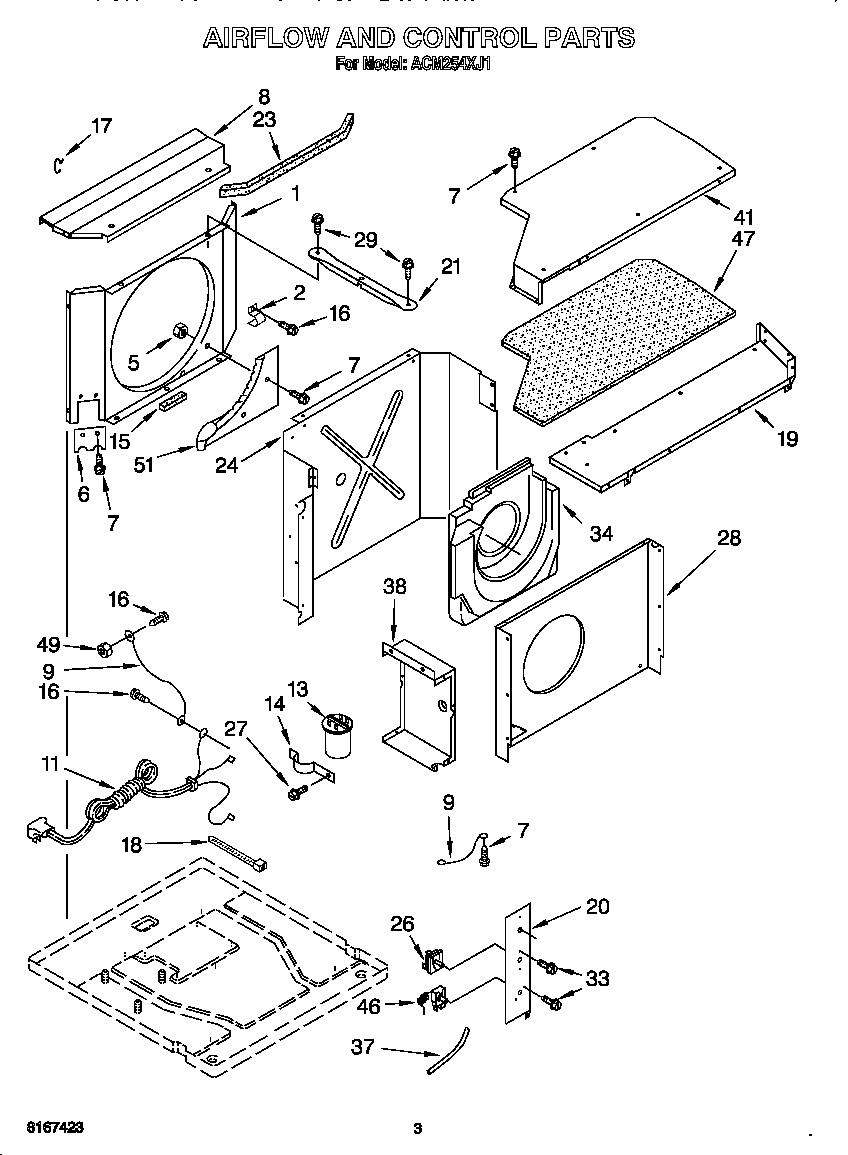

Airflow and control Diagram

Clip, shroud

Part #1164511
This item is not returnable

$4.20

In Stock

Louver

#24

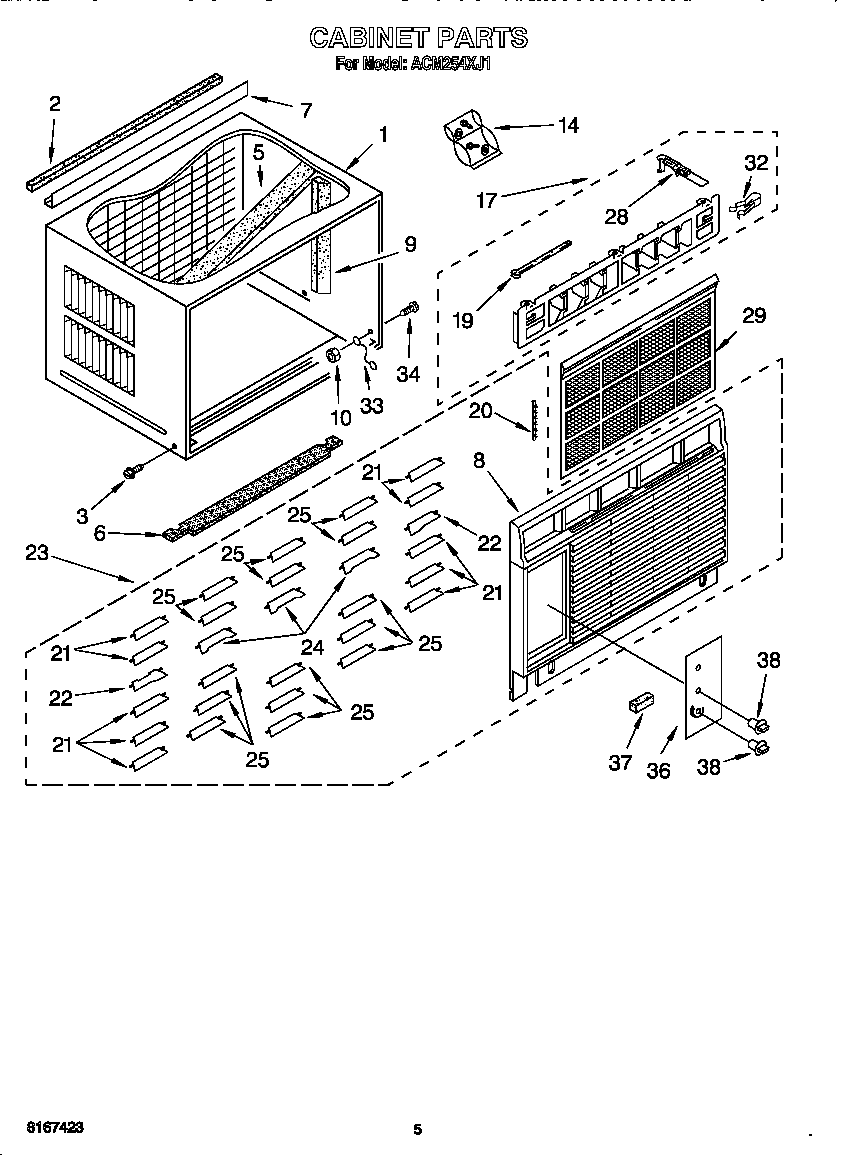

Cabinet Diagram

Louver

Part #1168494

$27.88

In Stock

Shroud Clip

#2

Airflow and control Diagram

Shroud clip

Part #1161248
This item is not returnable

$4.20

In Stock

Louver

#21

Cabinet Diagram

Louver

Part #1168493

$27.58

In Stock

Louver

#22

Cabinet Diagram

Louver

Part #1168492

$27.88

In Stock

Louver

#25

Cabinet Diagram

Louver

Part #1168495

$27.58

In Stock

Cabinet Support

#6

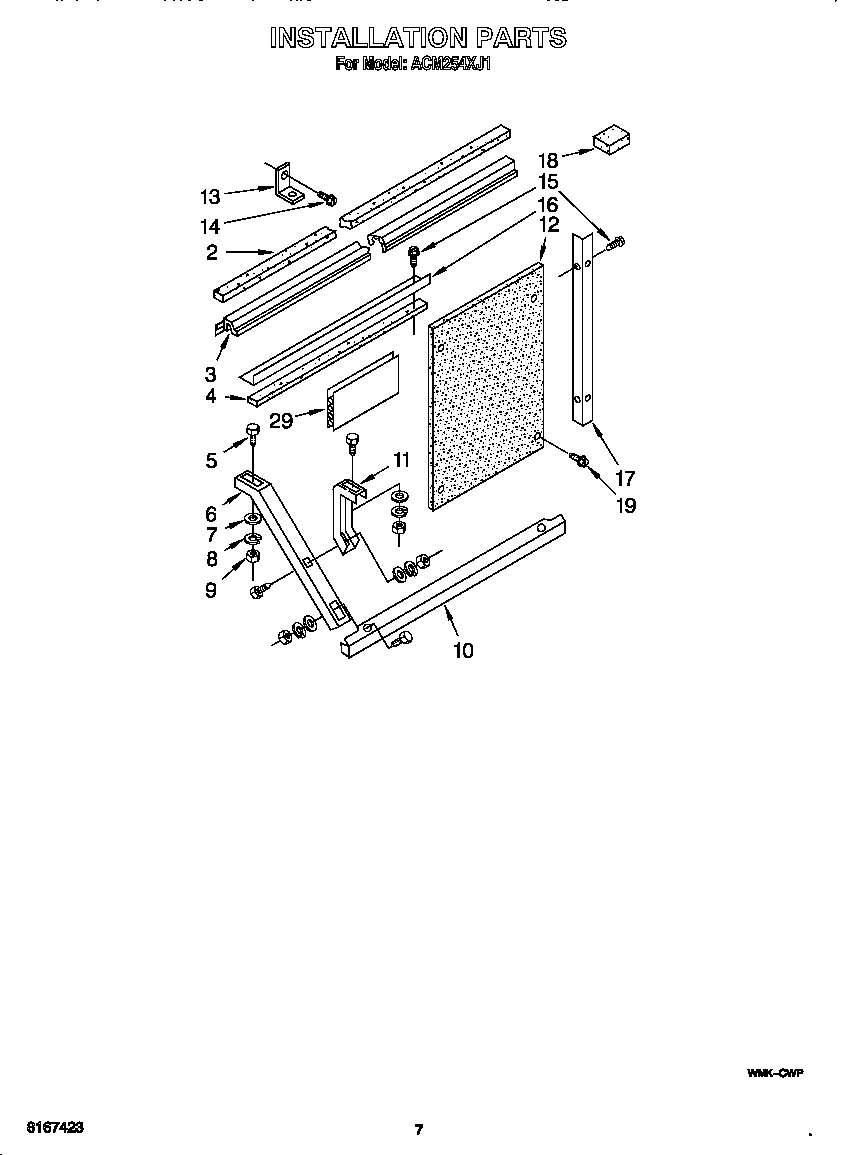

Installation Diagram

Cabinet support

Part #1168475

$27.59

In Stock

Appliance Screw

#7

Airflow and control Diagram

Appliance screw

Part #WP489069
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  488480
This part replaces 488480
This item is not returnable

$2.48

In Stock

Refrigerator Permagum Sealer

#12

Optional Diagram

Refrigerator permagum sealer

Part #212643
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  212643
This part replaces 212643

$18.87

In Stock
