Craftsman 536796501 30" lawn sweeper Parts

Here are the diagrams and repair parts for Craftsman 536796501 30" lawn sweeper, as well as links to manuals and error code tables, if available.

Craftsman 536796501 30" lawn sweeper
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for536796501 30" Lawn Sweeper

  • Nut for Craftsman 536796501 - Part 703251

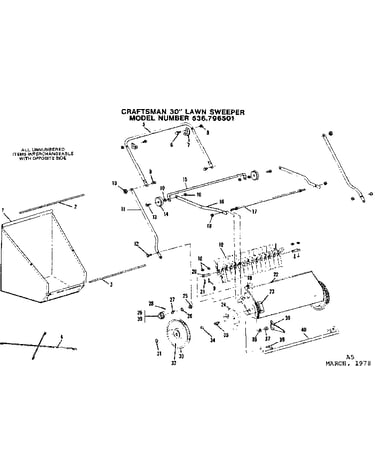

    Replacement parts diagram

    Lock Nut

    Part #9424215

    Replaced by #703251

    Info Icon
    Manufacturer substitution
    This part replaces 9424215. Substitute parts can look different from the original.
    In Stock
    $9.54
    Minus Item
    Qty
    Plus Item
  • Bracket for Craftsman 536796501 - Part 47716

    Replacement parts diagram

    Bracket

    Part #47716

    The manufacturer no longer makes this part, and there's no substitute part

  • Shoulder Washer for Craftsman 536796501 - Part 22048

    Replacement parts diagram

    Shoulder Washer

    Part #22048

    The manufacturer no longer makes this part, and there's no substitute part

  • Lock Nut for Craftsman 536796501 - Part 9413447

    Replacement parts diagram

    Lock Nut

    Part #9413447

    The manufacturer no longer makes this part, and there's no substitute part

  • Pawl Holder for Craftsman 536796501 - Part 4208

    Replacement parts diagram

    Pawl Holder

    Part #4208

    The manufacturer no longer makes this part, and there's no substitute part

  • Hex Head Screw for Craftsman 536796501 - Part 122027

    Replacement parts diagram

    Hex Head Screw

    Part #122027

    The manufacturer no longer makes this part, and there's no substitute part

  • Shield for Craftsman 536796501 - Part 48831

    Replacement parts diagram

    Shield

    Part #48831

    The manufacturer no longer makes this part, and there's no substitute part

  • Hex Head Screw for Craftsman 536796501 - Part 122022

    Replacement parts diagram

    Hex Head Screw

    Part #122022

    The manufacturer no longer makes this part, and there's no substitute part

  • Rivet for Craftsman 536796501 - Part 48861

    Replacement parts diagram

    Rivet

    Part #48861

    The manufacturer no longer makes this part, and there's no substitute part

  • Pinion Gear for Craftsman 536796501 - Part 20170

    Replacement parts diagram

    Pinion Gear

    Part #20170

    The manufacturer no longer makes this part, and there's no substitute part
