Model # 143161242 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143161242 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

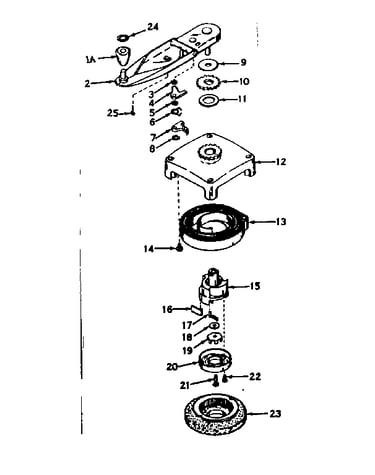

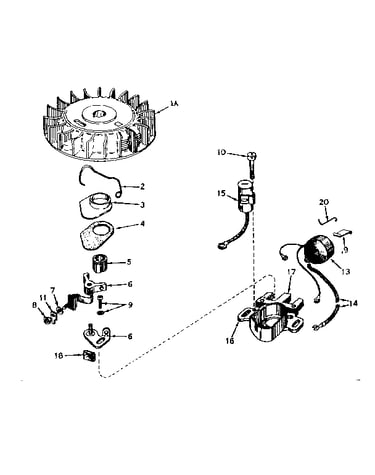

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |

Plug 30572
#28

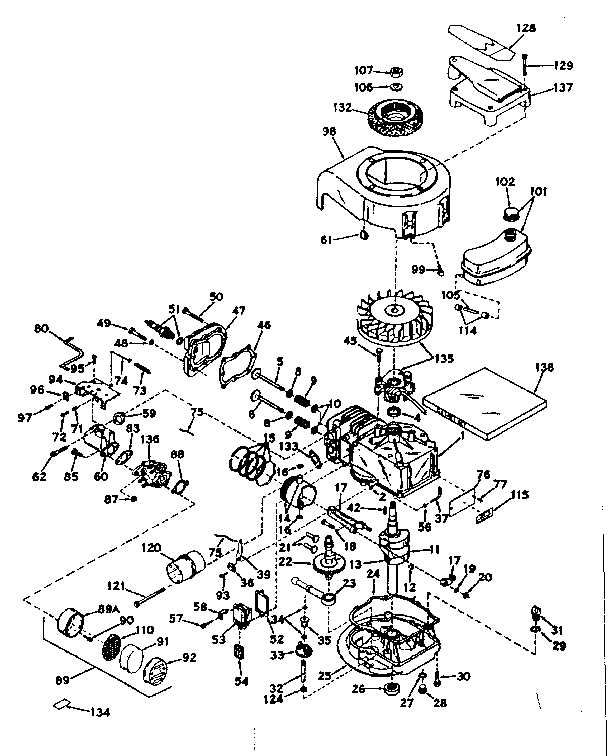

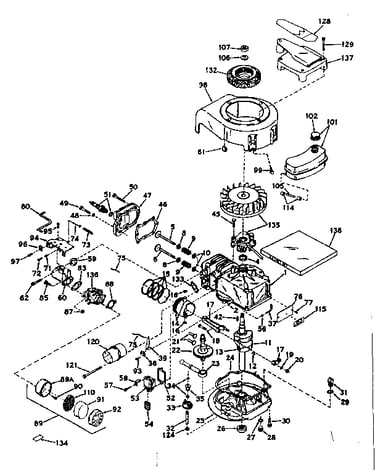

Basic engine diagram

Plug

Part #30572

The manufacturer no longer makes this part, and there's no substitute part

Fitting 631034
#16

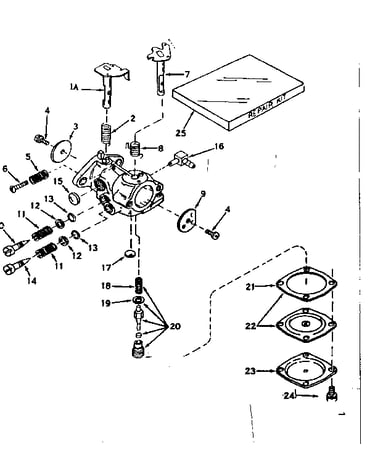

Carburetor diagram

Fitting

Part #631034

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#36

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Element 31410
#54

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

Carburetor diagram

Spring retainer

Part #630731

The manufacturer no longer makes this part, and there's no substitute part

Gasket 28833
#27

Basic engine diagram

Gasket

Part #28833

The manufacturer no longer makes this part, and there's no substitute part

Chmp J8 Plug 21943
#51

Basic engine diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part

/intke Valve 29314A
#5

Basic engine diagram

/intke valve

Part #29314A

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A
#35

Basic engine diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part

Spring 31672
#9

Basic engine diagram

Spring

Part #31672

The manufacturer no longer makes this part, and there's no substitute part
