Goodman
Central Air Conditioner

Model # GSC130301A Official Goodman split system air conditioner

Here are the diagrams and repair parts for Official Goodman GSC130301A split system air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Screw M0221641
#71

Compressor diagram

Screw

Part #M0221641

$7.74
In Stock
Goodman Lug-ground Small (4t) B1378533
#51

Control panel diagram

Goodman lug-ground small (4t)

Part #B1378533

This item is not returnable
$3.69
In Stock
Goodman Screw 10x1/2-b-bz B1393532
#NI

Control panel diagram

Goodman screw 10x1/2-b-bz

Part #B1393532

This item is not returnable
$2.16
In Stock
Grommet B1339530
#61

Compressor diagram

Grommet

Part #B1339530

This item is not returnable
$2.40
In Stock
Capacitor B94575500
#81

Control panel diagram

Capacitor

Part #B94575500

The manufacturer no longer makes this part, and there's no substitute part

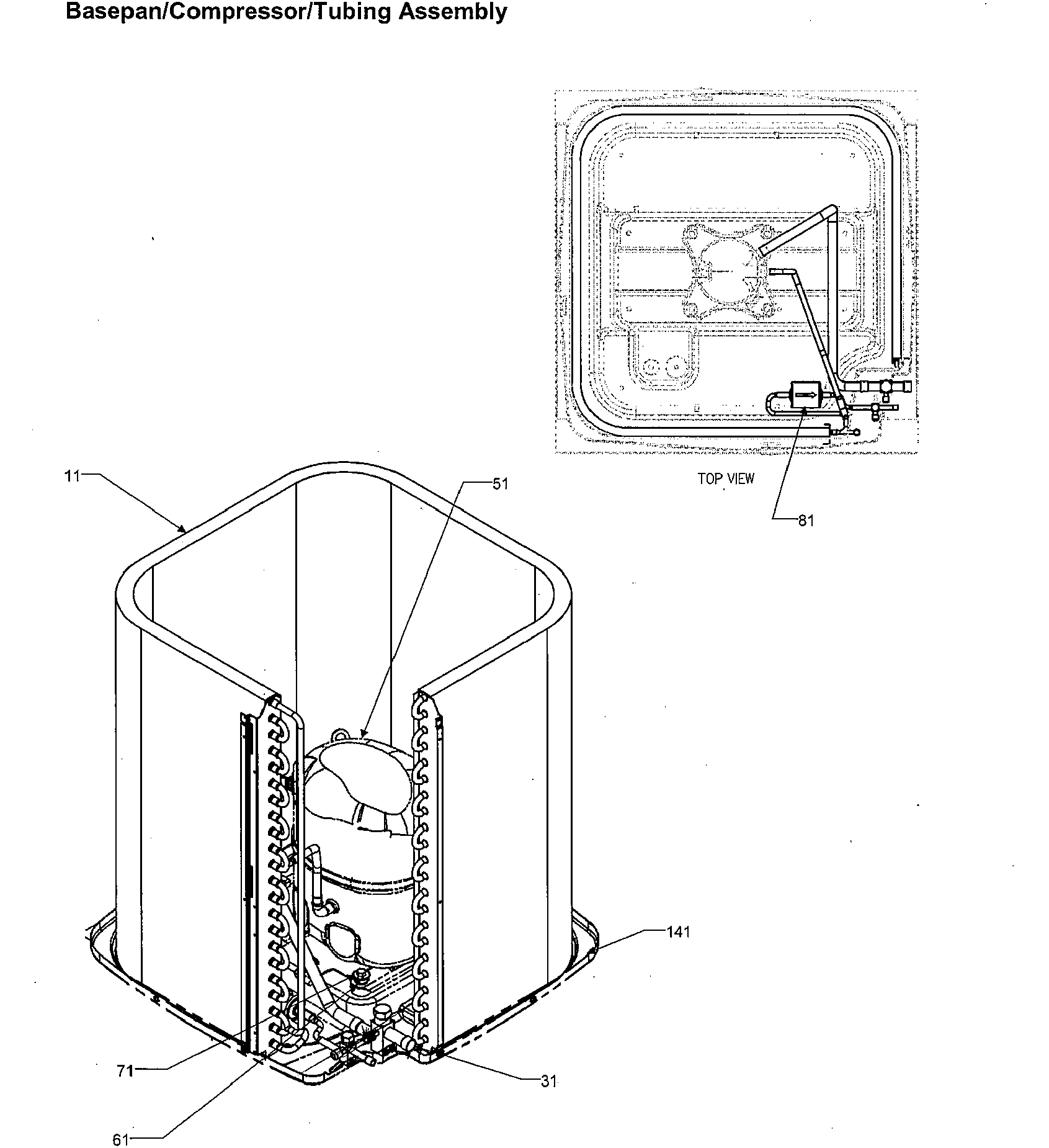

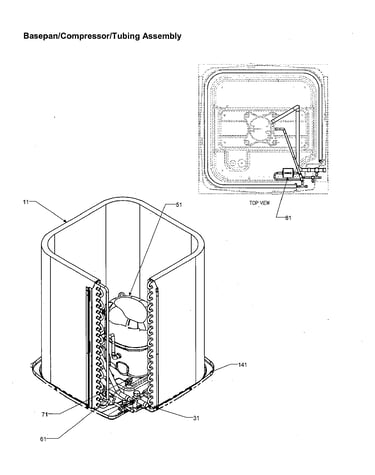

Valve 0151R00002P
#31

Compressor diagram

Valve

Part #0151R00002P

The manufacturer no longer makes this part, and there's no substitute part

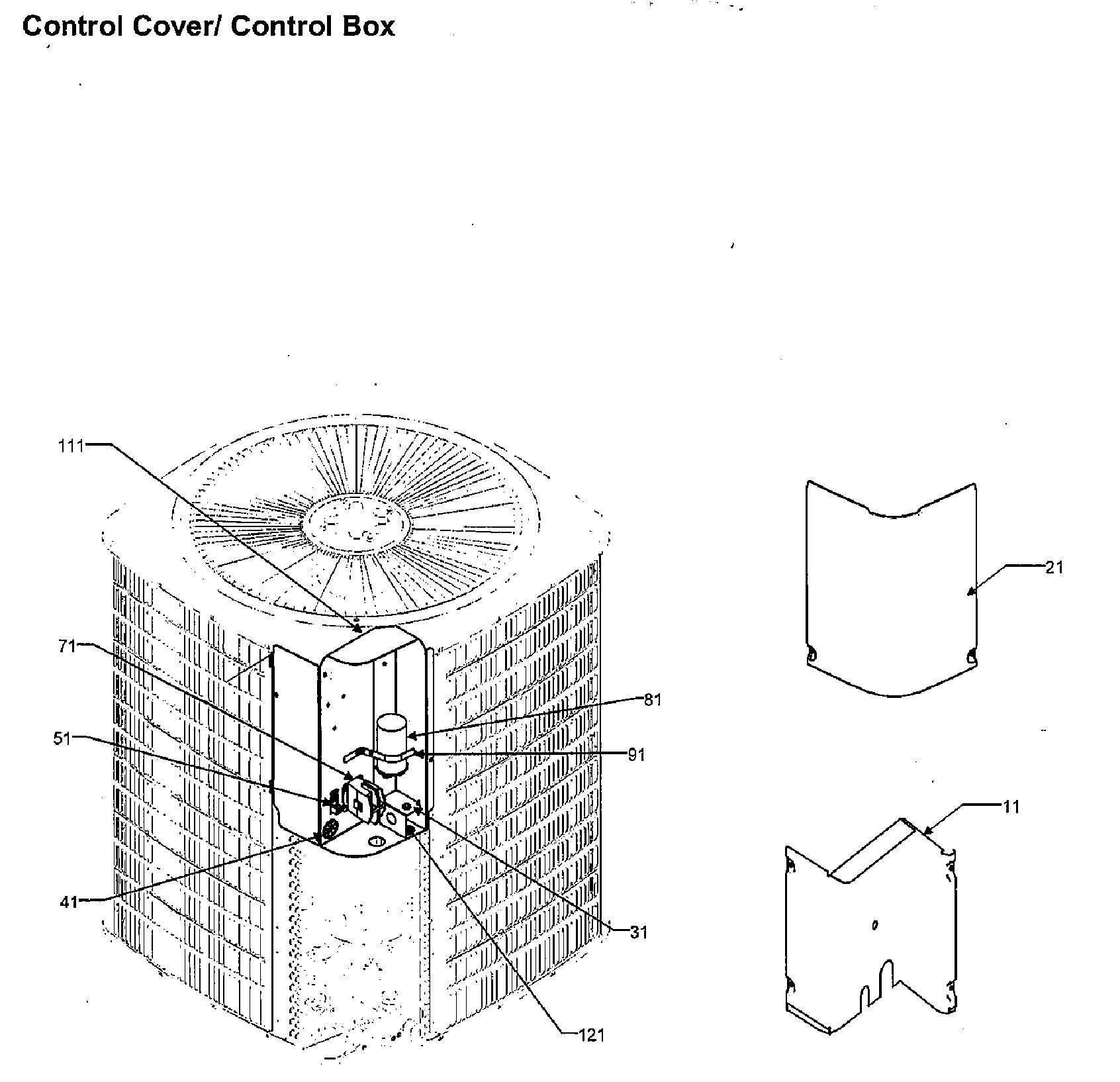

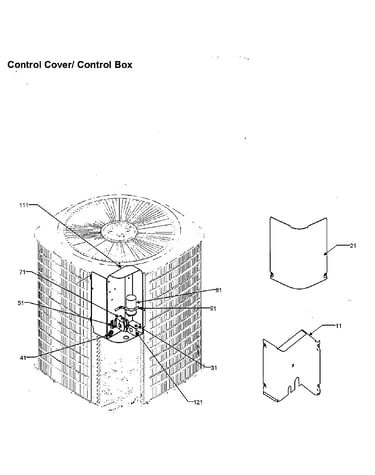

Panel Cntrl 4400015
#111

Control panel diagram

Panel cntrl

Part #4400015

The manufacturer no longer makes this part, and there's no substitute part

Wire Yellow W18203000161013
#NI

Control panel diagram

Wire yellow

Part #W18203000161013

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade- 4 Blade B1086764S
#51

Cabinet diagram

Fan blade- 4 blade

Part #B1086764S

The manufacturer no longer makes this part, and there's no substitute part

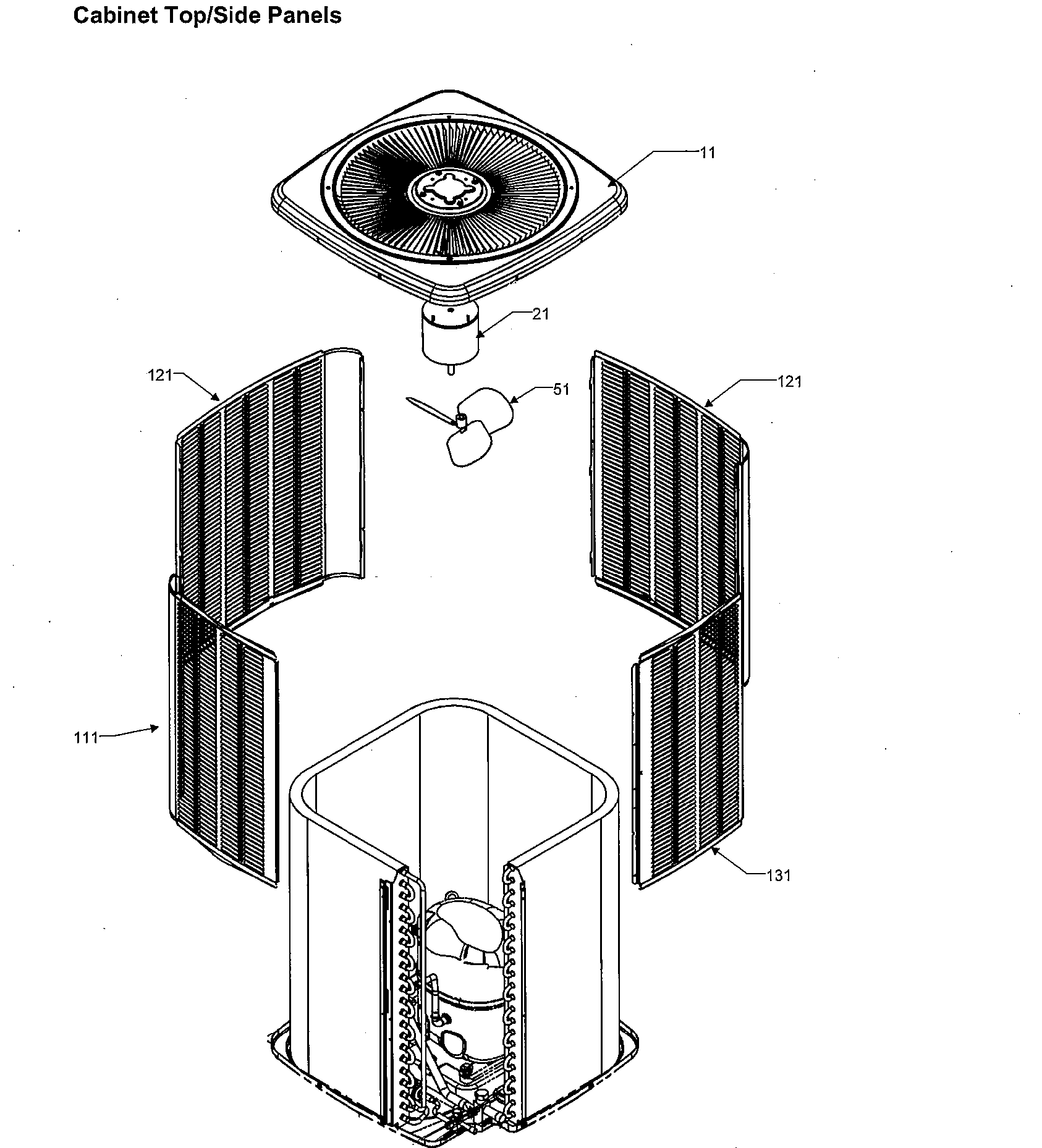

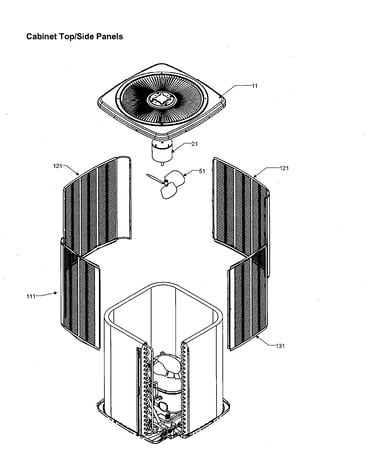

Side Panel 4400175PDG
#131

Cabinet diagram

Side panel

Part #4400175PDG

The manufacturer no longer makes this part, and there's no substitute part
