Model # 609212970 Official Sears kitchen faucet

Here are the diagrams and repair parts for Official Sears 609212970 kitchen faucet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |

Spray Head P11908
#12

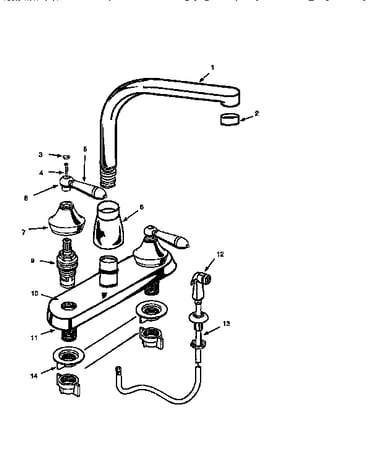

Unit parts diagram

Spray head

Part #P11908

The manufacturer no longer makes this part, and there's no substitute part

Spout Nut 12936
#8

Unit parts diagram

Spout nut

Part #12936

The manufacturer no longer makes this part, and there's no substitute part

Post P12885CH
#6

Unit parts diagram

Post

Part #P12885CH

The manufacturer no longer makes this part, and there's no substitute part

Button P12900CH
#3

Unit parts diagram

Button

Part #P12900CH

The manufacturer no longer makes this part, and there's no substitute part

Cartridge P10104H
#9

Unit parts diagram

Cartridge

Part #P10104H

The manufacturer no longer makes this part, and there's no substitute part

Cartridge P10105C
#9A

Unit parts diagram

Cartridge

Part #P10105C

The manufacturer no longer makes this part, and there's no substitute part

Pipe Plug P9671

#NI

All parts diagram

Pipe plug

Part #P9671

The manufacturer no longer makes this part, and there's no substitute part

Shield P12059
#11

Unit parts diagram

Shield

Part #P12059

The manufacturer no longer makes this part, and there's no substitute part

High Spout P12523CH
#1

Unit parts diagram

High spout

Part #P12523CH

The manufacturer no longer makes this part, and there's no substitute part

Aerator P10757
#2

Unit parts diagram

Aerator

Part #P10757

The manufacturer no longer makes this part, and there's no substitute part
