Nordyne
Central Air Conditioner

Model # T3QA024A Official Nordyne heat pump

Here are the diagrams and repair parts for Official Nordyne T3QA024A heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

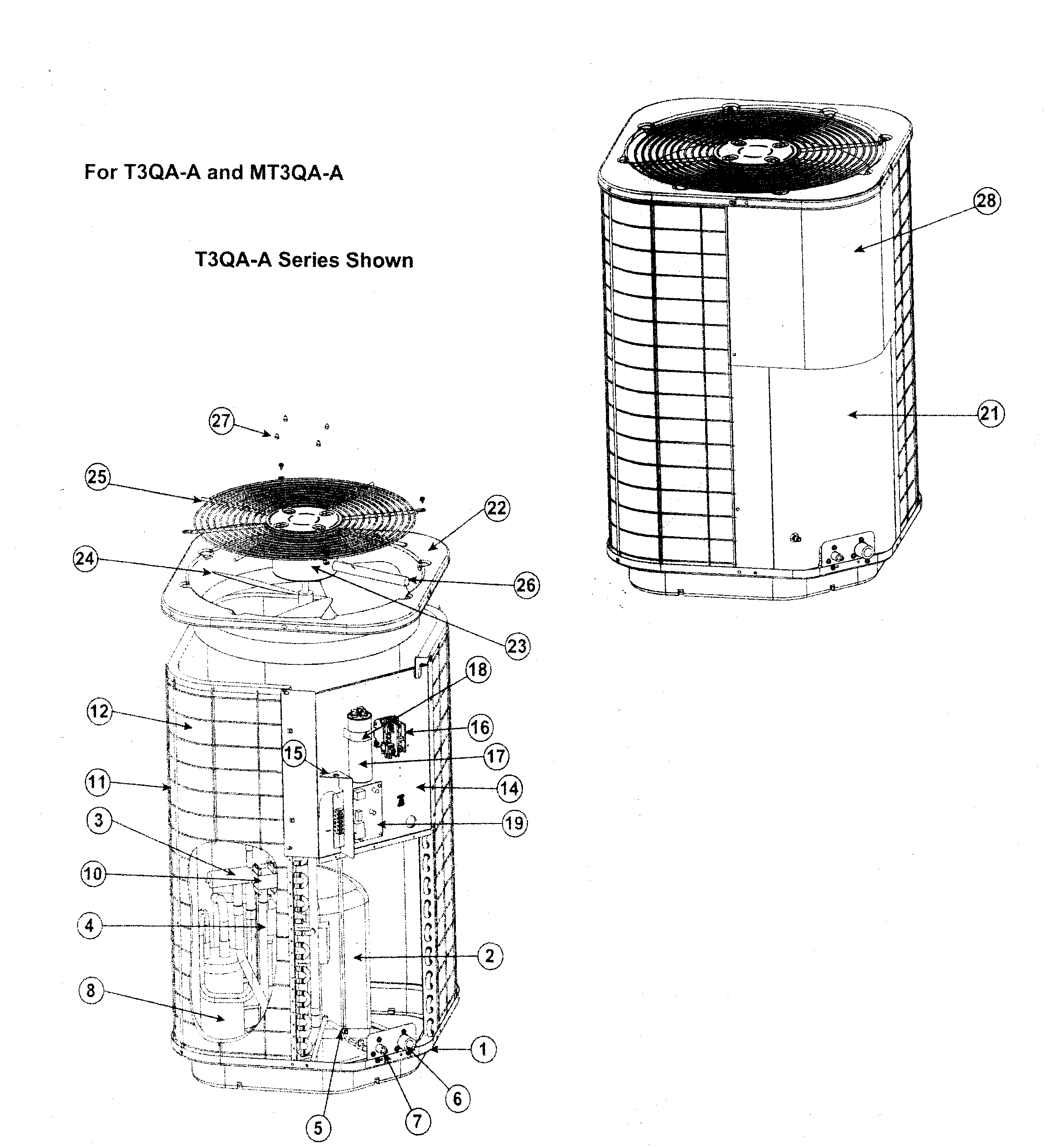

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Central Air Conditioner Dual-motor Run Capacitor 620777
#17

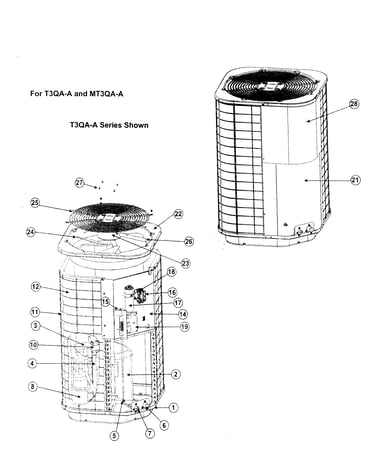

Heat pump diagram

Central air conditioner dual-motor run capacitor

Part #620777

The manufacturer no longer makes this part, and there's no substitute part

Nut 606260
#27

Heat pump diagram

Nut

Part #606260

The manufacturer no longer makes this part, and there's no substitute part

Accumulatr 668793
#8

Heat pump diagram

Accumulatr

Part #668793

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 626520
#NI

Heat pump diagram

Thermostat

Part #626520

The manufacturer no longer makes this part, and there's no substitute part

Top Pan 496161
#22

Heat pump diagram

Top pan

Part #496161

The manufacturer no longer makes this part, and there's no substitute part

Def Sensor 626491
#NI

Heat pump diagram

Def sensor

Part #626491

The manufacturer no longer makes this part, and there's no substitute part

Guard Kit 917206
#NI

Heat pump diagram

Guard kit

Part #917206

The manufacturer no longer makes this part, and there's no substitute part

Grill Fan 669201
#25

Heat pump diagram

Grill fan

Part #669201

The manufacturer no longer makes this part, and there's no substitute part

Coupling 663781
#7

Heat pump diagram

Coupling

Part #663781

The manufacturer no longer makes this part, and there's no substitute part

Compressor 912956
#2

Heat pump diagram

Compressor

Part #912956

The manufacturer no longer makes this part, and there's no substitute part
