Model # 4KFPM770NK1 Official KitchenAid food processor

Here are the diagrams and repair parts for Official KitchenAid 4KFPM770NK1 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 46 parts |

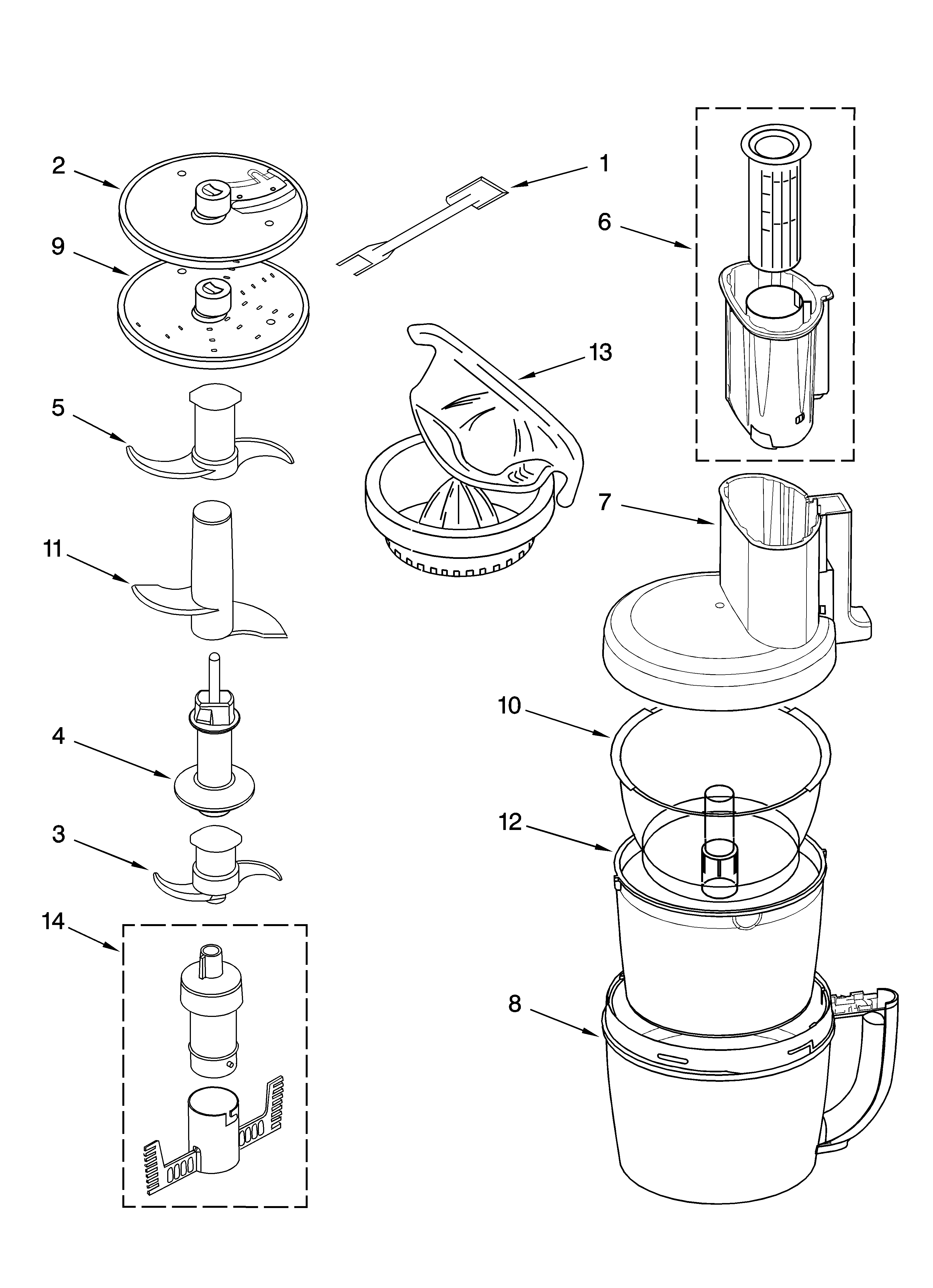

Attachment parts diagram

Food processor scraper

Part #8211760

$25.79 |

16% OFF Phone Price : $30.79

In Stock

Qty

#1A

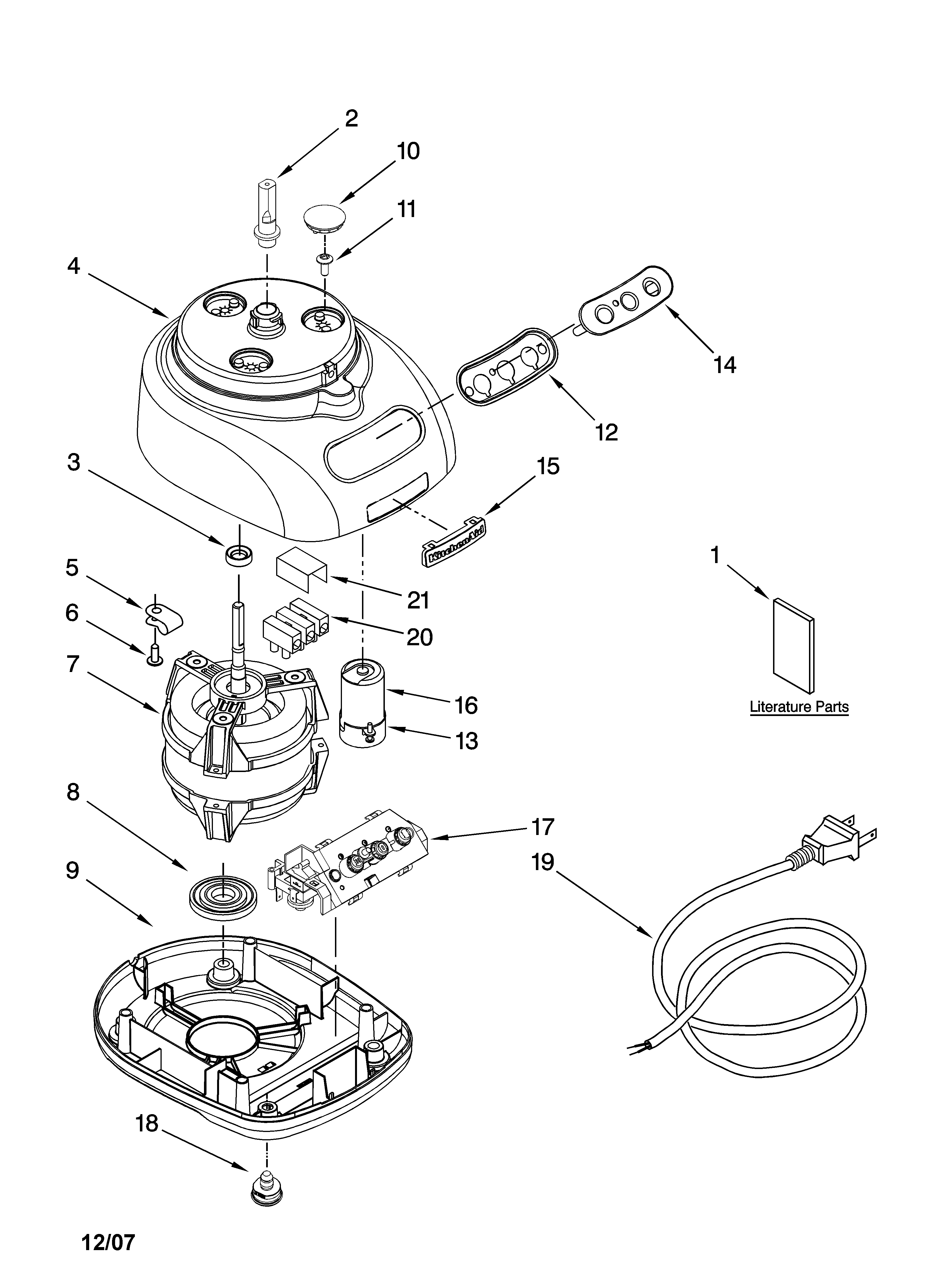

Motor and housing parts diagram

Parts list

Part #W10162489

This item is not returnable

$4.55

In Stock

Qty

Food Processor 3-prong Power Cord (black) 8211857

#19

Motor and housing parts diagram

Food processor 3-prong power cord (black)

Part #8211857

$39.29

In Stock

Qty

Motor and housing parts diagram

Clamp

Part #8211610

Replaced by #2185825

$29.89

In Stock

Qty

Attachment parts diagram

Pusher

Part #8212020

The manufacturer no longer makes this part, and there's no substitute part

Motor and housing parts diagram

Sleeve shaft

Part #8211849

The manufacturer no longer makes this part, and there's no substitute part

Attachment parts diagram

Disc slicer

Part #8211929

The manufacturer no longer makes this part, and there's no substitute part

#11

Attachment parts diagram

Blade

Part #8212016

The manufacturer no longer makes this part, and there's no substitute part

#NI

Attachment parts diagram

Rack-disc

Part #8211938

The manufacturer no longer makes this part, and there's no substitute part

#NI

Attachment parts diagram

Food processor mini bowl lid

Part #8211927

The manufacturer no longer makes this part, and there's no substitute part
