Admiral (Kelon) AAW-24DR3FHU air conditioner Parts
Here are the diagrams and repair parts for Admiral (Kelon) AAW-24DR3FHU air conditioner, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for AAW-24DR3FHU Air Conditioner

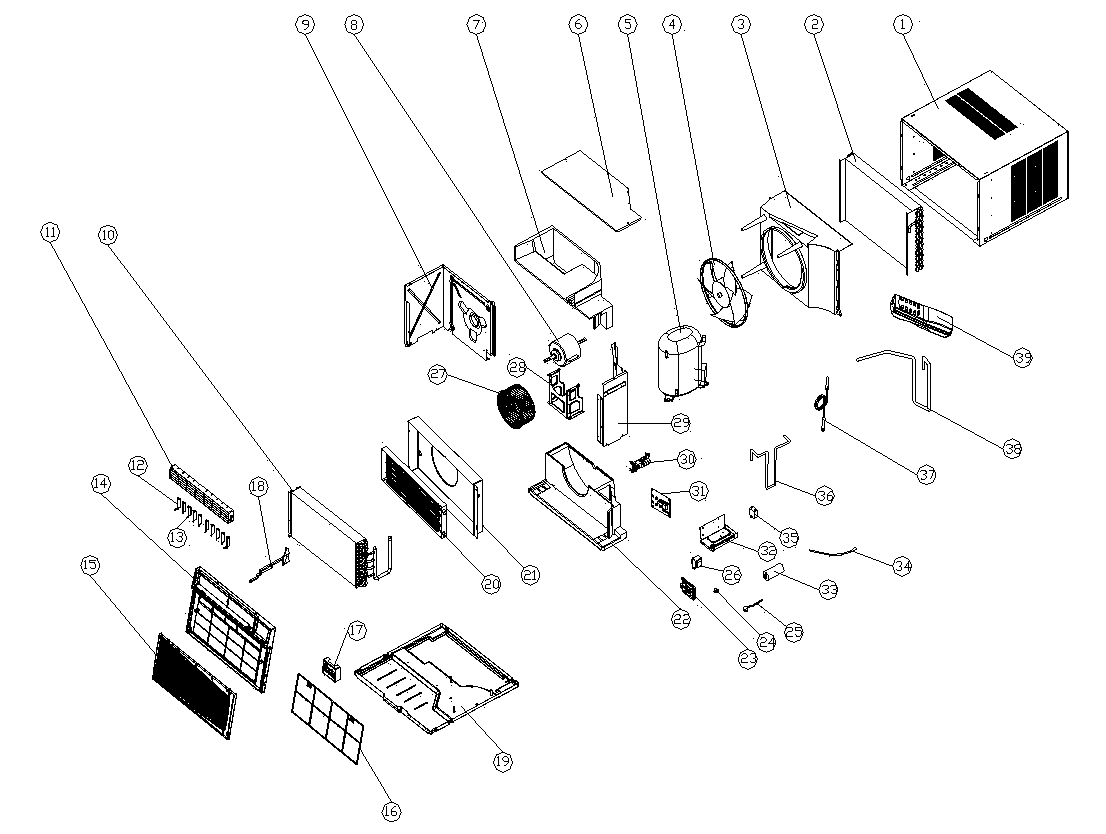

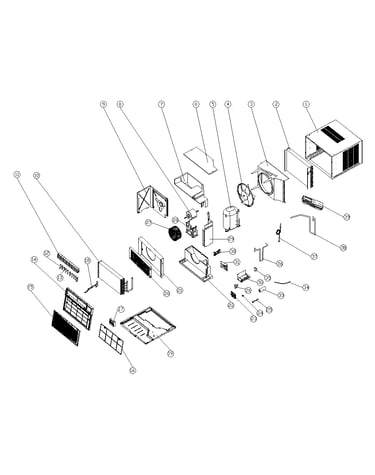

Cabinet parts diagram
Hisense Power Pcb
Part #81409626
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Indicator Head Support
Part #81408277
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Chassis
Part #81002188
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Vert.vane
Part #8120153
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Suction Pipe
Part #813032658
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Fan
Part #81011114
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Discharge
Part #813032657
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Transformer
Part #8140513
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Thermistor
Part #814071
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Compressor
Part #1304469
The manufacturer no longer makes this part, and there's no substitute part
