Model # DEVILLE 700 Official Smith Corona word processor

Here are the diagrams and repair parts for Official Smith Corona DEVILLE-700 word processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

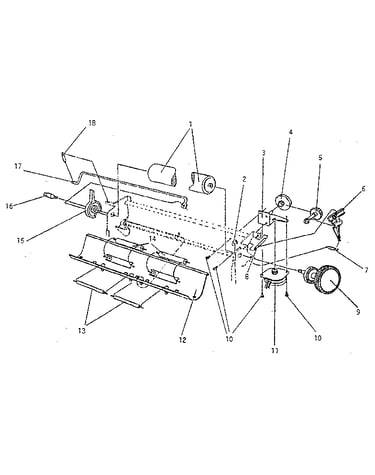

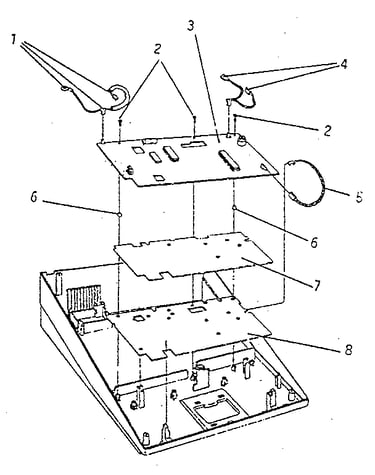

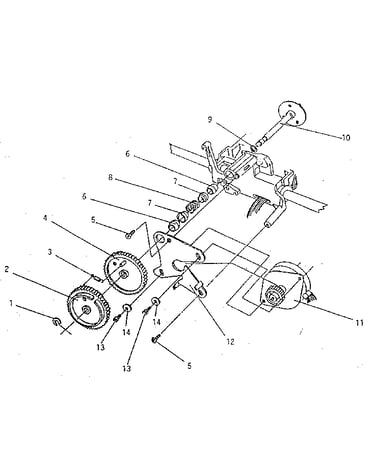

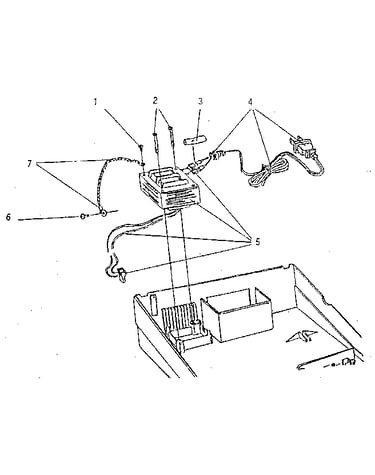

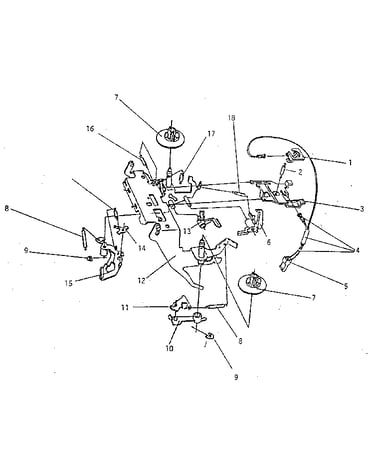

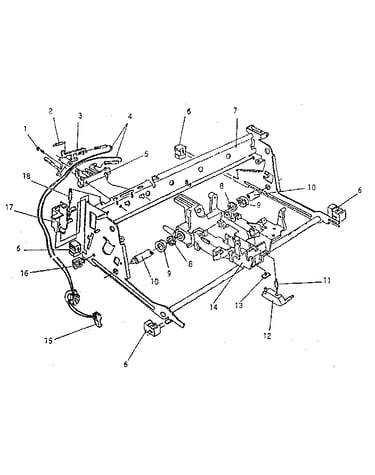

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 232 parts  |
Rtrn Bail 778280
#3

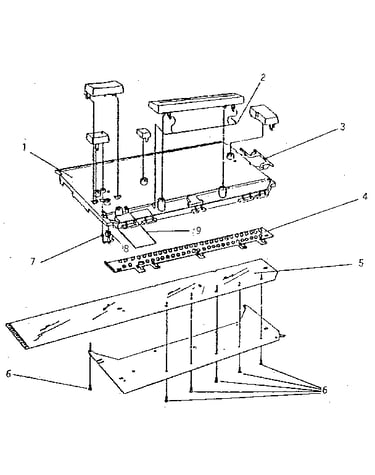

Keyboard diagram

Rtrn bail

Part #778280

The manufacturer no longer makes this part, and there's no substitute part

Connector 751057
Connector

Part #751057

The manufacturer no longer makes this part, and there's no substitute part

Keybutton,p 778424
#25

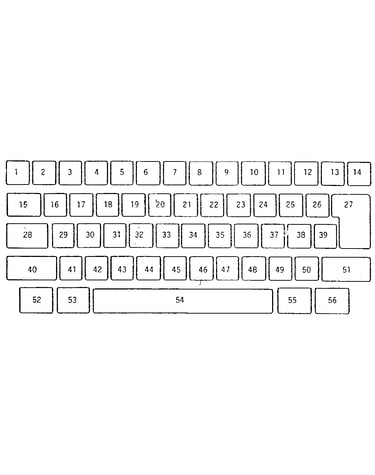

Keybutton reference chart diagram

Keybutton,p

Part #778424

The manufacturer no longer makes this part, and there's no substitute part

Screw 770672
#11

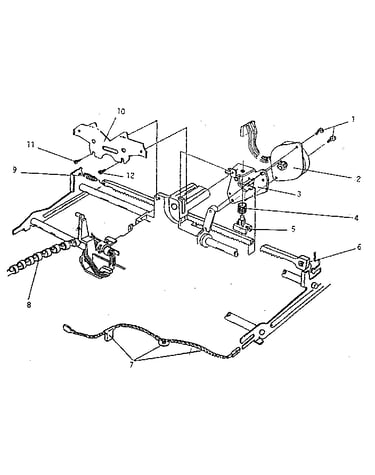

Carrier drive diagram

Screw

Part #770672

The manufacturer no longer makes this part, and there's no substitute part

Spring 771464
#16

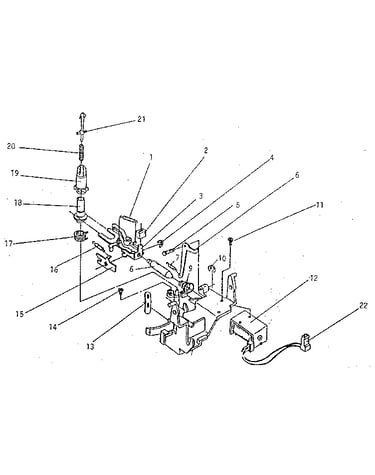

Ribbon drive diagram

Spring

Part #771464

The manufacturer no longer makes this part, and there's no substitute part

Device Ring Optical 748562
#18

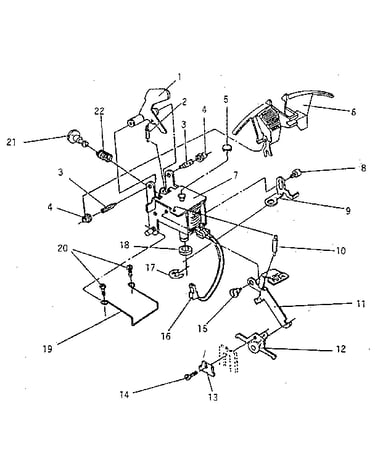

Hammer diagram

Device ring optical

Part #748562

The manufacturer no longer makes this part, and there's no substitute part

Key Button 778681
#9

Keybutton reference chart diagram

Key button

Part #778681

The manufacturer no longer makes this part, and there's no substitute part

Pan Base 783011
#7A

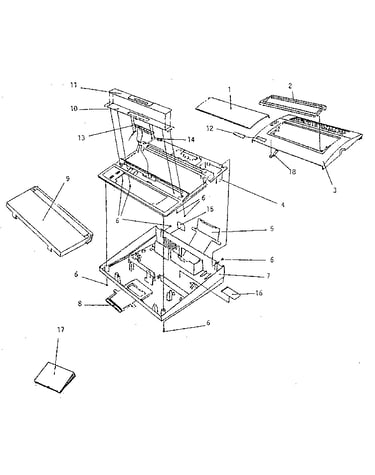

Jackets diagram

Pan base

Part #783011

The manufacturer no longer makes this part, and there's no substitute part

Keybutton,2 778578
#3

Keybutton reference chart diagram

Keybutton,2

Part #778578

The manufacturer no longer makes this part, and there's no substitute part

Guide 771836
#6

Hammer diagram

Guide

Part #771836

The manufacturer no longer makes this part, and there's no substitute part
