Amana GUX090X50B/P1207805F gas furnace Parts
Here are the diagrams and repair parts for Amana GUX090X50B/P1207805F gas furnace, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for GUX090X50B/P1207805F Gas Furnace

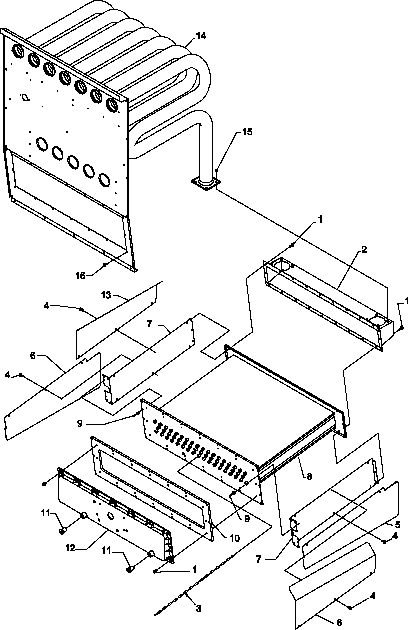

Heat exchanger and manifold assembly diagram
Gasket, Part Panel
Part #11066201
The manufacturer no longer makes this part, and there's no substitute part

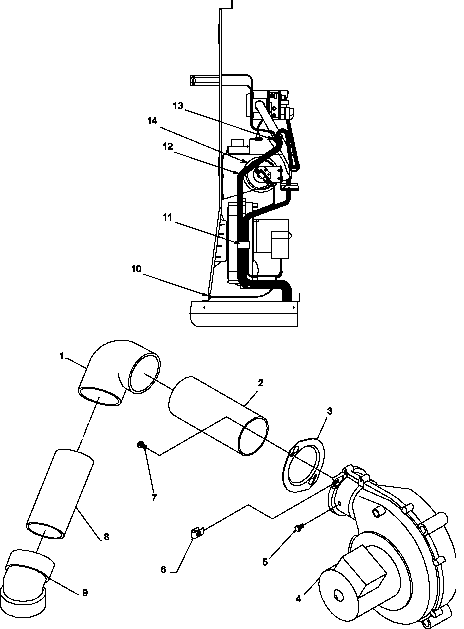

Pressure controls diagram
Pipe, Pvc
Part #B1370921
The manufacturer no longer makes this part, and there's no substitute part

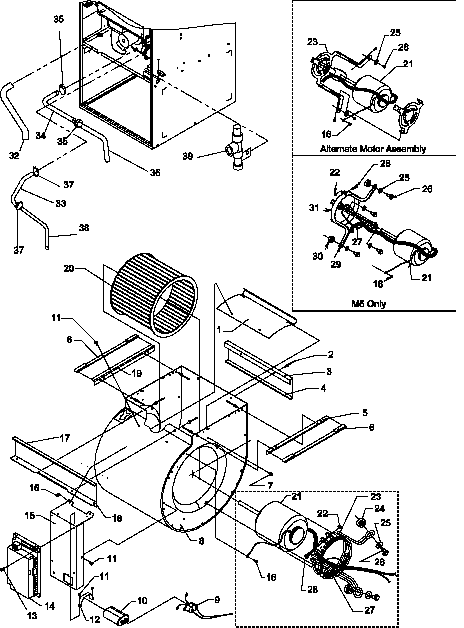

Blower assembly and drain tubes diagram
Motor Bracket
Part #C9443701
The manufacturer no longer makes this part, and there's no substitute part

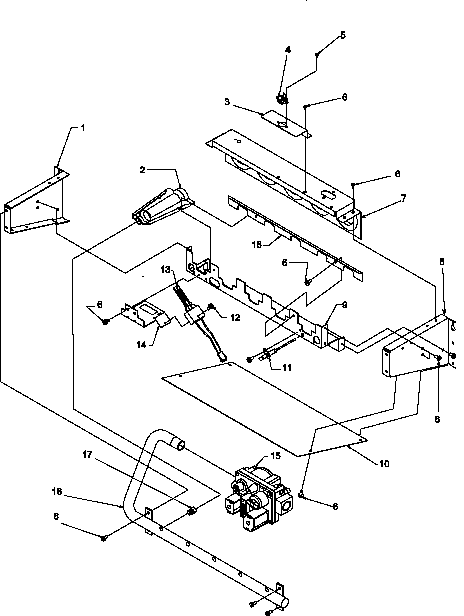

Manifold assembly diagram
Igniter
Part #11111701
The manufacturer no longer makes this part, and there's no substitute part
Blower assembly and drain tubes diagram
Boot Capacitor
Part #A3375801
The manufacturer no longer makes this part, and there's no substitute part

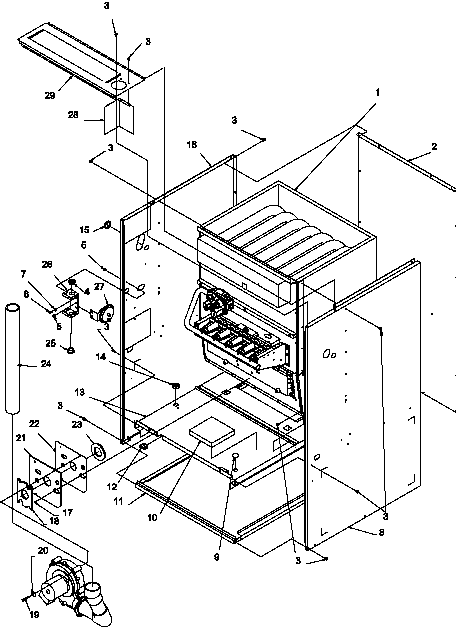

Cabinet assembly diagram
Furnace Blower Deck Weld
Part #10204311
The manufacturer no longer makes this part, and there's no substitute part
Manifold assembly diagram
Limit Switch-reset Manual
Part #10123503
The manufacturer no longer makes this part, and there's no substitute part

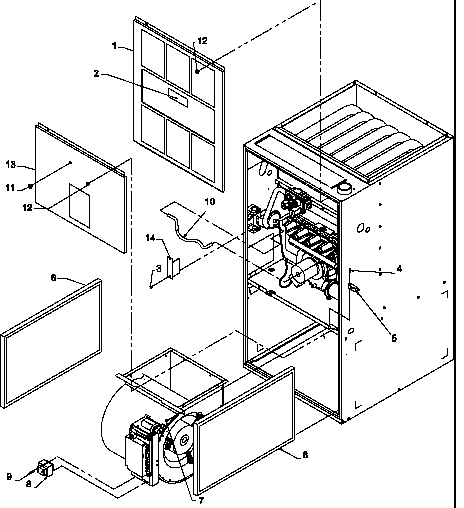

Cabinet assembly diagram
Screw
Part #M0227803
The manufacturer no longer makes this part, and there's no substitute part
Turbulator
Part #11086001
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assembly diagram
Back Panel
Part #D9965704
The manufacturer no longer makes this part, and there's no substitute part
