Model # 934205591 Official Craftsman mig welder

Here are the diagrams and repair parts for Official Craftsman 934205591 mig welder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Nozzle 43480
#35

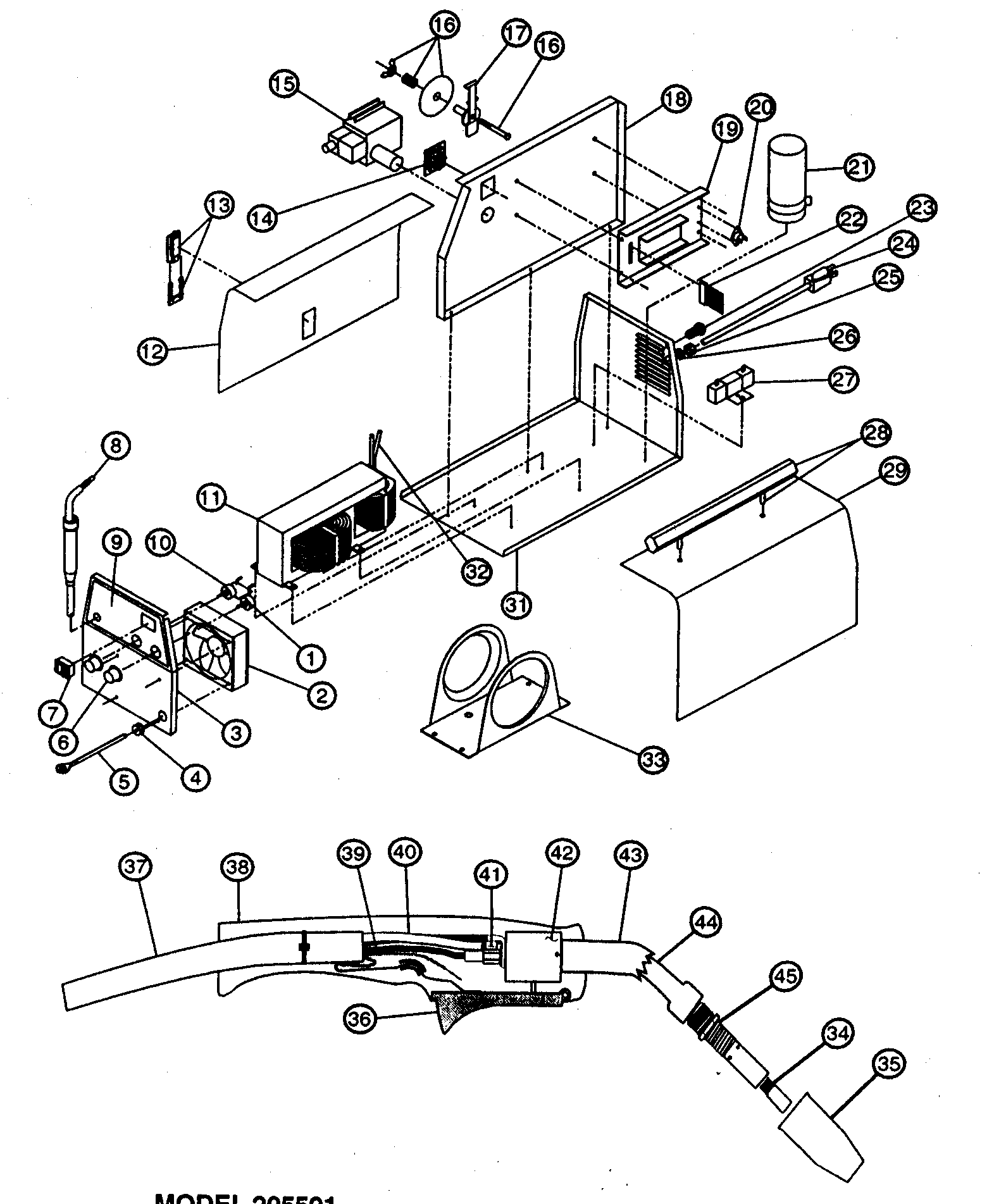

Welder diagram

Nozzle

Part #43480

The manufacturer no longer makes this part, and there's no substitute part

Roller 880-427-666
#NI

Welder diagram

Roller

Part #880-427-666

The manufacturer no longer makes this part, and there's no substitute part

Diffuser 334-494-666
#45

Welder diagram

Diffuser

Part #334-494-666

The manufacturer no longer makes this part, and there's no substitute part

Bracket 412-635-010
#33

Welder diagram

Bracket

Part #412-635-010

The manufacturer no longer makes this part, and there's no substitute part

Welder Wire Liner 334-468-666
#40

Welder diagram

Welder wire liner

Part #334-468-666

The manufacturer no longer makes this part, and there's no substitute part

Base 880-431-000
#31

Welder diagram

Base

Part #880-431-000

The manufacturer no longer makes this part, and there's no substitute part

Thermal Protector 880-426-666
#32

Welder diagram

Thermal protector

Part #880-426-666

The manufacturer no longer makes this part, and there's no substitute part

Control 880-569-666
#10

Welder diagram

Control

Part #880-569-666

The manufacturer no longer makes this part, and there's no substitute part

Cable 238-223-666
#5

Welder diagram

Cable

Part #238-223-666

The manufacturer no longer makes this part, and there's no substitute part

Fitting 253-333-666
#23

Welder diagram

Fitting

Part #253-333-666

The manufacturer no longer makes this part, and there's no substitute part
