Model # STR-V444ES Official Sony audio receiver

Here are the diagrams and repair parts for Official Sony STR-V444ES audio receiver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Resistor 124939311
#NI

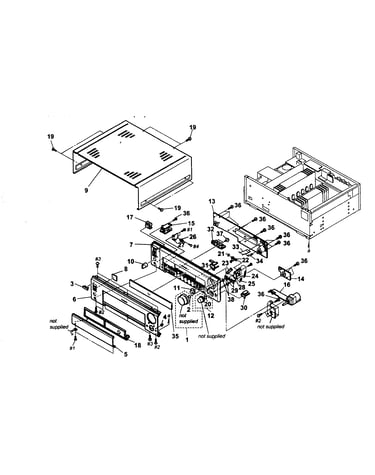

Cabinet parts diagram

Resistor

Part #124939311

The manufacturer no longer makes this part, and there's no substitute part

Panel(e5) 422881311
#6

Cabinet parts diagram

Panel(e5)

Part #422881311

The manufacturer no longer makes this part, and there's no substitute part

Antenna, Loo 150137411
#NI

Cabinet parts diagram

Antenna, loo

Part #150137411

The manufacturer no longer makes this part, and there's no substitute part

Dc Board A4473454A
#58

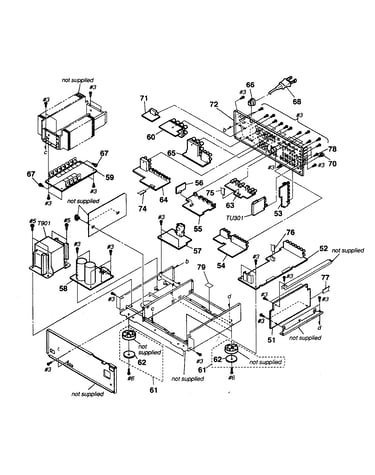

Pcb assy diagram

Dc board

Part #A4473454A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875967230
#NI

Cabinet parts diagram

Integrated circuit

Part #875967230

The manufacturer no longer makes this part, and there's no substitute part

Fuse 153331211
#NI

Cabinet parts diagram

Fuse

Part #153331211

The manufacturer no longer makes this part, and there's no substitute part

Transformer 143544811
#T901

Pcb assy diagram

Transformer

Part #143544811

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 875946208
#NI

Cabinet parts diagram

Integrated circuit

Part #875946208

The manufacturer no longer makes this part, and there's no substitute part

Flat Cable 176993911
#74

Pcb assy diagram

Flat cable

Part #176993911

The manufacturer no longer makes this part, and there's no substitute part

Spring 335042601
#2

Cabinet parts diagram

Spring

Part #335042601

The manufacturer no longer makes this part, and there's no substitute part
