Amana AAC101SRA-PAAC101SRA0 room air conditioner Parts

Here are the diagrams and repair parts for Amana AAC101SRA-PAAC101SRA0 room air conditioner, as well as links to manuals and error code tables, if available.

Amana AAC101SRA-PAAC101SRA0 room air conditioner
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAAC101SRA-PAAC101SRA0 Room Air Conditioner

  • Knob, Vent for Amana AAC101SRA-PAAC101SRA0 - Part R0130158

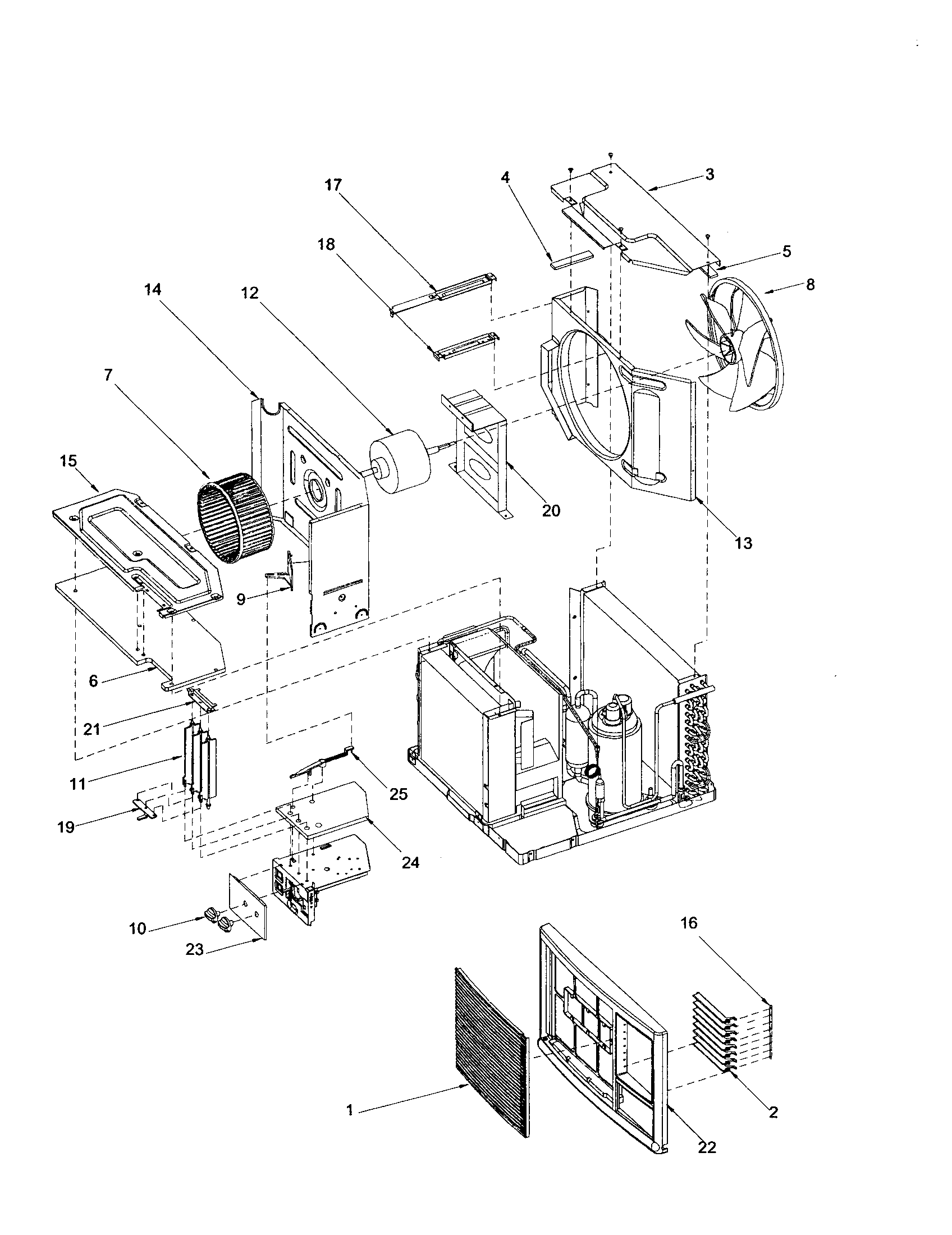

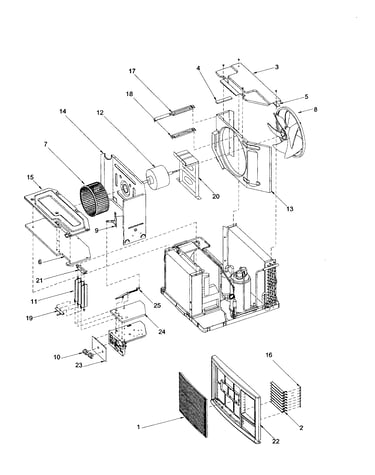

    Chassis assembly diagram

    Knob, Vent

    Part #R0130158

    The manufacturer no longer makes this part, and there's no substitute part

  • Compressor Grommet for Amana AAC101SRA-PAAC101SRA0 - Part R0130177

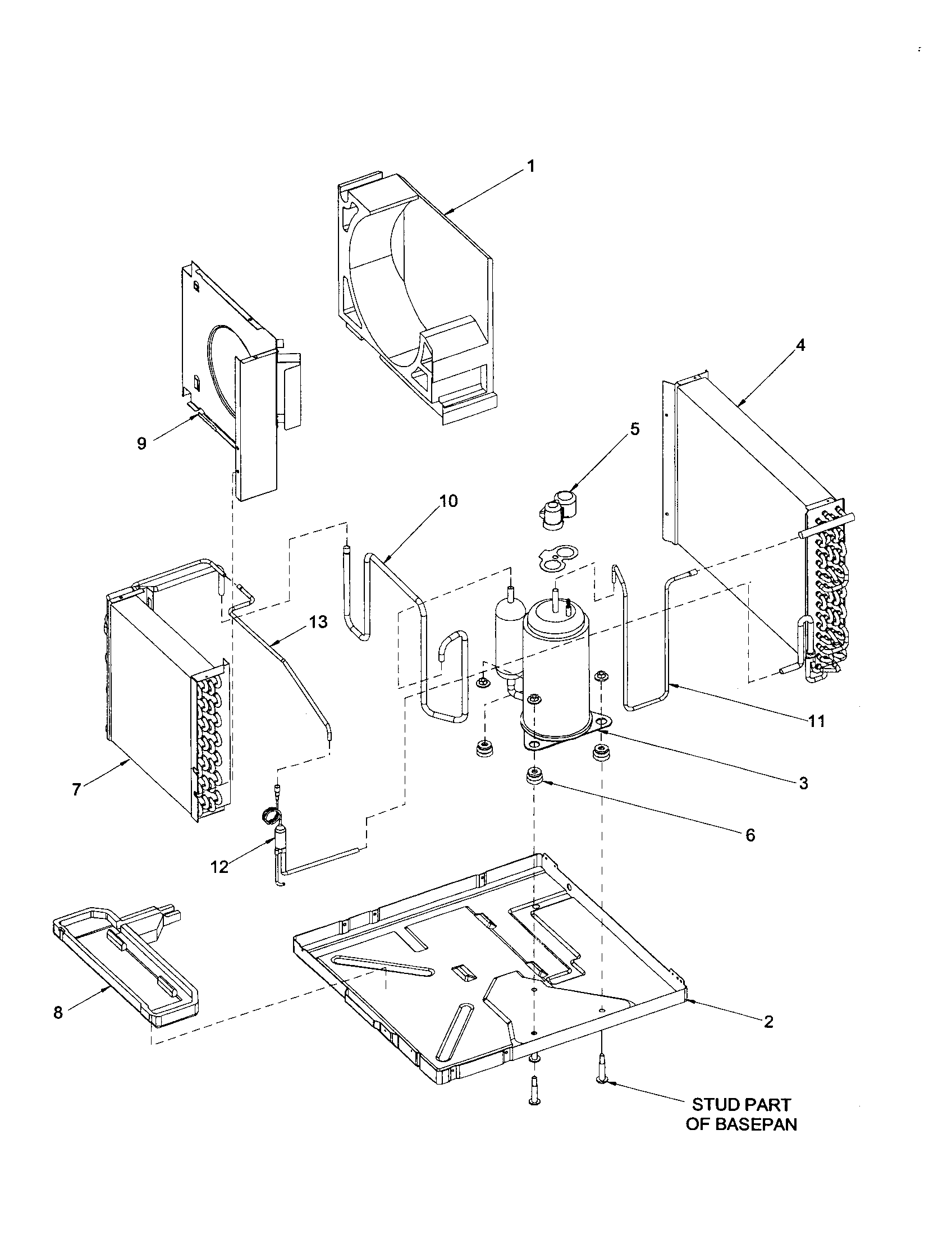

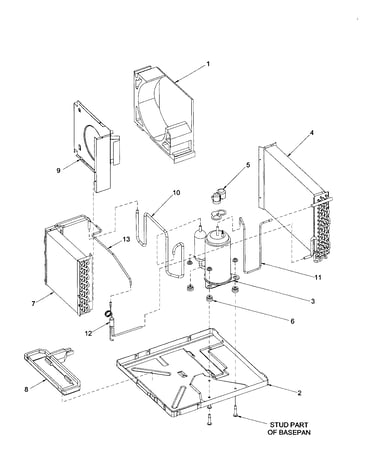

    Compressor diagram

    Compressor Grommet

    Part #R0130177

    The manufacturer no longer makes this part, and there's no substitute part

  • Front for Amana AAC101SRA-PAAC101SRA0 - Part R0130163

    Chassis assembly diagram

    Front

    Part #R0130163

    The manufacturer no longer makes this part, and there's no substitute part

  • Tape Per Rol for Amana AAC101SRA-PAAC101SRA0 - Part M0275163

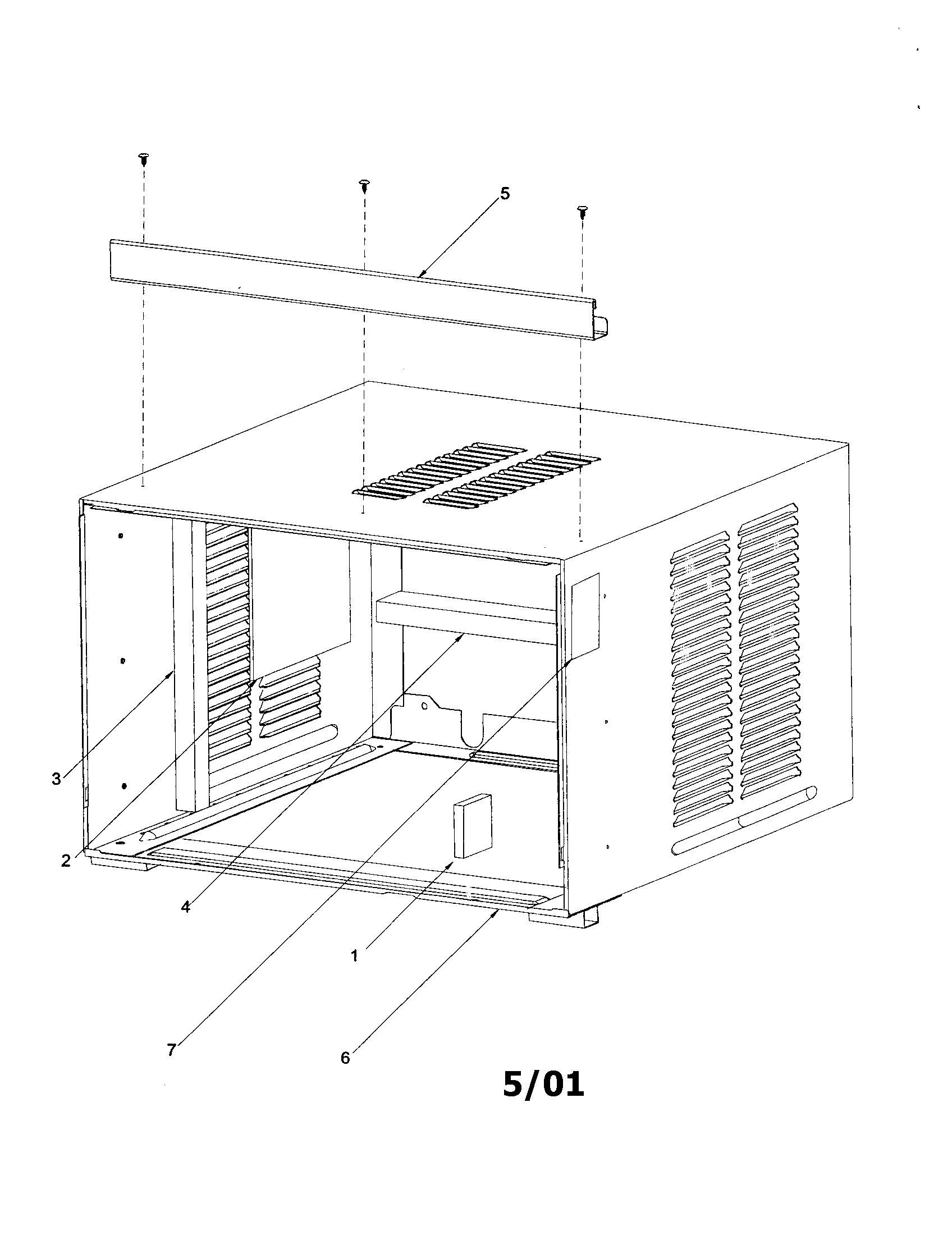

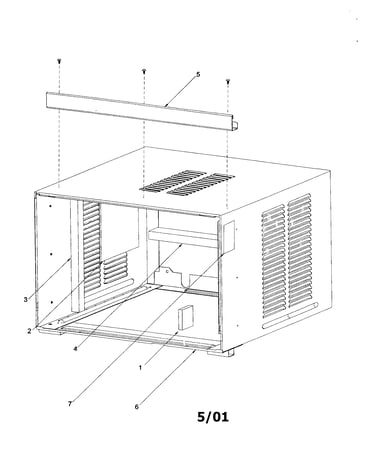

    Outer case assembly diagram

    Tape Per Rol

    Part #M0275163

    The manufacturer no longer makes this part, and there's no substitute part

  • Out Weldment for Amana AAC101SRA-PAAC101SRA0 - Part R0130197

    Outer case assembly diagram

    Out Weldment

    Part #R0130197

    The manufacturer no longer makes this part, and there's no substitute part

  • Air Conditioner Blower Wheel for Amana AAC101SRA-PAAC101SRA0 - Part R0130154

    Chassis assembly diagram

    Air Conditioner Blower Wheel

    Part #R0130154

    The manufacturer no longer makes this part, and there's no substitute part

  • Strap Capacitor for Amana AAC101SRA-PAAC101SRA0 - Part R0130029

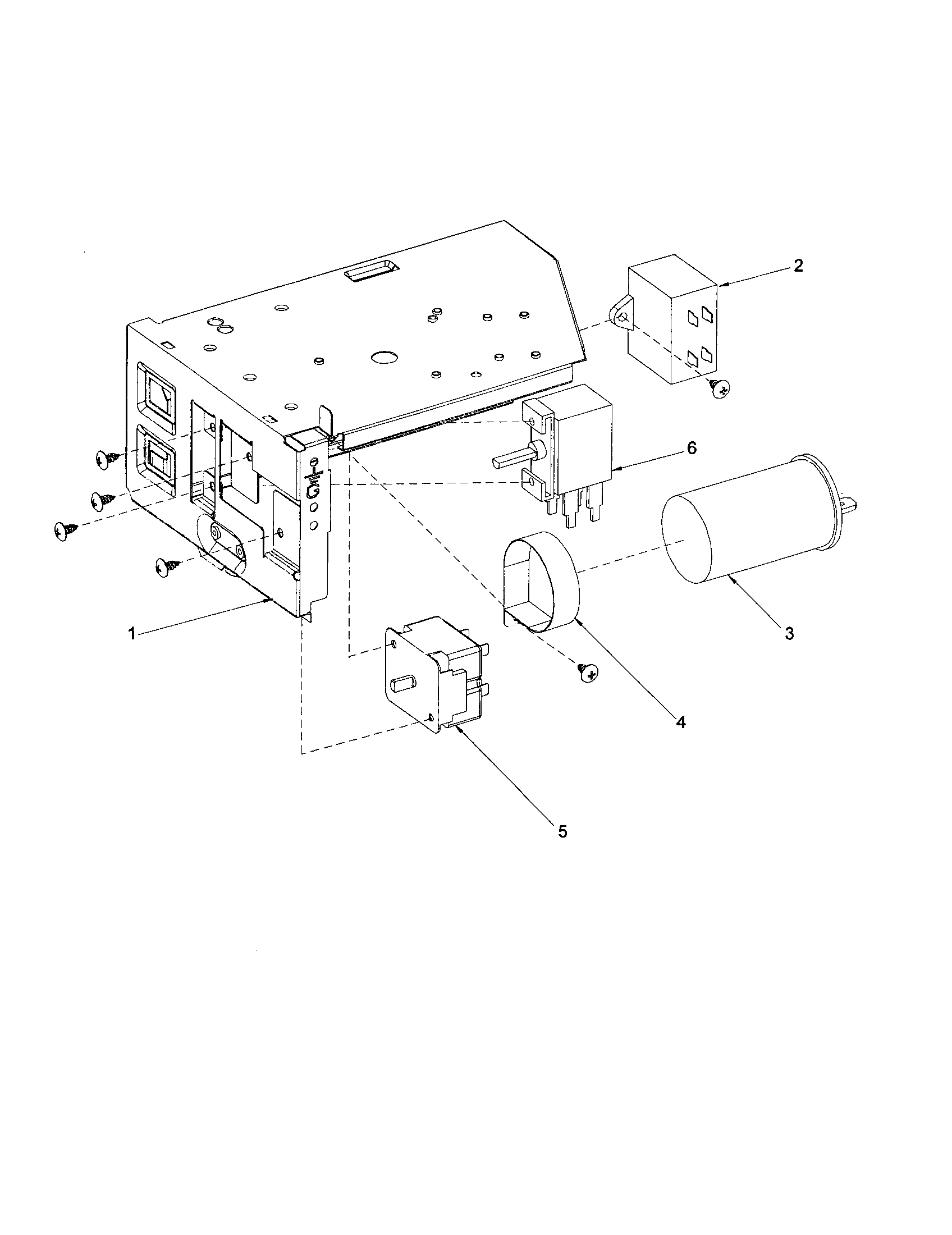

    Control assembly diagram

    Strap Capacitor

    Part #R0130029

    The manufacturer no longer makes this part, and there's no substitute part

  • Suction Tube for Amana AAC101SRA-PAAC101SRA0 - Part R0130182

    Compressor diagram

    Suction Tube

    Part #R0130182

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket Oc Right for Amana AAC101SRA-PAAC101SRA0 - Part R0130141

    Outer case assembly diagram

    Gasket Oc Right

    Part #R0130141

    The manufacturer no longer makes this part, and there's no substitute part

  • Horizontal Louvers for Amana AAC101SRA-PAAC101SRA0 - Part R0130150

    Chassis assembly diagram

    Horizontal Louvers

    Part #R0130150

    The manufacturer no longer makes this part, and there's no substitute part
