Model # MC2000MPT-P1154602M Official Amana commercial microwave

Here are the diagrams and repair parts for Official Amana MC2000MPT-P1154602M commercial microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Sealer M0275598

#661

All parts diagram

Sealer

Part #M0275598

Replaced by #W10841140

?
Manufacturer substitution
This part replaces M0275598. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
46% OFF MSRP : $28.00
In Stock
Kep Nut M0282010
#112

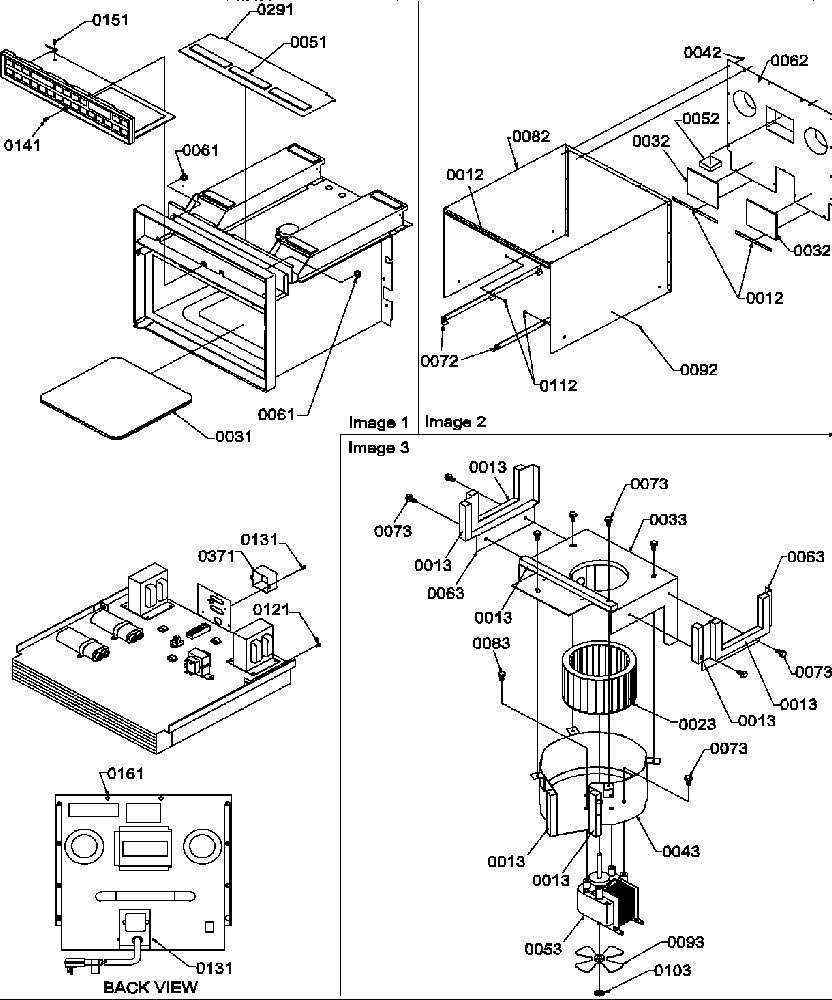

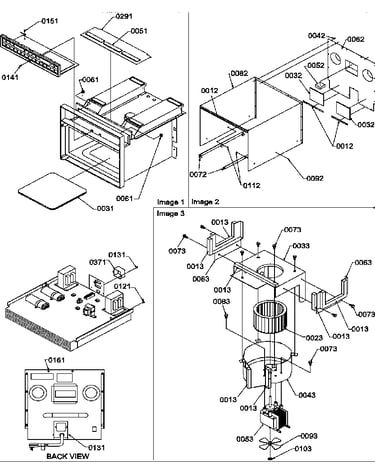

Cabinet/blower diagram

Kep nut

Part #M0282010

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces M0282010. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw M0216515
Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Diode B8383102
#101

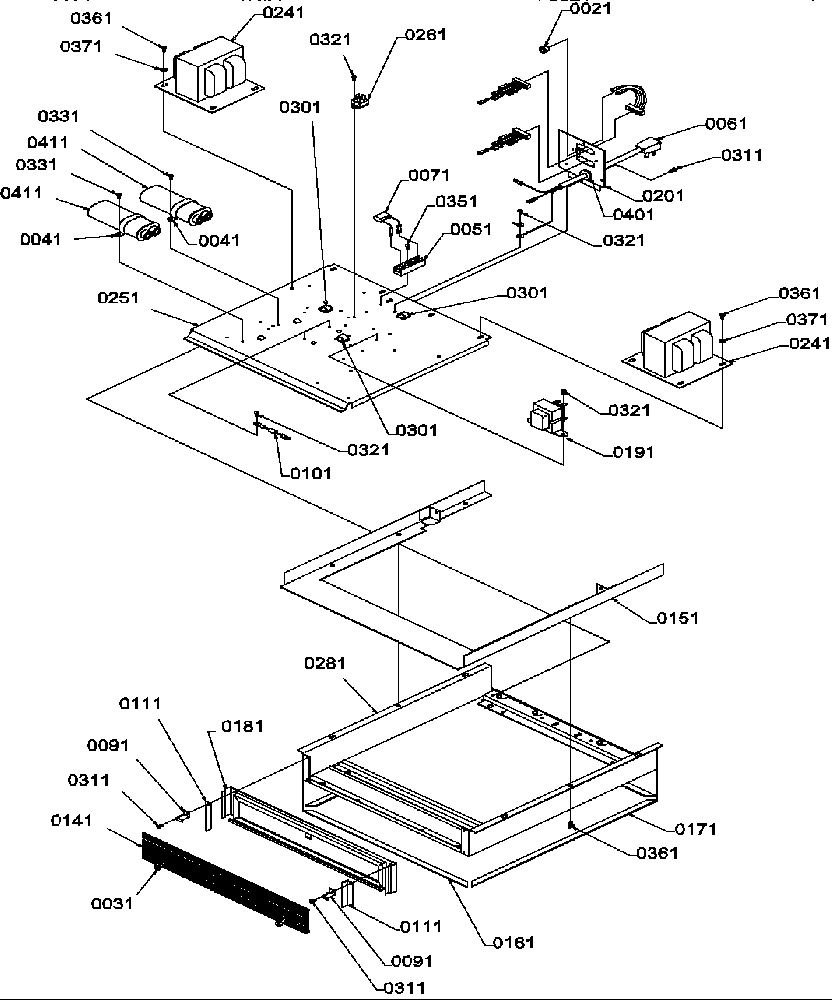

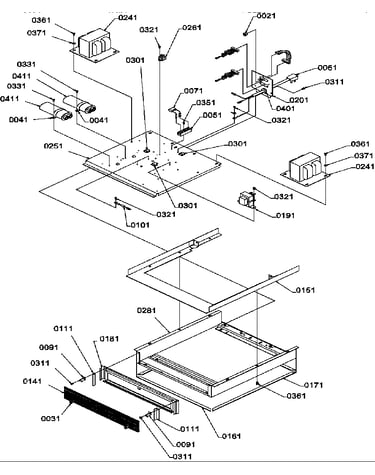

Basepan diagram

Diode

Part #B8383102

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces B8383102. Substitute parts can look different from the original.
$25.29 |
17% OFF Phone Price : $30.29
In Stock
Screw M0216703
Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0211030
#503

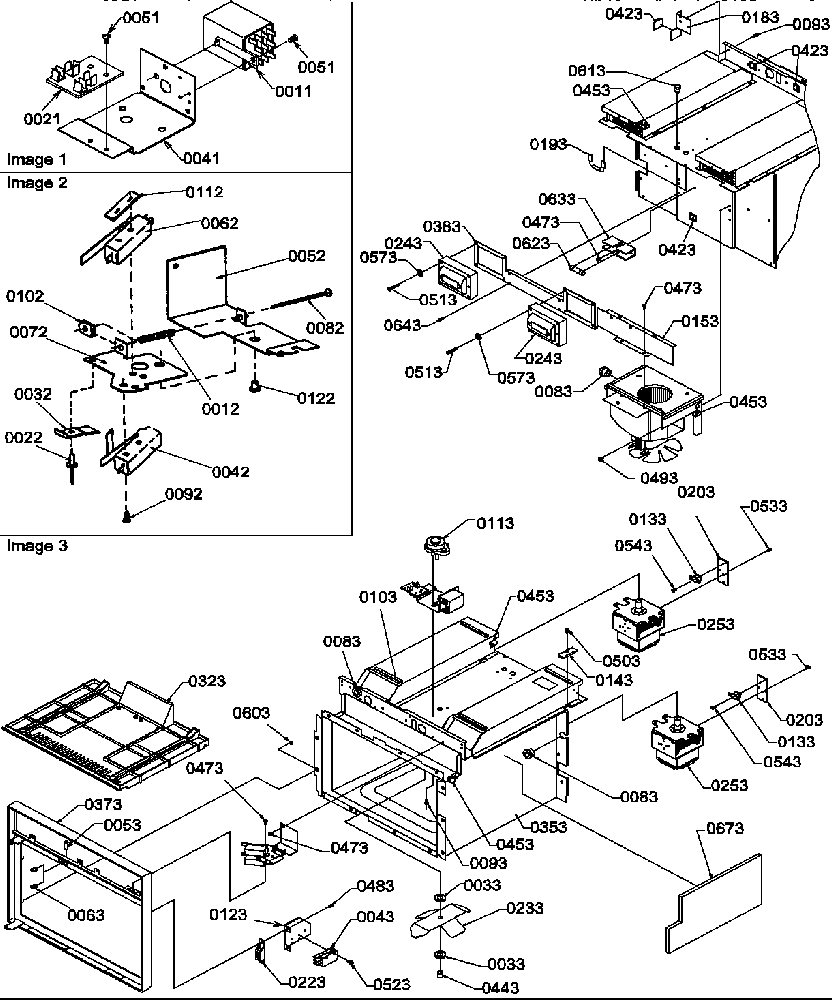

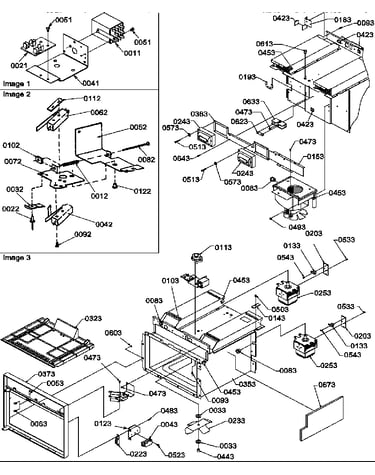

Cavity diagram

Screw

Part #M0211030

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0211030. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Screw M0211018
#643

Cavity diagram

Screw

Part #M0211018

The manufacturer no longer makes this part, and there's no substitute part

Screw, Tf M0231604
#321

Basepan diagram

Screw, tf

Part #M0231604

Replaced by #12992301

?
Manufacturer substitution
This part replaces M0231604. Substitute parts can look different from the original.
$24.39 |
17% OFF Phone Price : $29.39
In Stock
Screw M0234030
#231

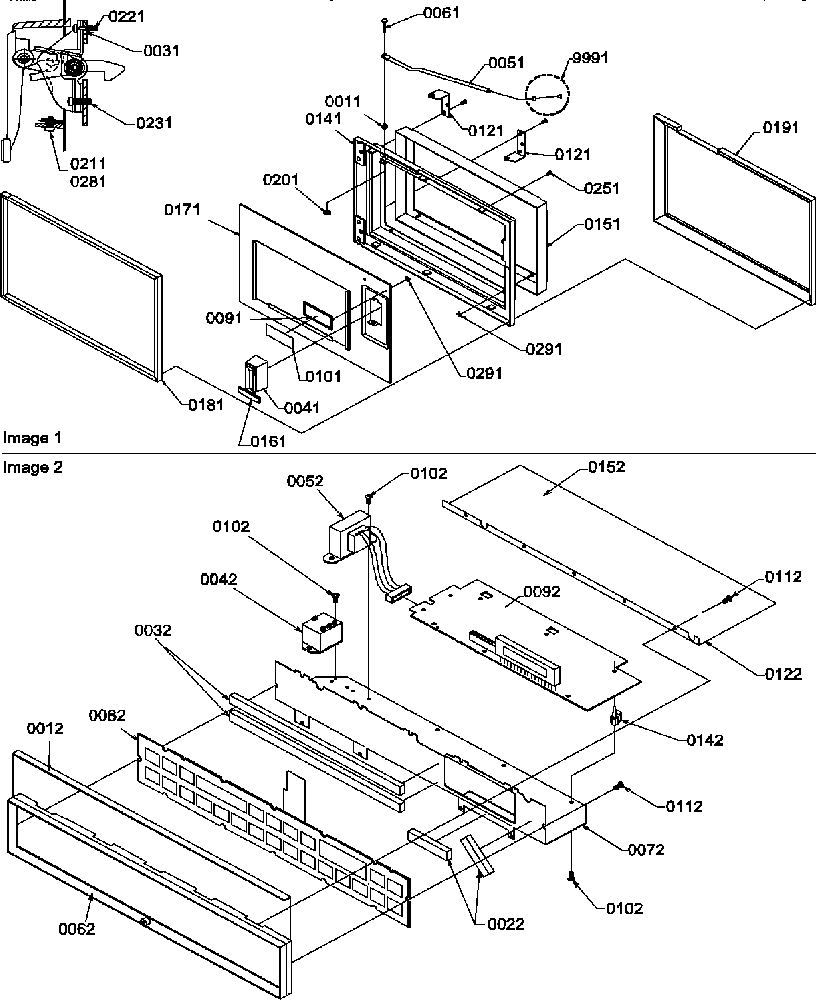

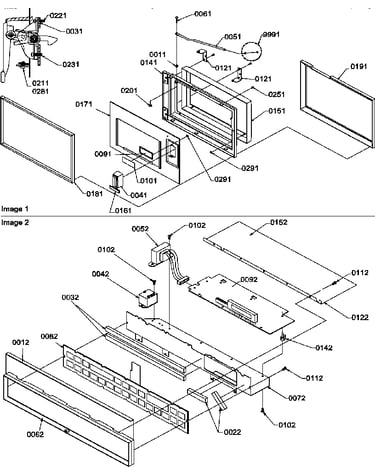

Door/control panel diagram

Screw

Part #M0234030

Replaced by #M0234030

?
Manufacturer substitution
This part replaces M0234030. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Support M0590602
#142

Door/control panel diagram

Support

Part #M0590602

Replaced by #M0590602

?
Manufacturer substitution
This part replaces M0590602. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
