Amana GS100DA-R4/P96362-7F gas furnace - gs series Parts

Here are the diagrams and repair parts for Amana GS100DA-R4/P96362-7F gas furnace - gs series, as well as links to manuals and error code tables, if available.

Amana GS100DA-R4/P96362-7F gas furnace - gs series
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GS100DA-R4/P96362-7F Gas Furnace - GS Series

  • Panel, Left Center for Amana GS100DA-R4/P96362-7F - Part R0178957

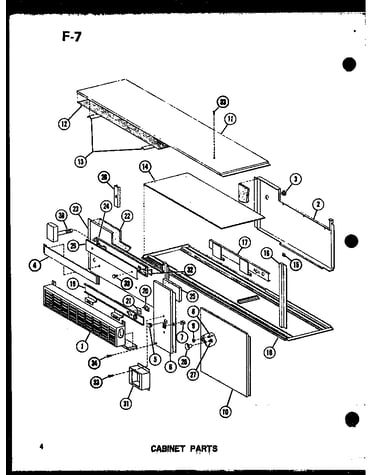

    Cabinet part diagram

    Panel, Left Center

    Part #R0178957

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner, Pilot (nat. Gas) for Amana GS100DA-R4/P96362-7F - Part R0198077

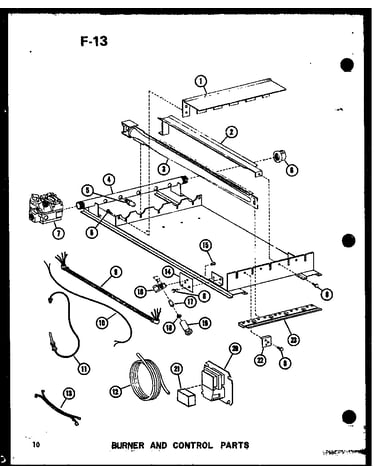

    Burner and control parts diagram

    Burner, Pilot (nat. Gas)

    Part #R0198077

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket, Side Channel for Amana GS100DA-R4/P96362-7F - Part R0182049

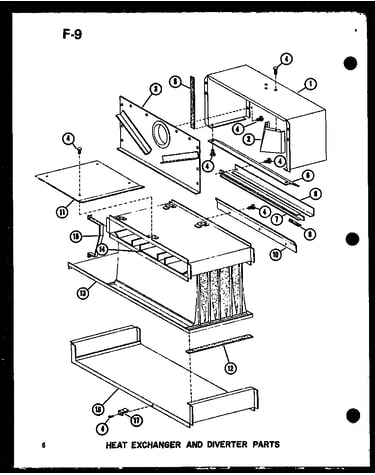

    Heat exchanger and diverter parts diagram

    Gasket, Side Channel

    Part #R0182049

    The manufacturer no longer makes this part, and there's no substitute part

  • Baffle, Diverter Downdraft for Amana GS100DA-R4/P96362-7F - Part R0198119

    Heat exchanger and diverter parts diagram

    Baffle, Diverter Downdraft

    Part #R0198119

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor, 1/4 H.p., 11 V., 60 Hz, 4 Speed, Emerson (5.4 Amp for Amana GS100DA-R4/P96362-7F - Part R0156021

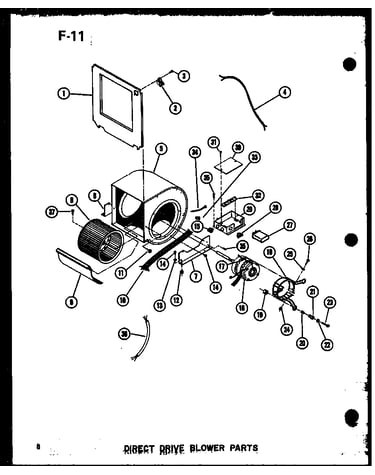

    Direct drive blower parts diagram

    Motor, 1/4 H.p., 11 V., 60 Hz, 4 Speed, Emerson (5.4 Amp

    Part #R0156021

    The manufacturer no longer makes this part, and there's no substitute part

  • Nut, #5/16-18, Hex for Amana GS100DA-R4/P96362-7F - Part M0281701

    Direct drive blower parts diagram

    Nut, #5/16-18, Hex

    Part #M0281701

    The manufacturer no longer makes this part, and there's no substitute part

  • Cap, 3/4" Pipe for Amana GS100DA-R4/P96362-7F - Part R0198218

    Burner and control parts diagram

    Cap, 3/4" Pipe

    Part #R0198218

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket, Heat Exchanger for Amana GS100DA-R4/P96362-7F - Part R0182056

    Heat exchanger and diverter parts diagram

    Gasket, Heat Exchanger

    Part #R0182056

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Knob for Amana GS100DA-R4/P96362-7F - Part R0198220

    Cabinet part diagram

    Door Knob

    Part #R0198220

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw, 1/4 for Amana GS100DA-R4/P96362-7F - Part R0186002

    Direct drive blower parts diagram

    Screw, 1/4

    Part #R0186002

    The manufacturer no longer makes this part, and there's no substitute part
