Amana GH200E-R4/P96420-18F gas furnace - gh series Parts

Name: Amana GH200E-R4/P96420-18F Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: GH200E-R4/P96420-18F
Availability: InStock

Here are the diagrams and repair parts for Amana GH200E-R4/P96420-18F gas furnace - gh series, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts forGH200E-R4/P96420-18F Gas Furnace - GH Series

Air Shutter
Part #A9023601
The manufacturer no longer makes this part, and there's no substitute part

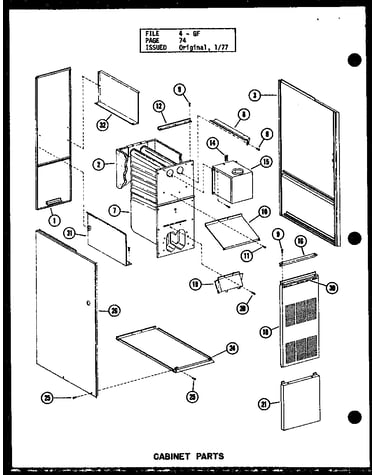

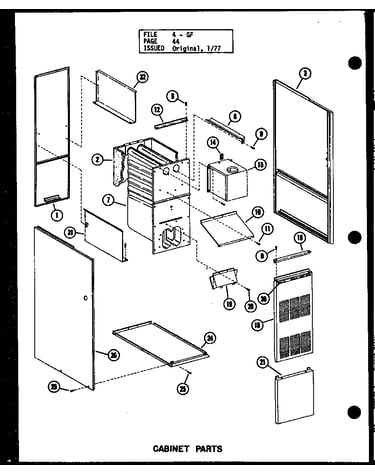

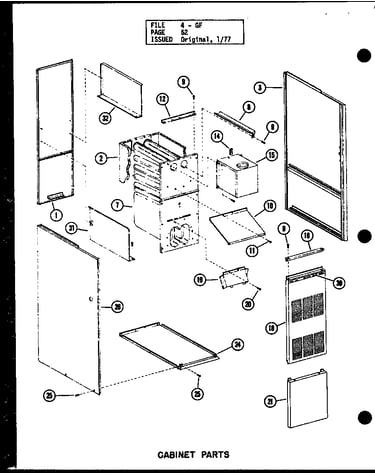

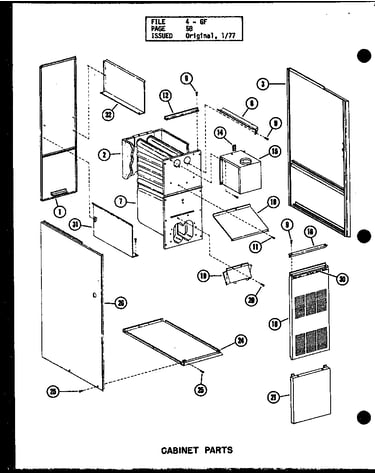

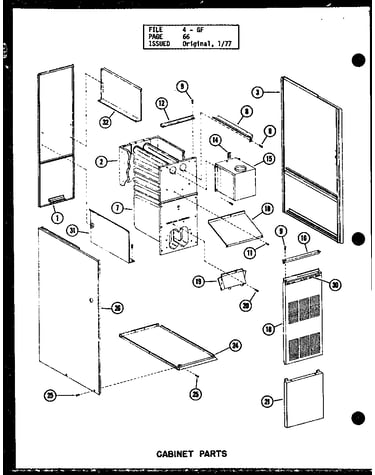

Cabinet parts (gh160e-r5/p96420-17f) (gh200e-r4/p96420-18f) diagram
Combustion Chamber
Part #D9626203
The manufacturer no longer makes this part, and there's no substitute part

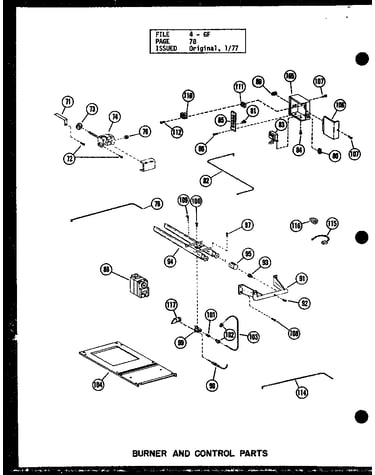

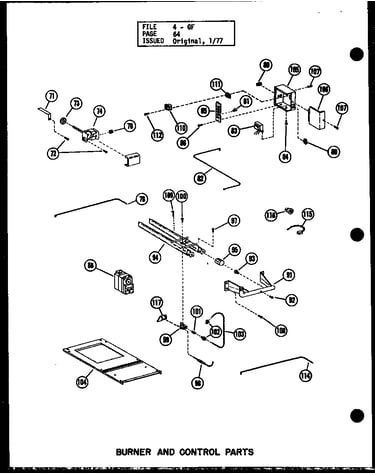

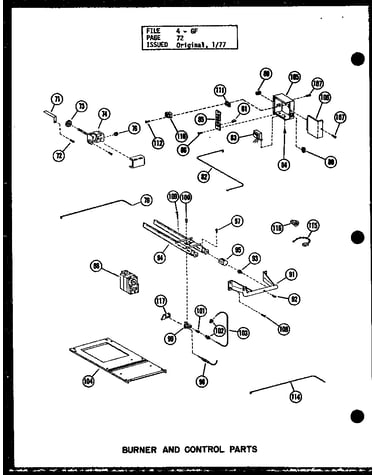

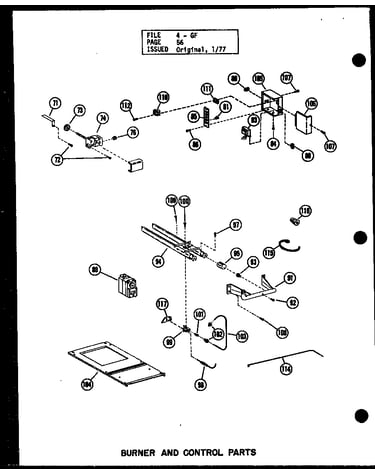

Burner and control parts (gh160de-r3.5/p96420-16f) diagram
Gas Valve
Part #B9257801
The manufacturer no longer makes this part, and there's no substitute part

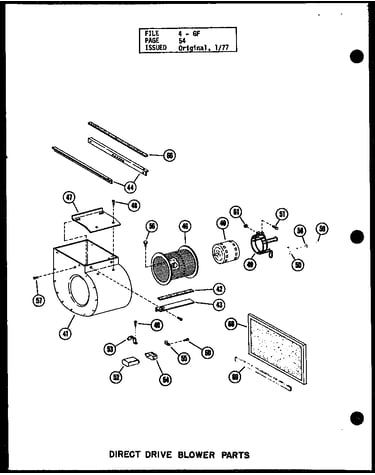

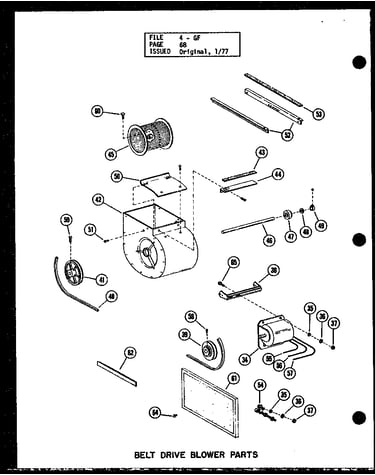

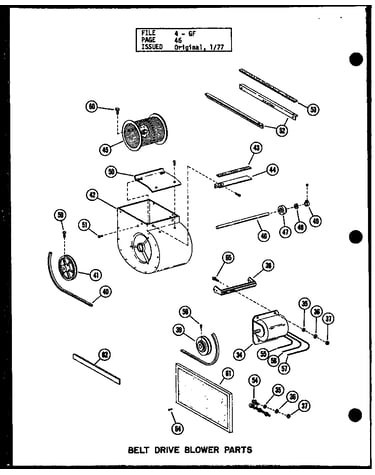

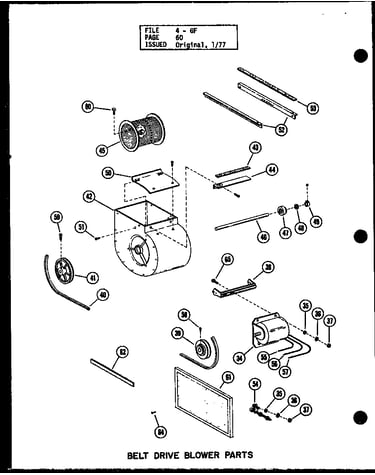

Direct drive blower parts (gh160e-r5/p96420-17f) (gh200e-r4/p96420-18f) diagram
Furnace Blower Wheel
Part #M0805002
The manufacturer no longer makes this part, and there's no substitute part

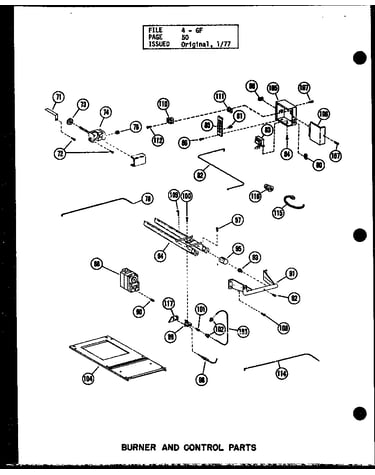

Burner and control parts (gh160e-r5/p96420-17f) (gh200e-r4/p96420-18f) diagram
Wiring Harness
Part #B9267602
The manufacturer no longer makes this part, and there's no substitute part
Burner and control parts (gh160de-r3.5/p96420-16f) diagram
Thermocouple
Part #M0340204
The manufacturer no longer makes this part, and there's no substitute part
Tranformer, 40 Va
Part #M0331301
The manufacturer no longer makes this part, and there's no substitute part

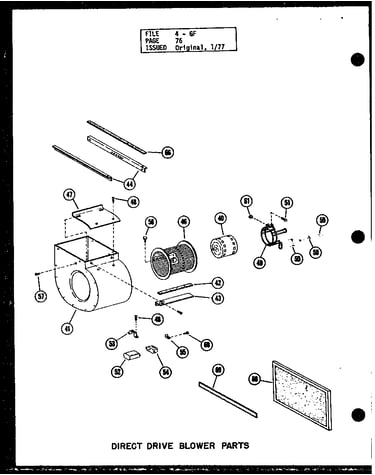

Direct drive blower parts (gh160e-r5/p96420-17f) (gh200e-r4/p96420-18f) diagram
Screw, 5/16"-18 X 3/4", Motor Mounting
Part #M0270510
The manufacturer no longer makes this part, and there's no substitute part
Strain Relie
Part #M0570901
The manufacturer no longer makes this part, and there's no substitute part

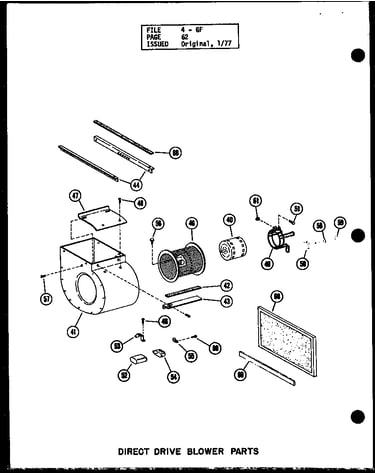

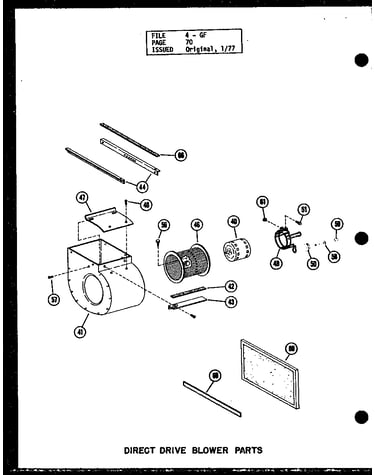

Direct drive blower part (gh64de/p96420-1f) diagram
Grommet K
Part #A4002702
The manufacturer no longer makes this part, and there's no substitute part
