Craftsman
Water Pump

Model # 390260290 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390260290 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

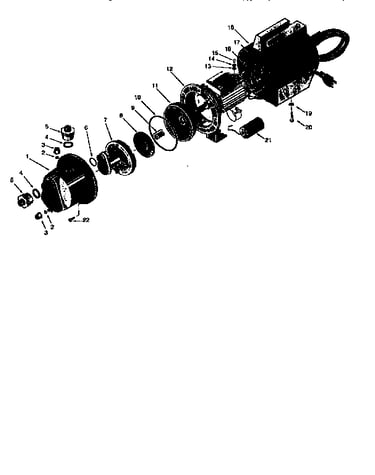

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
O-ring 111P0700
#10

Replacement parts diagram

O-ring

Part #111P0700

This item is not returnable
$12.80
In Stock
Pump O-ring 111P0710
#2

Replacement parts diagram

Pump o-ring

Part #111P0710

This item is not returnable
$14.91
In Stock
Seal Plate 101P1290
#11

Replacement parts diagram

Seal plate

Part #101P1290

This item is not returnable
$26.13
In Stock
Capacitor 171P4630
#21

Replacement parts diagram

Capacitor

Part #171P4630

$41.89
In Stock
Screw 121P1490
#20

Replacement parts diagram

Screw

Part #121P1490

This item is not returnable
$4.25
In Stock
O-ring 111P0480
#6

Replacement parts diagram

O-ring

Part #111P0480

This item is not returnable
$7.48
In Stock
Pump Suction Hose And Foot Valve ZB400960

#NI

All parts diagram

Pump suction hose and foot valve

Part #ZB400960

$104.69 |
9% OFF Phone Price : $114.69
In Stock
Washer 121P0920
#14

Replacement parts diagram

Washer

Part #121P0920

This item is not returnable
$4.23
In Stock
Venturi Diode 742S0140
#7

Replacement parts diagram

Venturi diode

Part #742S0140

Replaced by #101P2840

?
Manufacturer substitution
This part replaces 742S0140. Substitute parts can look different from the original.
$116.38
In Stock
Shaft Seal 111R0970
#9

Replacement parts diagram

Shaft seal

Part #111R0970

Replaced by #ZBR39020

?
Manufacturer substitution
This part replaces 111R0970. Substitute parts can look different from the original.
$110.76
In Stock
