Amana GL120M-R3/P96522-2F gas furnace - gl series Parts

Here are the diagrams and repair parts for Amana GL120M-R3/P96522-2F gas furnace - gl series, as well as links to manuals and error code tables, if available.

Amana GL120M-R3/P96522-2F gas furnace - gl series
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GL120M-R3/P96522-2F Gas Furnace - GL Series

  • Washer Screw for Amana GL120M-R3/P96522-2F - Part WP90767

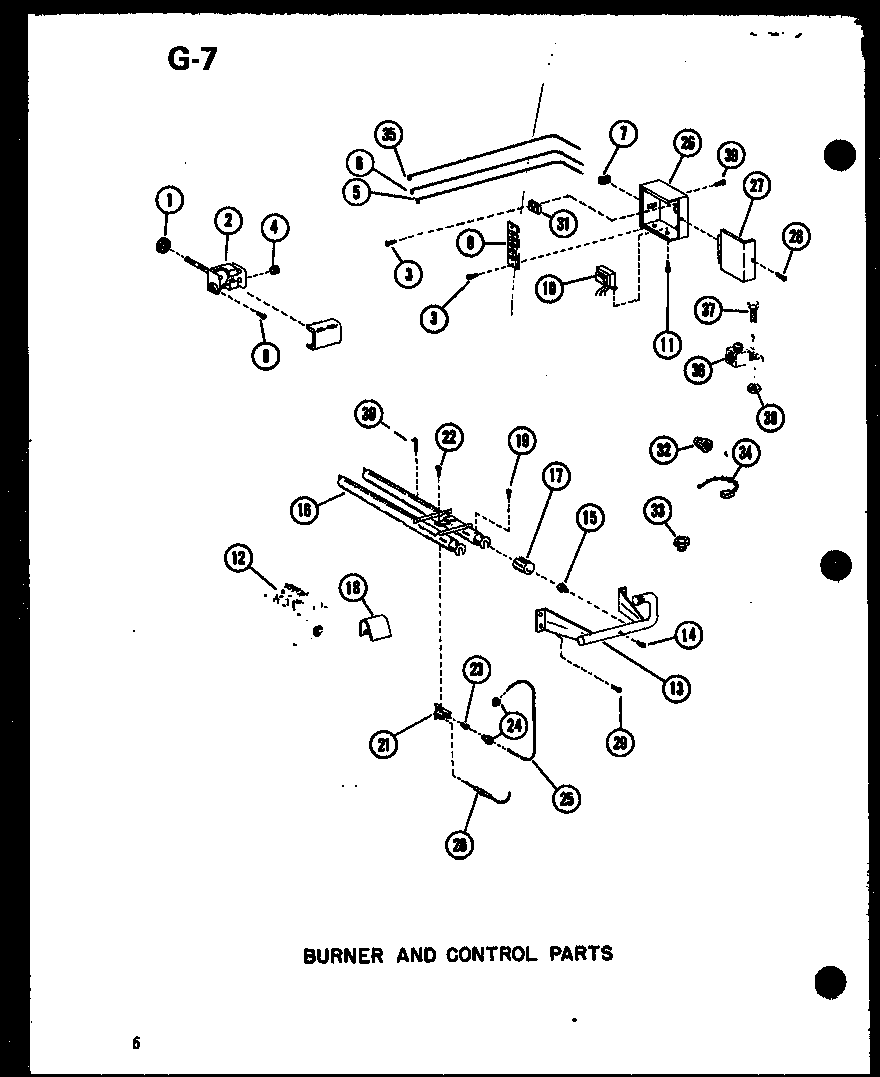

    Burner and control parts diagram

    Screw

    Part #M0216529

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216529. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Amana GL120M-R3/P96522-2F - Part WP90767

    Burner and control parts diagram

    Screw

    Part #M0216716

    Replaced by #WP90767

    Info Icon
    Manufacturer substitution
    This part replaces M0216716. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw Kit, 2-piece for Amana GL120M-R3/P96522-2F - Part R9800670

    Screw

    Part #M0211030

    Replaced by #R9800670

    Info Icon
    Manufacturer substitution
    This part replaces M0211030. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.76
    15% OFF Phone Price : $6.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for Amana GL120M-R3/P96522-2F - Part WP489474

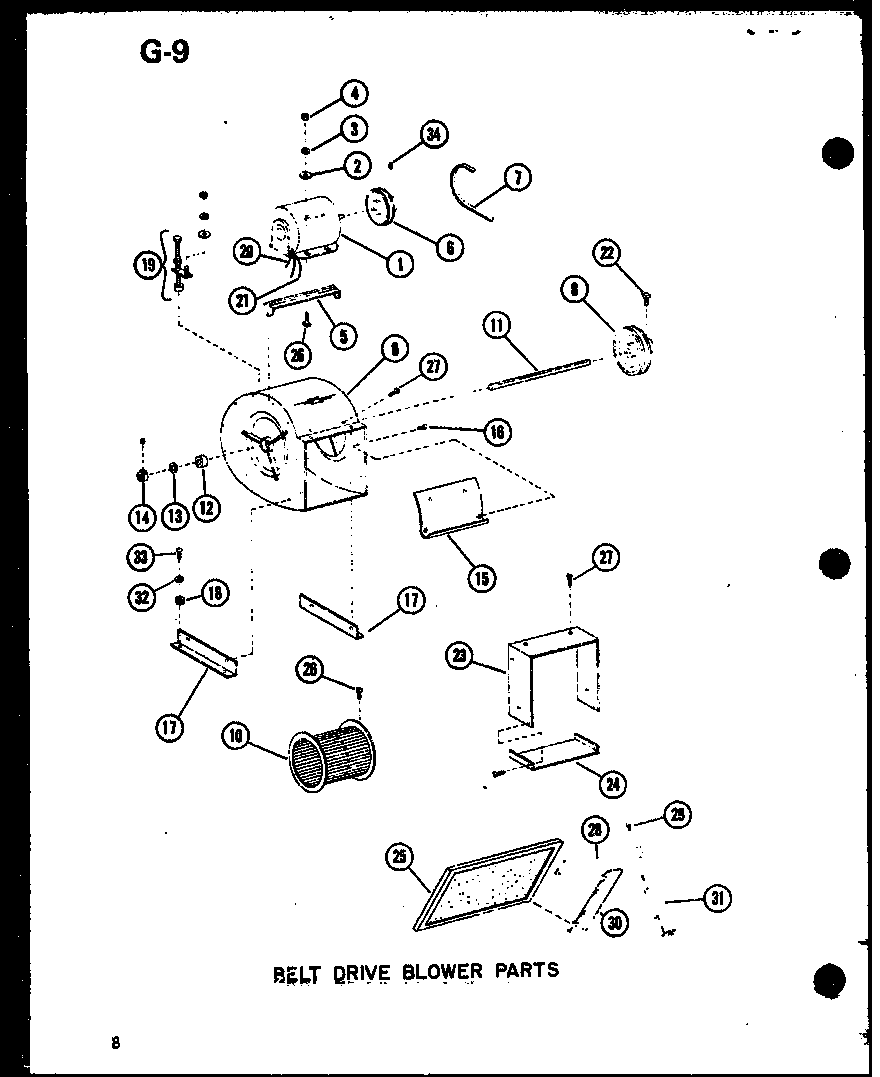

    Belt drive blower parts diagram

    Screw

    Part #M0211021

    Replaced by #WP489474

    Info Icon
    Manufacturer substitution
    This part replaces M0211021. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.70
    15% OFF Phone Price : $6.70Info Icon
    Minus Item
    Qty
    Plus Item
  • Keps Nut, #10-32 for Amana GL120M-R3/P96522-2F - Part M0282010

    Burner and control parts diagram

    Keps Nut, #10-32

    Part #M0282010

    The manufacturer no longer makes this part, and there's no substitute part

  • Door, Filter Access for Amana GL120M-R3/P96522-2F - Part D9653002

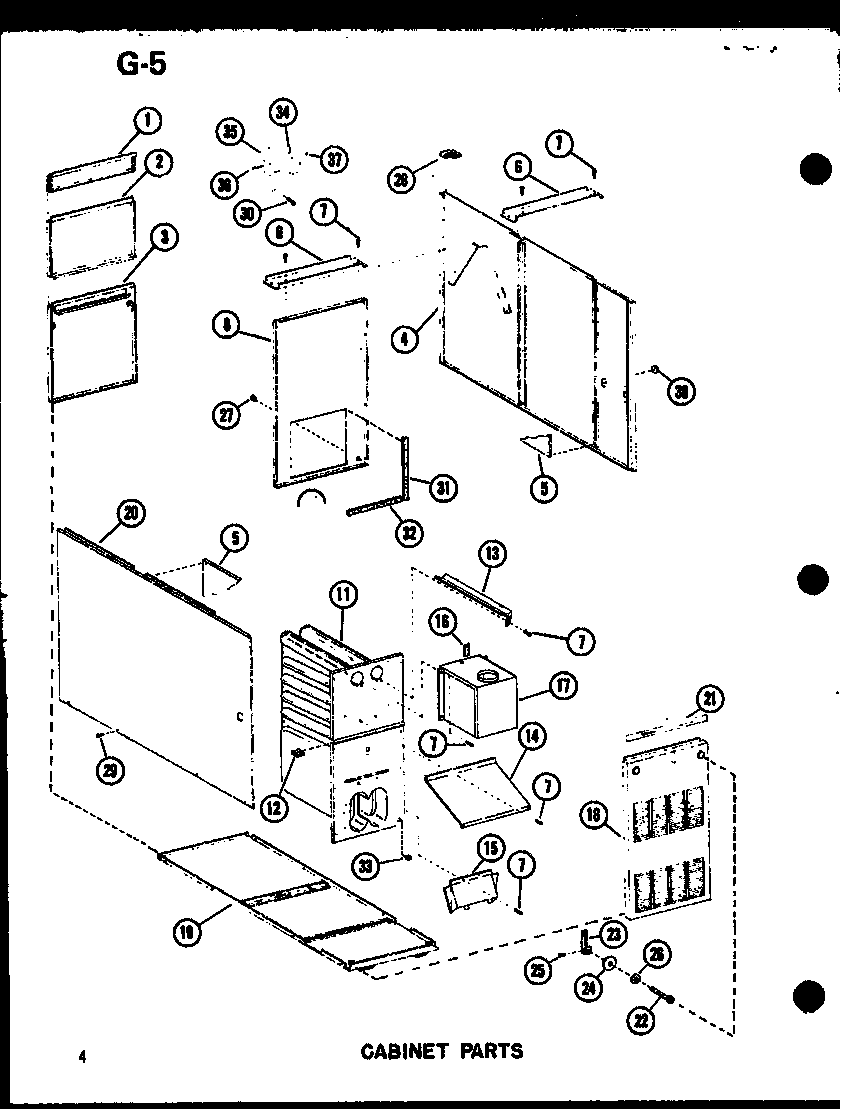

    Cabinet parts diagram

    Door, Filter Access

    Part #D9653002

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner, 5 Section for Amana GL120M-R3/P96522-2F - Part C9460605

    Burner and control parts diagram

    Burner, 5 Section

    Part #C9460605

    The manufacturer no longer makes this part, and there's no substitute part

  • Furnace Blower Panel for Amana GL120M-R3/P96522-2F - Part C9463401

    Cabinet parts diagram

    Furnace Blower Panel

    Part #C9463401

    The manufacturer no longer makes this part, and there's no substitute part

  • Blower Cut-off 5713015 for Amana GL120M-R3/P96522-2F - Part M0805004

    Belt drive blower parts diagram

    Blower Cut-off 5713015

    Part #M0805004

    The manufacturer no longer makes this part, and there's no substitute part

  • Blower Foot - Left for Amana GL120M-R3/P96522-2F - Part B9240802

    Belt drive blower parts diagram

    Blower Foot - Left

    Part #B9240802

    The manufacturer no longer makes this part, and there's no substitute part
