Craftsman
Radial Arm Saw

Model # 11323161 Official Craftsman 10" radial saw

Here are the diagrams and repair parts for Official Craftsman 11323161 10" radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Lock Washer, 5/16-in, 8-pack STD551131
Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Screw 9416187
#22

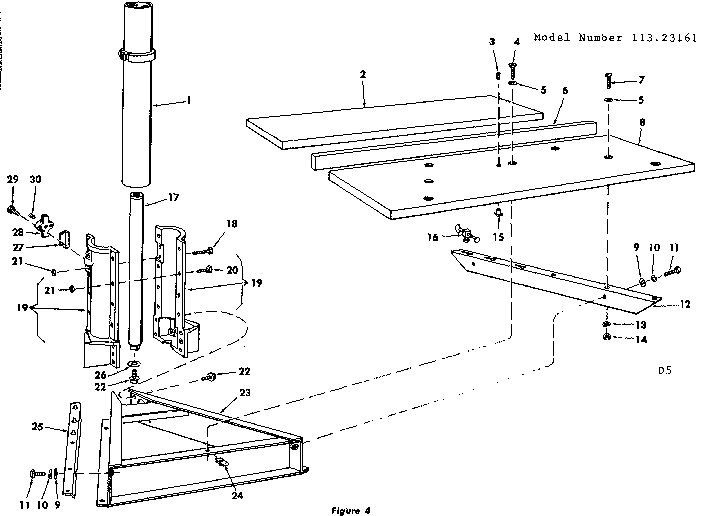

Rip fence and base assembly diagram

Screw

Part #9416187

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Nut 30495
#19

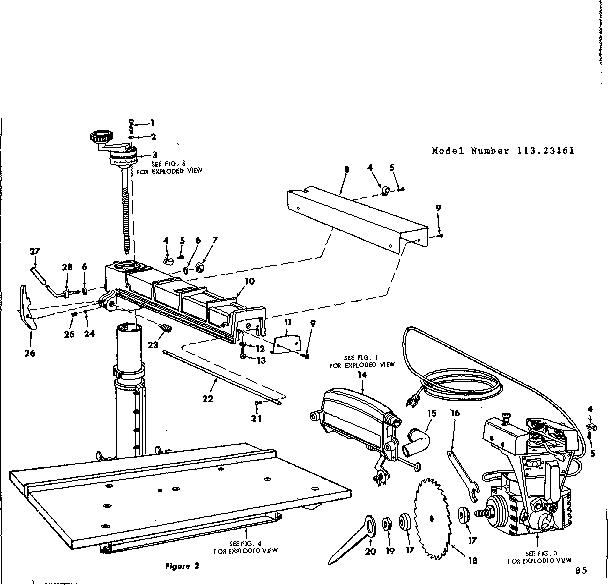

Unit diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Washer 30767
#12

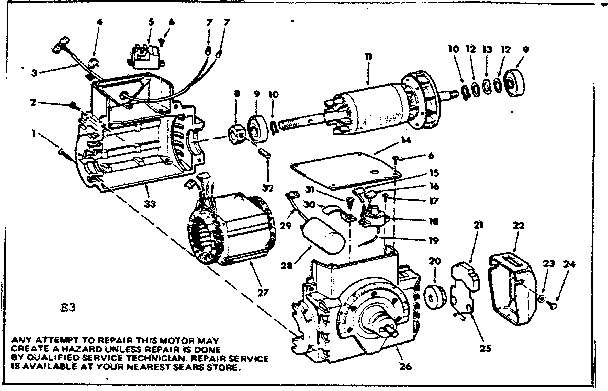

Motor breakdown diagram

Power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Clip Nut 37530
#24

Rip fence and base assembly diagram

Power tool clip nut

Part #37530

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hex Nut 120399
#13

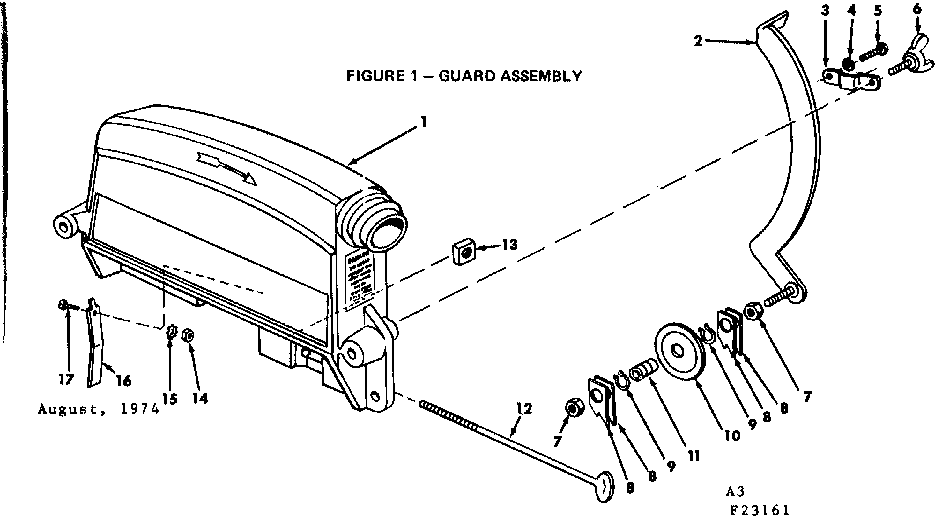

Guard assembly diagram

Radial arm saw hex nut

Part #120399

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw T-nut 37384
#15

Rip fence and base assembly diagram

Radial arm saw t-nut

Part #37384

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Rip Fence 63522
#6

Rip fence and base assembly diagram

Radial arm saw rip fence

Part #63522

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Track 63034
#22

Unit diagram

Radial arm saw track

Part #63034

The manufacturer no longer makes this part, and there's no substitute part

Wing Screw 60219
#6

Guard assembly diagram

Wing screw

Part #60219

The manufacturer no longer makes this part, and there's no substitute part
