Amana RE14010C2DR REV A room air conditioner Parts
Here are the diagrams and repair parts for Amana RE14010C2DR REV A room air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for RE14010C2DR REV A Room Air Conditioner

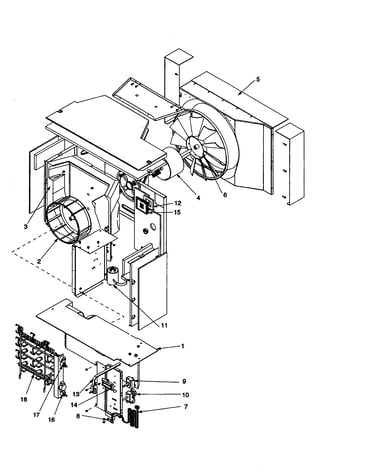

Fan and control assembly diagram
Limit Thermostat
Part #BT1243734
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Damper Slide
Part #BT3076302
The manufacturer no longer makes this part, and there's no substitute part

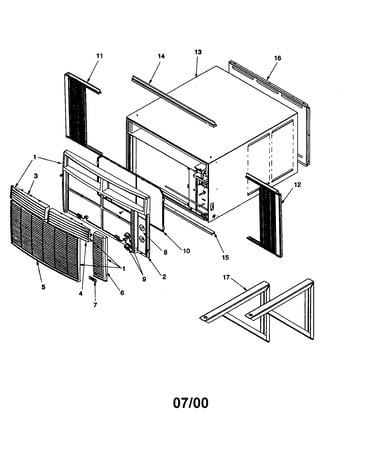

Outer case assembly diagram
Control Door
Part #BT3075302
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Shutter
Part #BT3074112
The manufacturer no longer makes this part, and there's no substitute part

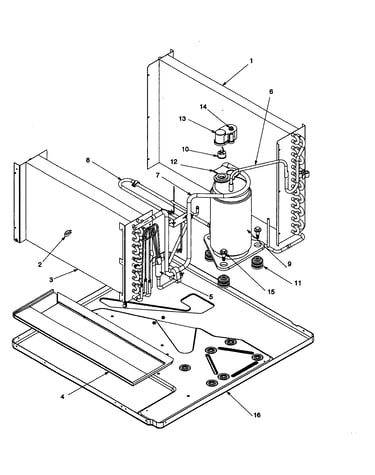

Compressor assembly diagram
Evap Coil Assembly (re14010c2d, Re14010c2d Rev A, Re14010c2dr, Re14010c2dr Rev A)
Part #3064605
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Fan Shroud
Part #BT3011002
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Bulb Clip
Part #BT1531802
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Kit, Hard St
Part #3093200S
The manufacturer no longer makes this part, and there's no substitute part
Outer case assembly diagram
Mounting Bracket
Part #3084002
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Gasket (p1225001r, P1225002r, P1225003r)
Part #BT1392604
The manufacturer no longer makes this part, and there's no substitute part
