Amana GCC070C40C/P1161803F gas furnace - gcc series Parts

Name: Amana GCC070C40C/P1161803F Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: GCC070C40C/P1161803F
Availability: InStock

Here are the diagrams and repair parts for Amana GCC070C40C/P1161803F gas furnace - gcc series, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

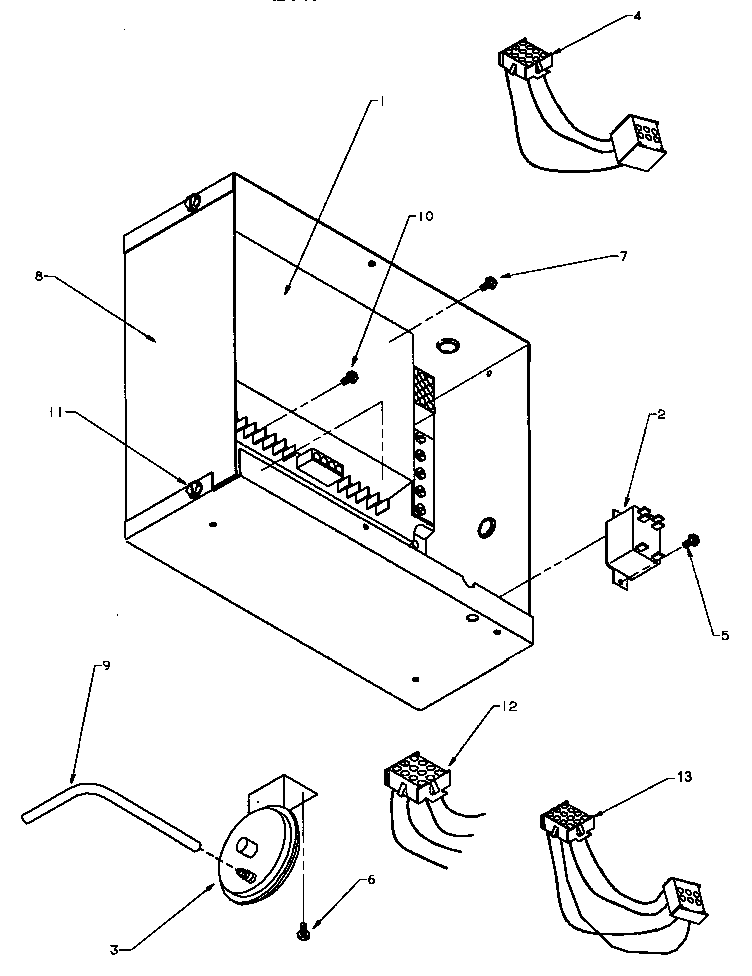

Browse Parts for GCC070C40C/P1161803F Gas Furnace - GCC Series

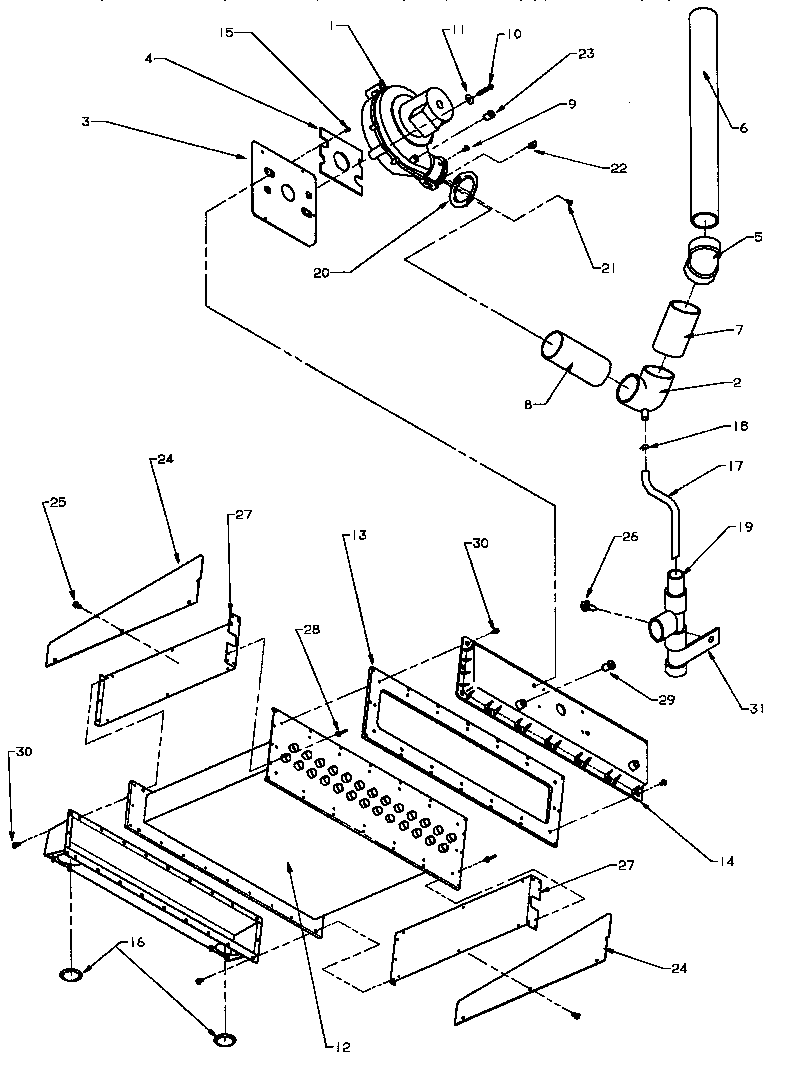

Induced draft blower ass'y & recuperator coil ass'y diagram
Screw
Part #M0236717
Replaced by #WP489464
Manufacturer substitution
This part replaces M0236717. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.67
12% OFF Phone Price : $8.67
Qty

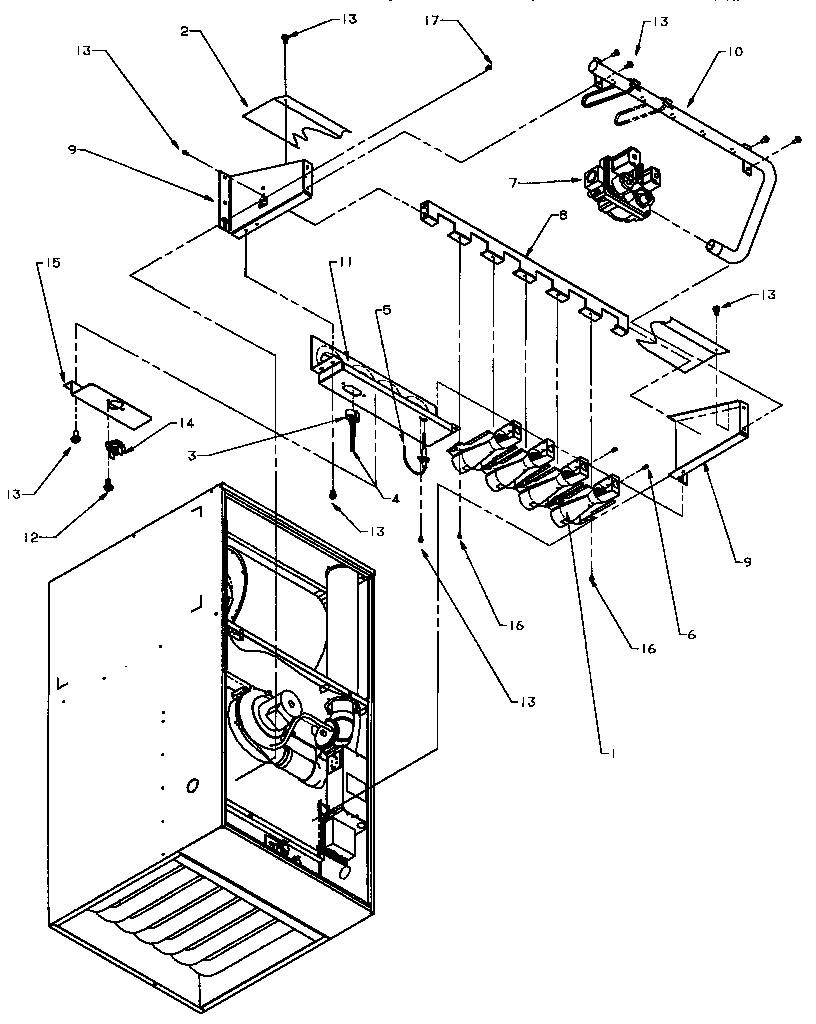

Manifold assembly diagram
Screw
Part #M0212517
Replaced by #WP59002061
Manufacturer substitution
This part replaces M0212517. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.91
17% OFF Phone Price : $5.91
Qty

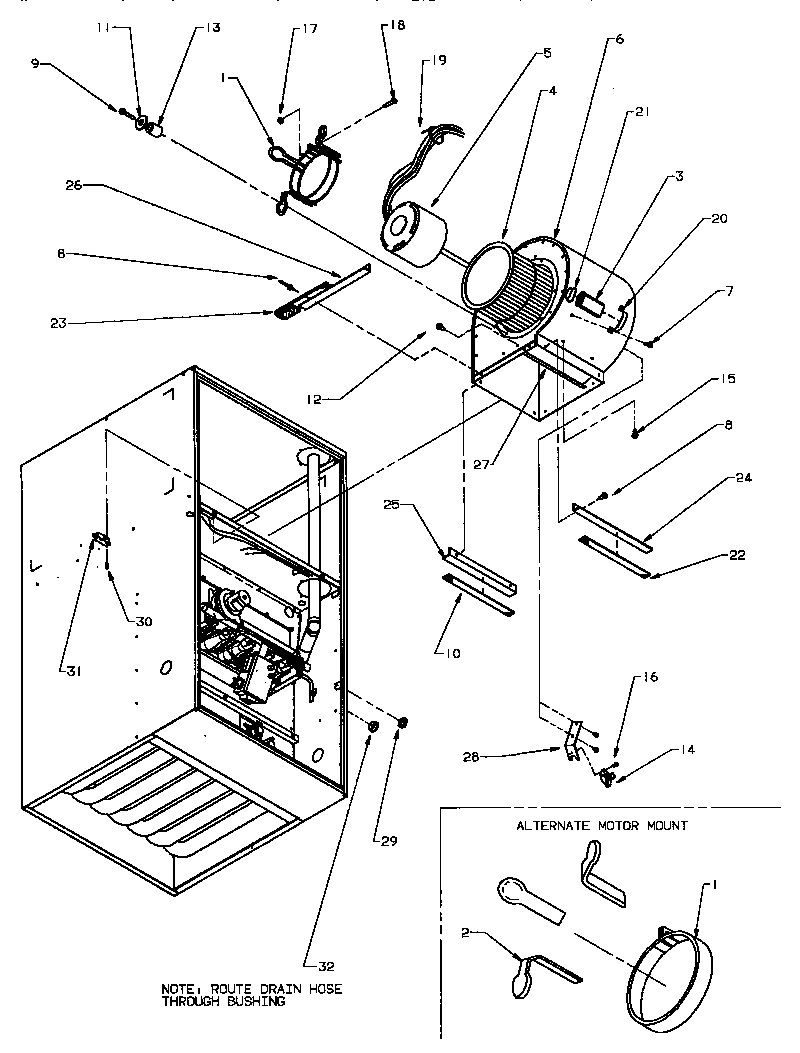

Blower assembly diagram
Use M2820-15
Part #M0282013
Replaced by #WP487939
Manufacturer substitution
This part replaces M0282013. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.82
17% OFF Phone Price : $5.82
Qty

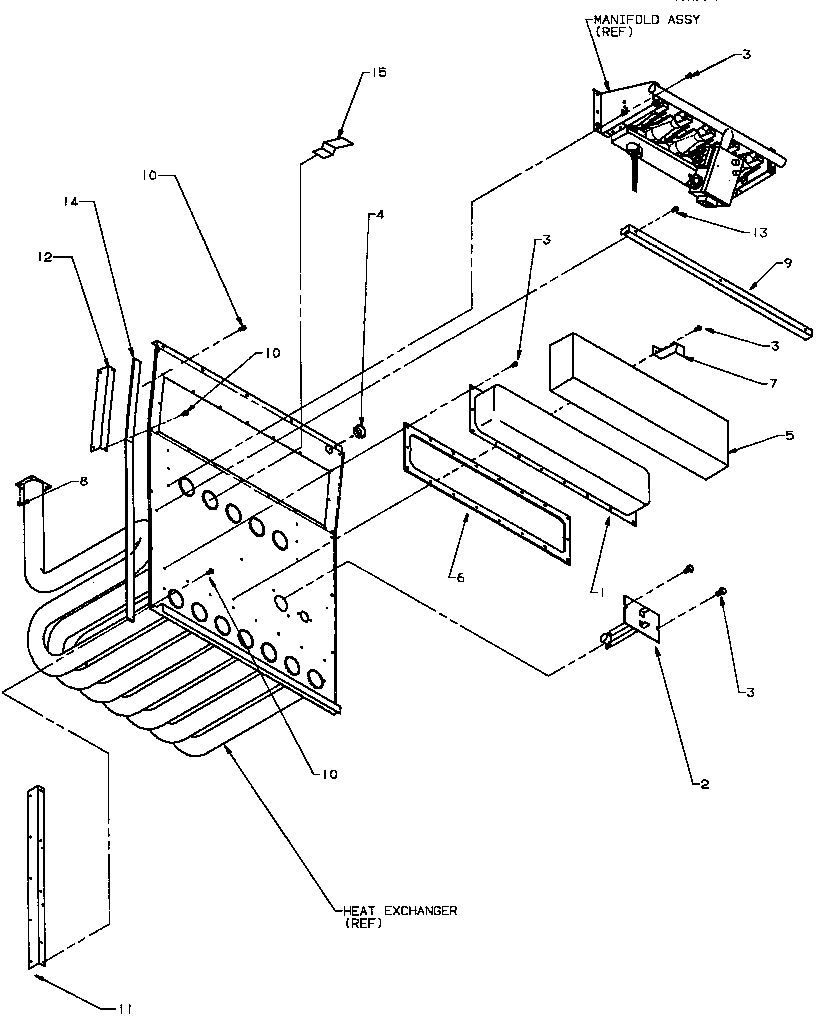

Heat exchanger and related parts diagram
Screw
Part #M0211022
Replaced by #WP3400886
Manufacturer substitution
This part replaces M0211022. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.21
12% OFF Phone Price : $8.21
Qty
Heat exchanger and related parts diagram
Gasket
Part #D9983002
In Stock
$66.53
Qty
Screw
Part #M0211018
Replaced by #WP98165
Manufacturer substitution
This part replaces M0211018. Substitute parts can look different from the original.
In Stock
$28.38
Qty
Manifold assembly diagram
Gas Valve
Part #C6476904
The manufacturer no longer makes this part, and there's no substitute part
Blower assembly diagram
Screw
Part #M0267144
Replaced by #3400241
Manufacturer substitution
This part replaces M0267144. Substitute parts can look different from the original.
In Stock
$37.61
Qty

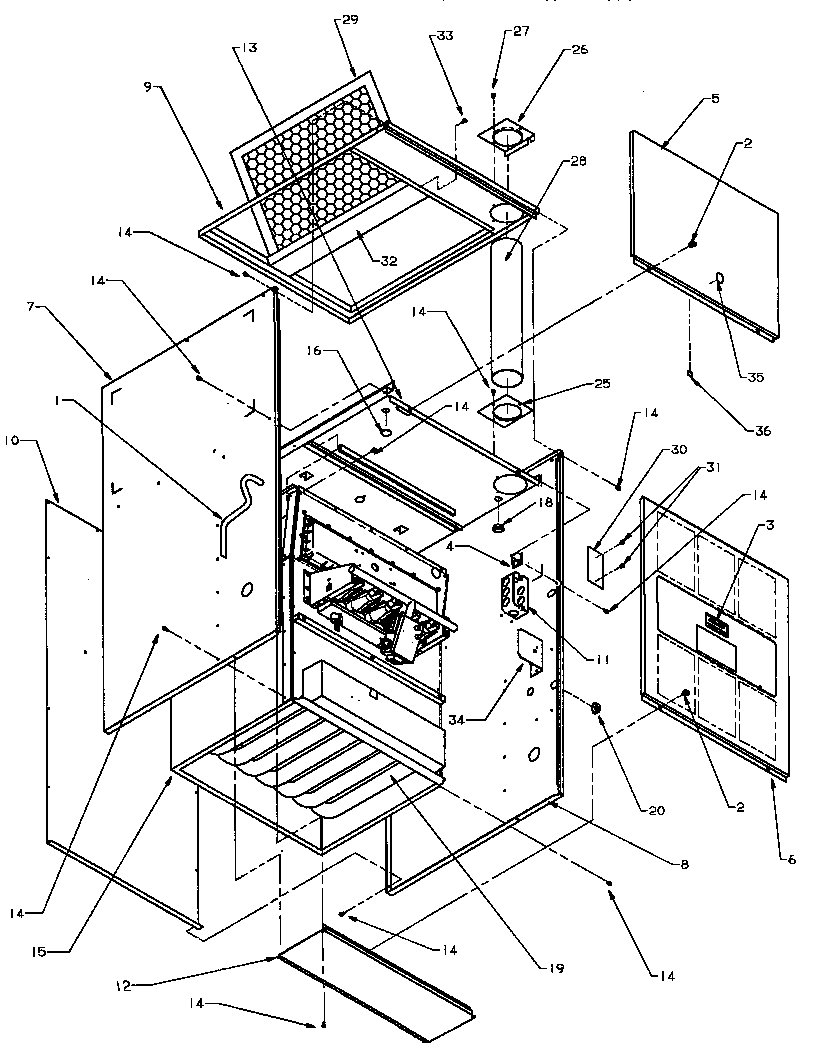

Cabinet assembly diagram
Screw
Part #M0216529
Replaced by #WP90767
Manufacturer substitution
This part replaces M0216529. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty
Induced draft blower ass'y & recuperator coil ass'y diagram
Washer
Part #M0270528
Replaced by #M0270528
Manufacturer substitution
This part replaces M0270528. Substitute parts can look different from the original.
In Stock
$27.79
Qty
