Amana RC05080M1DR room air conditioner Parts
Here are the diagrams and repair parts for Amana RC05080M1DR room air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts for RC05080M1DR Room Air Conditioner

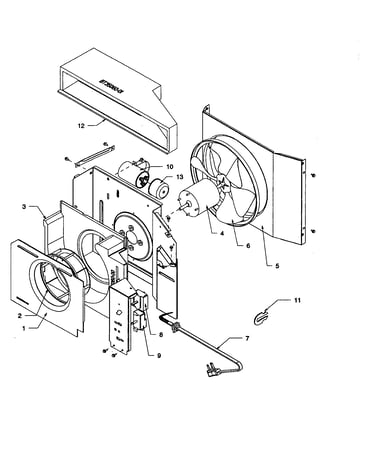

Fan and control assembly diagram
Temperature Control
Part #BT1370801Replaced by #BT1370801
Manufacturer substitutionThis part replaces BT1370801. Substitute parts can look different from the original.In Stock$102.50
Qty

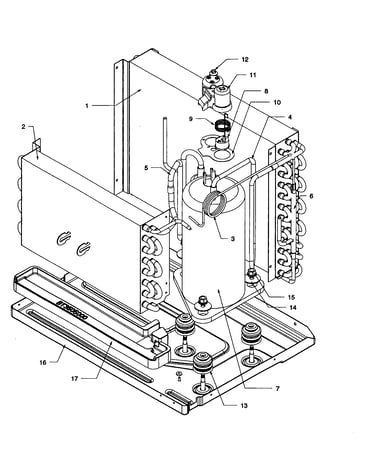

Compressor assembly diagram
Nut
Part #BT1393008
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Cap Tube (rc05090m1d, Rc05090m1d Rev A, Rc05090m1dr, Rc05090m1dr Rev A)
Part #3593644
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Capacitor
Part #BT9457000
The manufacturer no longer makes this part, and there's no substitute part

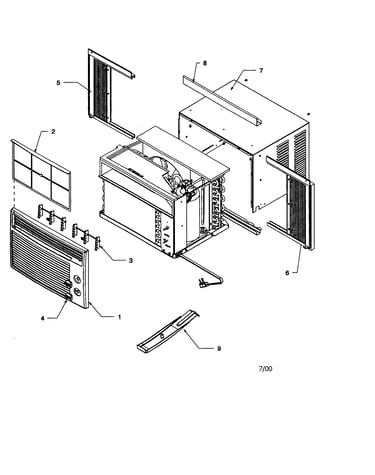

Outer case assembly diagram
Front Assembly (front Assembly Has Hot Stamped Graphics, No Logo Or Control Label Is Required.)
Part #BT3575000
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Power Switch
Part #BT1370803
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Installation Hardware
Part #BT1393207
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Strainer (p1225013r)
Part #3593804
The manufacturer no longer makes this part, and there's no substitute part
Compressor assembly diagram
Assembly; Suction Line (p1225013r)
Part #3593706
The manufacturer no longer makes this part, and there's no substitute part
Fan and control assembly diagram
Bulb Clip
Part #BT1531802
The manufacturer no longer makes this part, and there's no substitute part
