Model # 143541082 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143541082 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |

Fuel Line 29774
#118

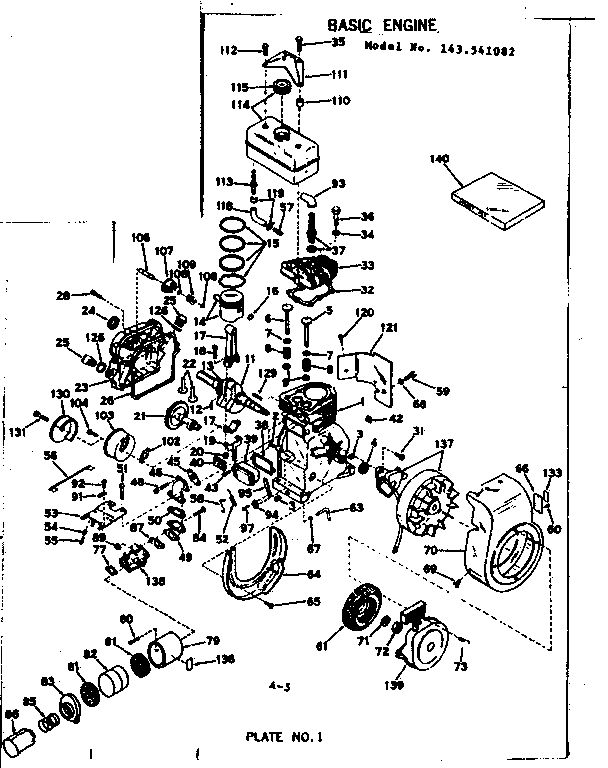

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 27276
#93

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Repair Kit 630974
#25

Carburetor diagram

Repair kit

Part #630974

Replaced by #631893A

?
Manufacturer substitution
This part replaces 630974. Substitute parts can look different from the original.
BEST SELLER
In Stock
Screw 28820
#80

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Carburetor O-ring 630740
#13

Carburetor diagram

Lawn & garden equipment engine carburetor o-ring

Part #630740

This item is not returnable
$3.30
30% OFF MSRP : $4.70
In Stock
Lawn & Garden Equipment Engine Carburetor Diaphragm 630978
#22

Carburetor diagram

Lawn & garden equipment engine carburetor diaphragm

Part #630978

This item is not returnable
$6.79
13% OFF Phone Price : $7.79
In Stock
Governor Gear Assembly 30591
#107

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Engine Carburetor Diaphragm Cover 630751
#23

Carburetor diagram

Lawn & garden equipment engine carburetor diaphragm cover

Part #630751

This item is not returnable
$7.90
44% OFF MSRP : $14.00
In Stock
Lawn & Garden Equipment Engine Carburetor Adjustment Screw Spring 630738
#11

Carburetor diagram

Lawn & garden equipment engine carburetor adjustment screw spring

Part #630738

This item is not returnable
In Stock
Lawn & Garden Equipment Washer 630739
#12

Carburetor diagram

Lawn & garden equipment washer

Part #630739

This item is not returnable
In Stock
