Model # B9C2HS/P9920816R Official Amana room air conditioner heat pump

Here are the diagrams and repair parts for Official Amana B9C2HS-P9920816R room air conditioner heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

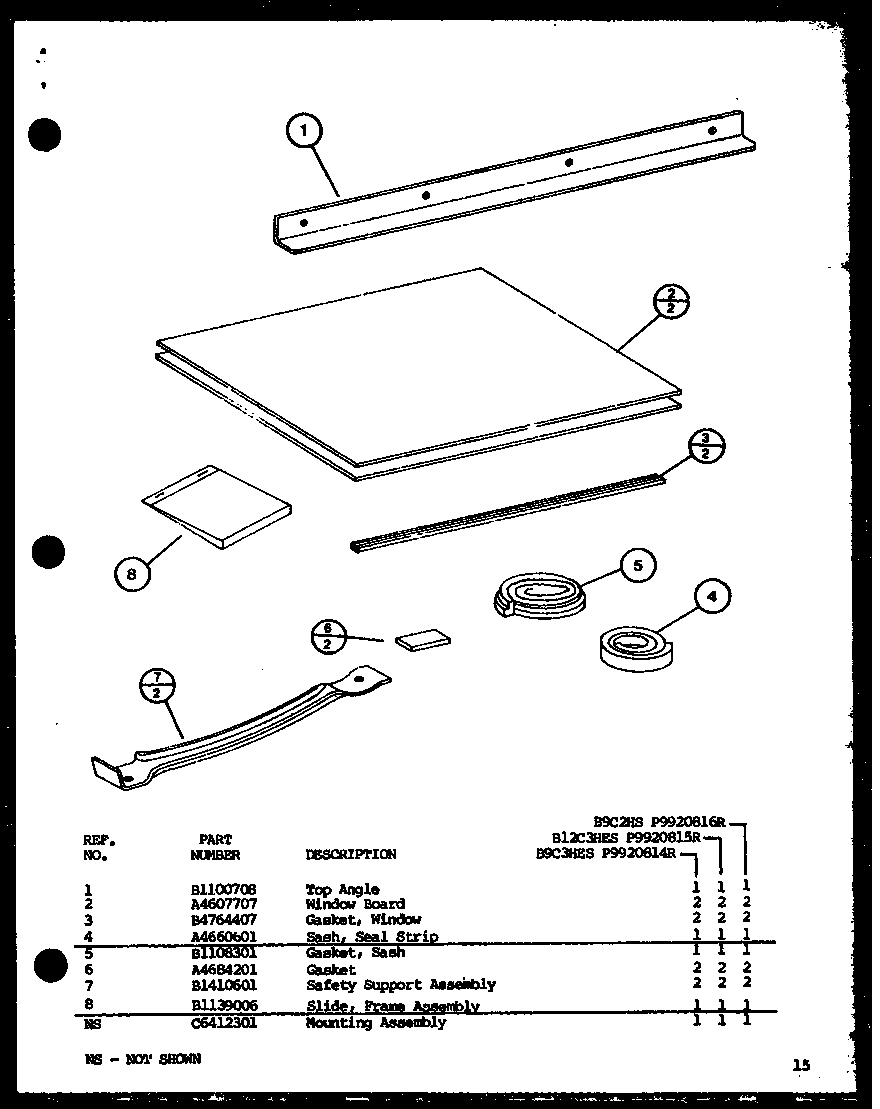

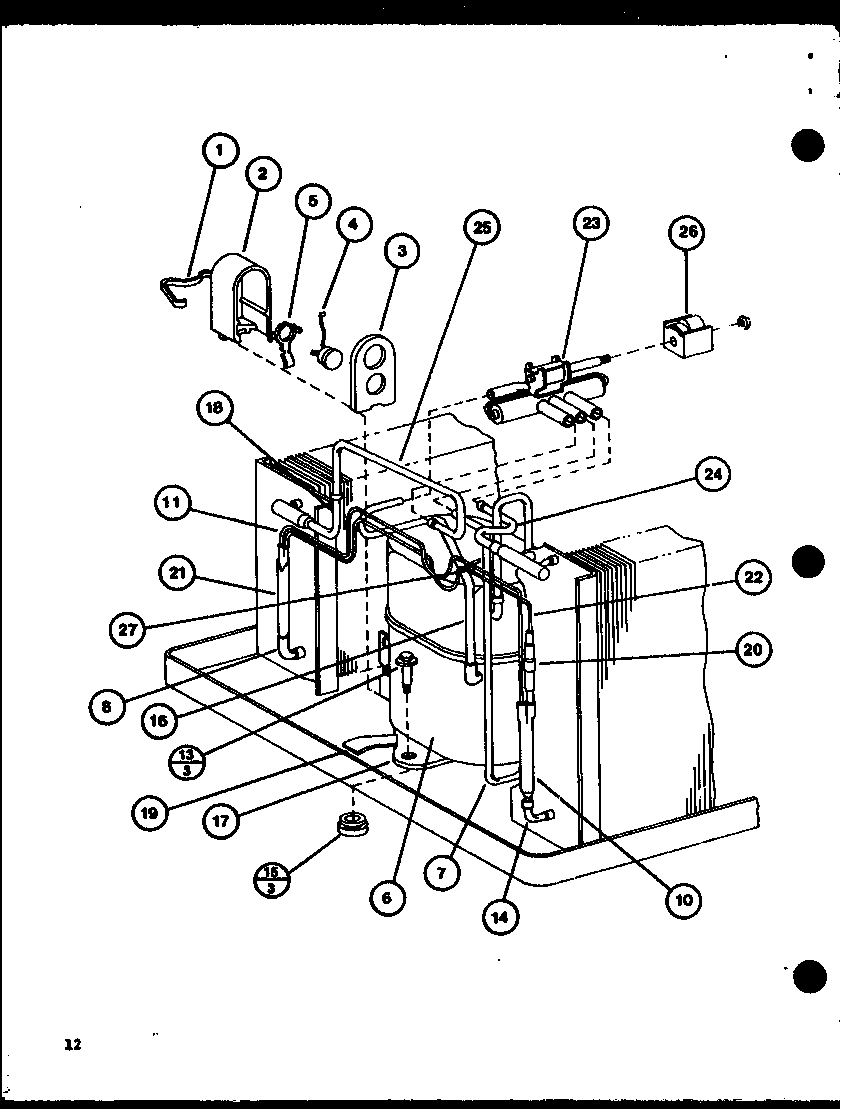

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Screw M0241118
#21B

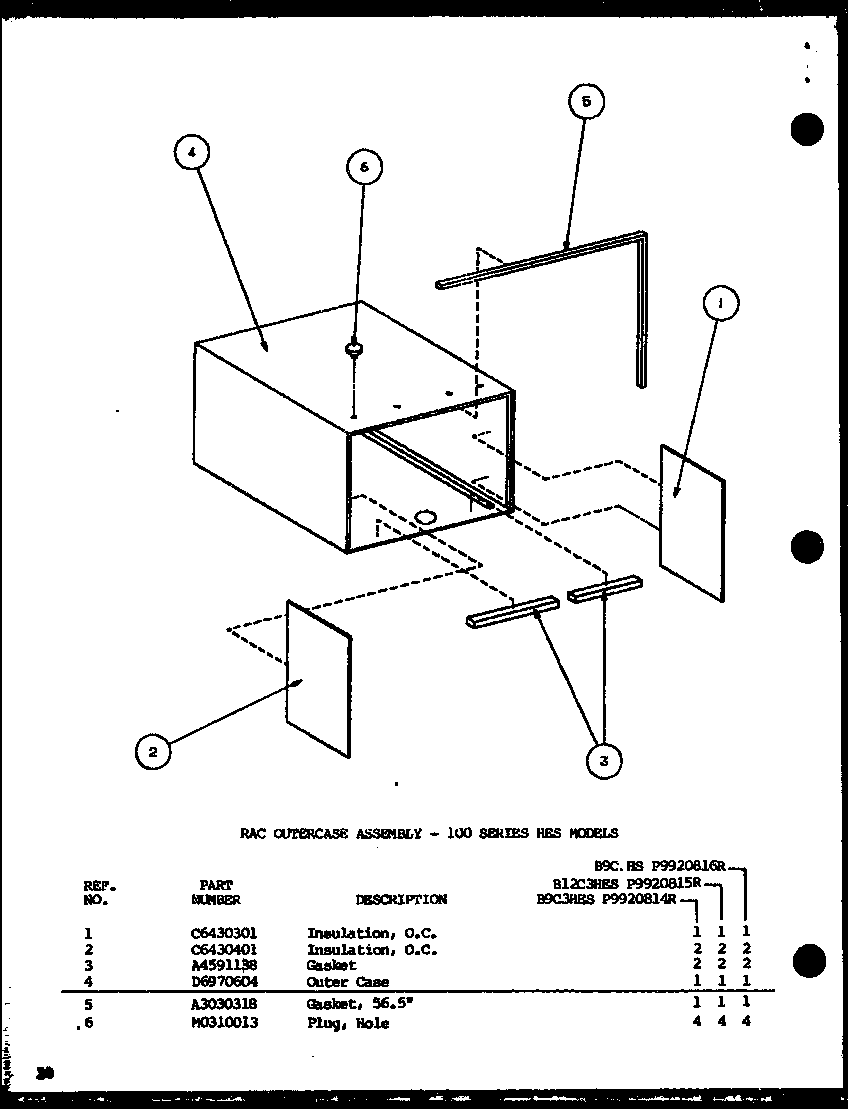

Exterior parts diagram

Screw

Part #M0241118

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0241118. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Terminal Nut A3436601
#5

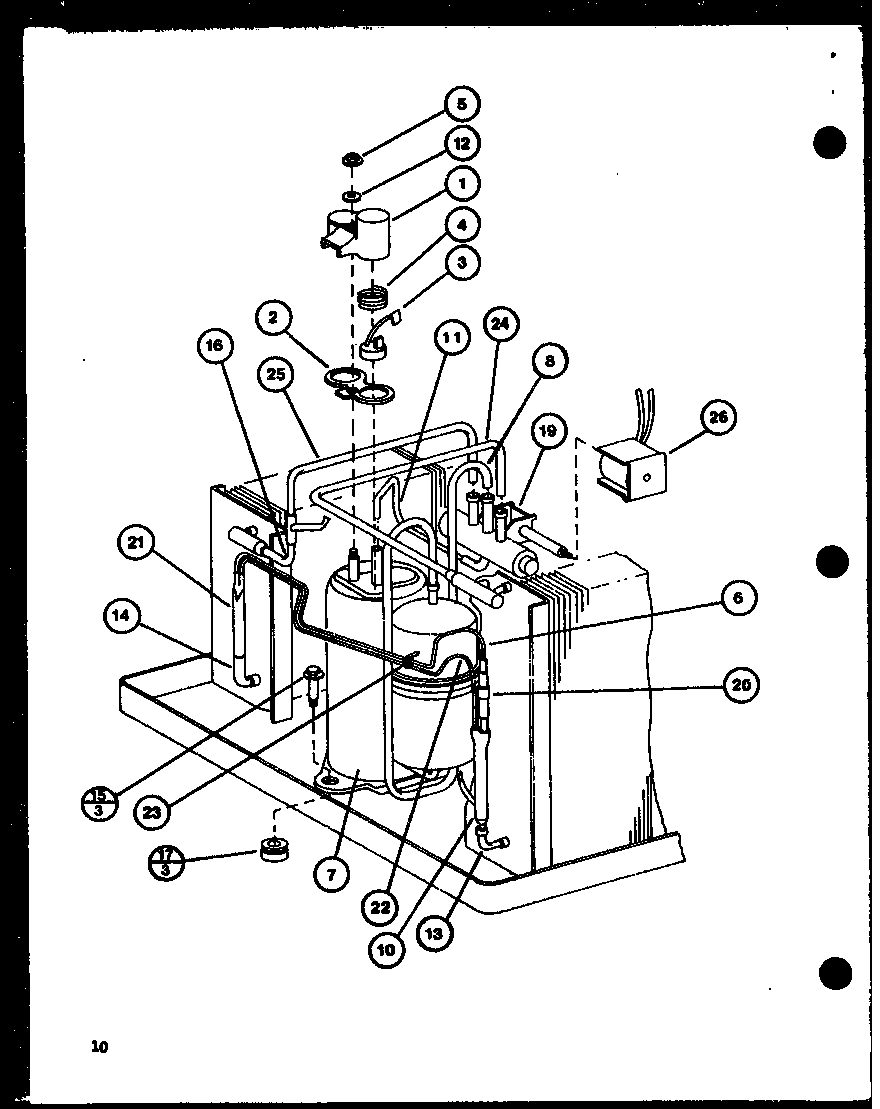

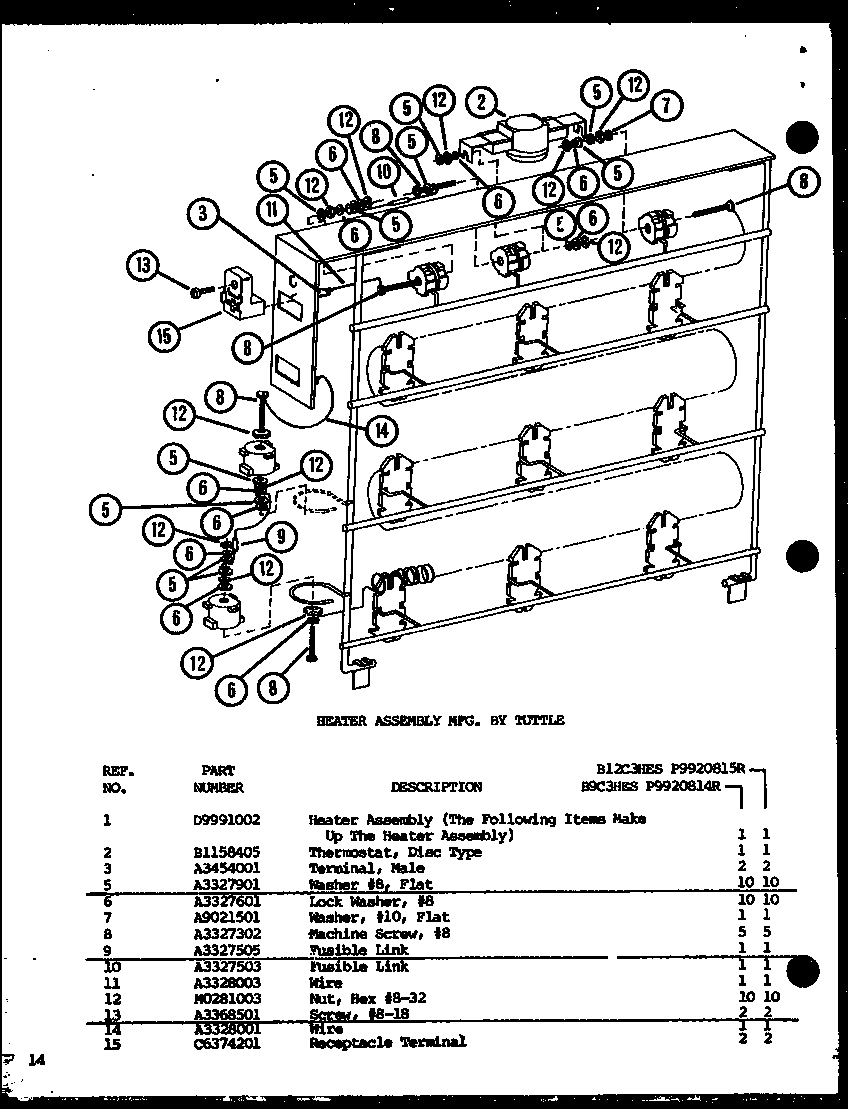

(b12c3hes/p9920815r) diagram

Terminal nut

Part #A3436601

Replaced by #WP776338

?
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
$11.34
In Stock
Tie M0321202
Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Frame Screw M0241116
#21A

Exterior parts diagram

Frame screw

Part #M0241116

Replaced by #WP693995

?
Manufacturer substitution
This part replaces M0241116. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
74% OFF MSRP : $17.00
In Stock
Screw M0211018
#24

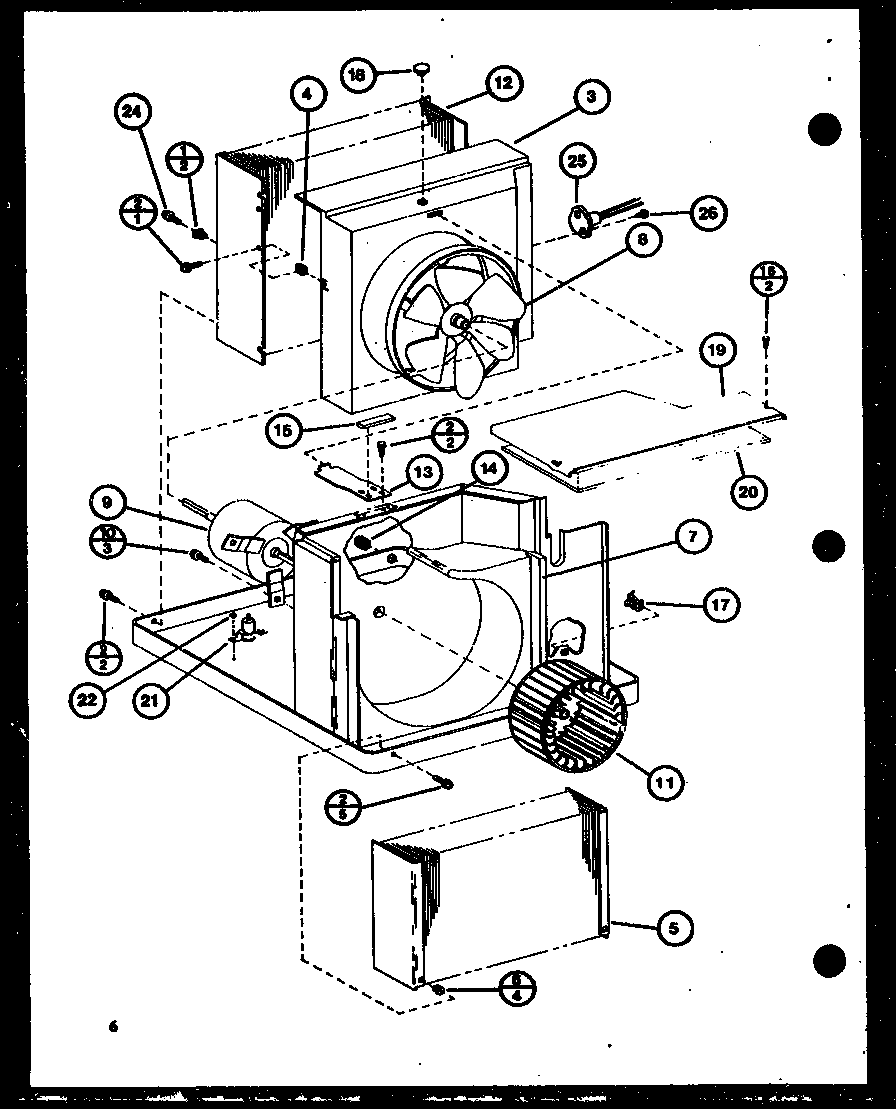

Evaporator and fan motor diagram

Screw

Part #M0211018

Replaced by #M0211018

?
Manufacturer substitution
This part replaces M0211018. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0245116
Screw

Part #M0245116

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces M0245116. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Use M2820-15 M0282013
#22

Evaporator and fan motor diagram

Use m2820-15

Part #M0282013

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282013. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0212517
#26

Evaporator and fan motor diagram

Screw

Part #M0212517

Replaced by #WPW10253196

?
Manufacturer substitution
This part replaces M0212517. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Control C6397701
#21

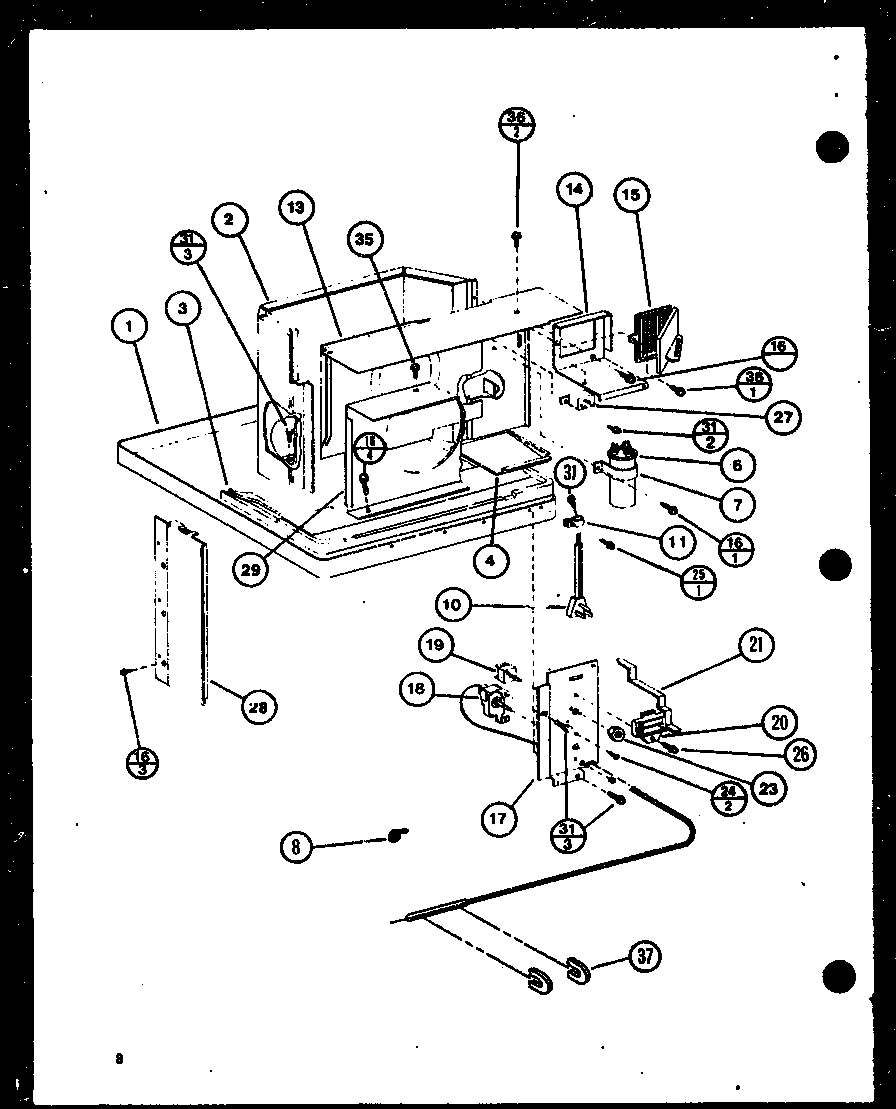

Interior parts diagram

Control

Part #C6397701

Replaced by #C6397701

?
Manufacturer substitution
This part replaces C6397701. Substitute parts can look different from the original.
$11.96
In Stock
Door D6948801
#15

Interior parts diagram

Door

Part #D6948801

The manufacturer no longer makes this part, and there's no substitute part
