Goldstar
Room Air Conditioner

Model # LW-E2132CL Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar LW-E2132CL room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

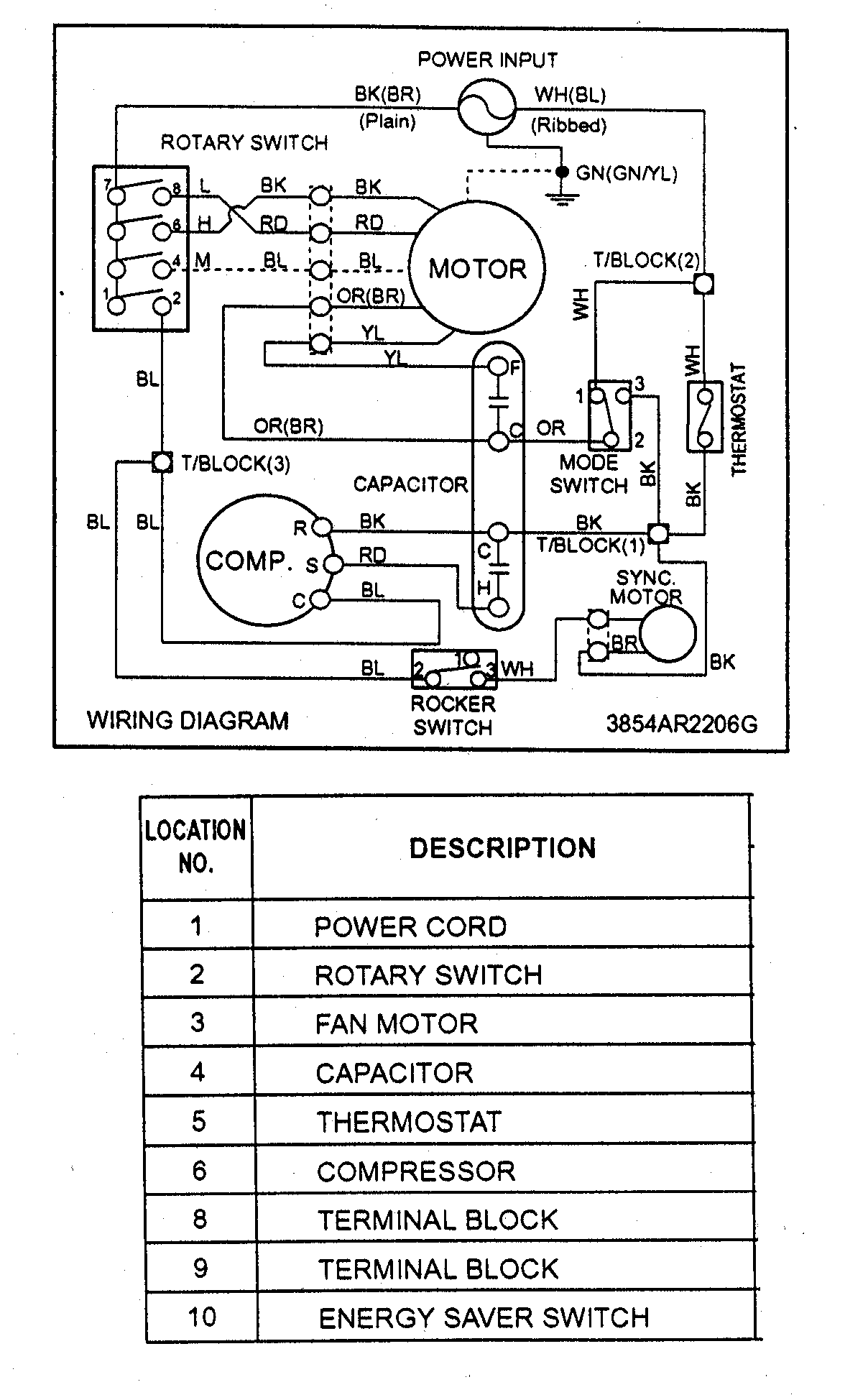

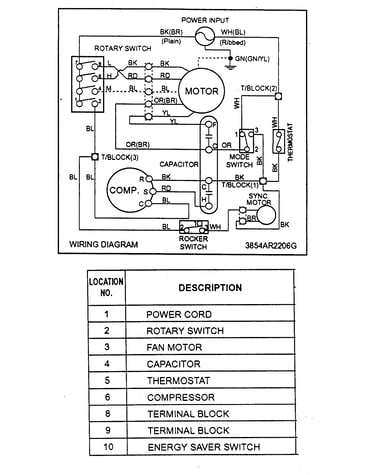

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Fan 5900AR1330A
#9011

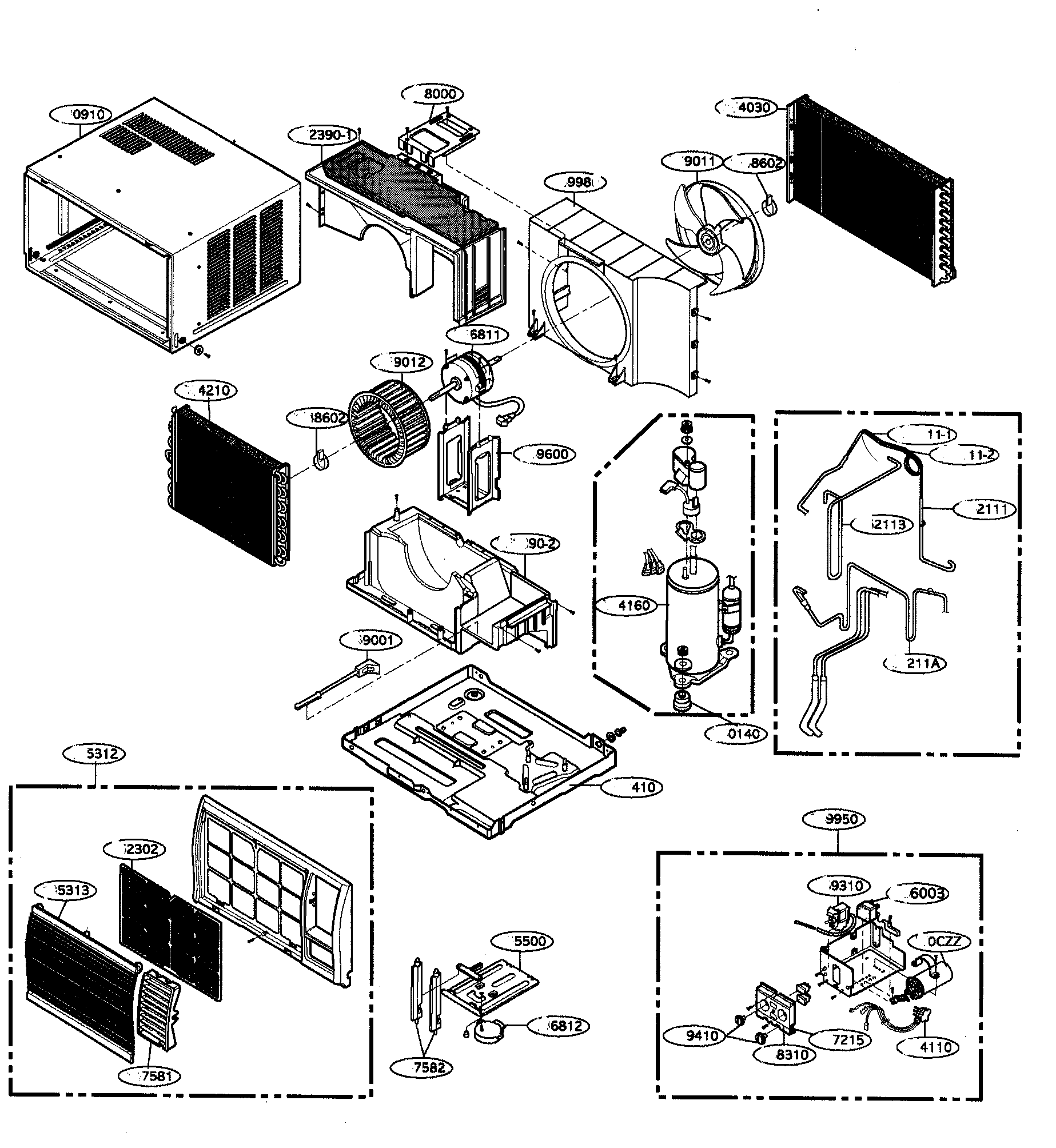

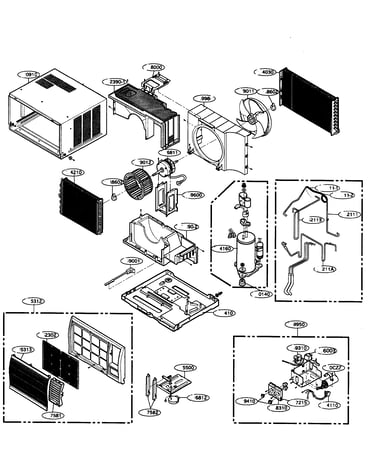

Cabinet parts diagram

Fan

Part #5900AR1330A

Replaced by #5900AR1508B

?
Manufacturer substitution
This part replaces 5900AR1330A. Substitute parts can look different from the original.
$38.76 |
11% OFF Phone Price : $43.76
In Stock
Rotary Switch 2H00598E
#6003

Cabinet parts diagram

Rotary switch

Part #2H00598E

$27.47
In Stock
Brkt,wshr 4810AR4155A
#8100

Cabinet parts diagram

Brkt,wshr

Part #4810AR4155A

This item is not returnable
$4.51
In Stock
Ac Cord 2H00677A
#4110

Cabinet parts diagram

Ac cord

Part #2H00677A

Replaced by #2H00677Q

?
Manufacturer substitution
This part replaces 2H00677A. Substitute parts can look different from the original.
$47.16 |
10% OFF Phone Price : $52.16
In Stock
Synchronous Motor 2H01102B
#6812

Cabinet parts diagram

Synchronous motor

Part #2H01102B

Replaced by #2H01102A

?
Manufacturer substitution
This part replaces 2H01102B. Substitute parts can look different from the original.
$24.09
In Stock
Thermostat 2H01109F
#9310

Cabinet parts diagram

Thermostat

Part #2H01109F

Replaced by #2H01109L

?
Manufacturer substitution
This part replaces 2H01109F. Substitute parts can look different from the original.
$31.05 |
14% OFF Phone Price : $36.05
In Stock
Capacitor 6120AR2359B
#CZZ

Cabinet parts diagram

Capacitor

Part #6120AR2359B

Replaced by #6120AR2194F

?
Manufacturer substitution
This part replaces 6120AR2359B. Substitute parts can look different from the original.
$105.92
In Stock
Vertical Louver 4758AR2945A
#7581

Cabinet parts diagram

Vertical louver

Part #4758AR2945A

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 5421AR2251B
#4210

Cabinet parts diagram

Evaporator

Part #5421AR2251B

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount 4960AR2895A
#9600

Cabinet parts diagram

Motor mount

Part #4960AR2895A

The manufacturer no longer makes this part, and there's no substitute part
