KitchenAid KMBS730SBE00 built-in microwave Parts

Here are the diagrams and repair parts for KitchenAid KMBS730SBE00 built-in microwave, as well as links to manuals and error code tables, if available.

KitchenAid KMBS730SBE00 built-in microwave
By Schematic
By Part

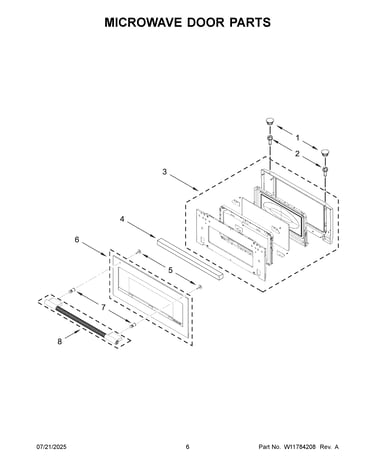

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KMBS730SBE00 Microwaves

  • Microwave Door Interlock Switch for KitchenAid KMBS730SBE00 - Part W10211972

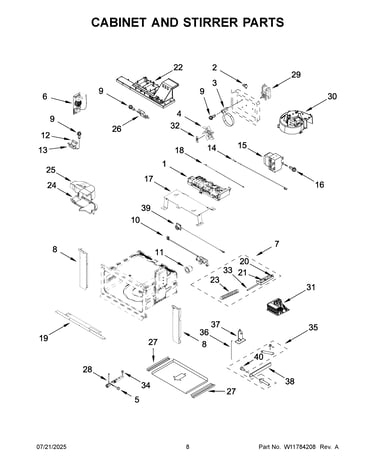

    Cabinet and stirrer parts diagram

    Switch

    Part #461967848881

    Replaced by #W10211972

    Info Icon
    Manufacturer substitution
    This part replaces 461967848881. Substitute parts can look different from the original.
    In Stock
    $37.39
    14% OFF Phone Price : $43.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor for KitchenAid KMBS730SBE00 - Part W10911403

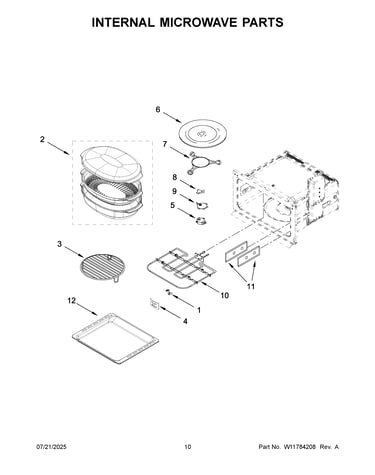

    Internal microwave parts diagram

    Microwave Turntable Motor

    Part #461967848971

    Replaced by #W10911403

    Info Icon
    Manufacturer substitution
    This part replaces 461967848971. Substitute parts can look different from the original.
    In Stock
    $89.68
    6% OFF Phone Price : $95.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Inverter Meg for KitchenAid KMBS730SBE00 - Part W11578579

    Cabinet and stirrer parts diagram

    Inverter

    Part #W11504539

    Replaced by #W11578579

    Info Icon
    Manufacturer substitution
    This part replaces W11504539. Substitute parts can look different from the original.
    In Stock
    $241.18
    Minus Item
    Qty
    Plus Item
  • Microwave Waveguide Cover for KitchenAid KMBS730SBE00 - Part W10915651

    Internal microwave parts diagram

    O Mica Plate

    Part #461967451001

    Replaced by #W10915651

    Info Icon
    Manufacturer substitution
    This part replaces 461967451001. Substitute parts can look different from the original.
    In Stock
    $48.49
    11% OFF Phone Price : $54.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Element Clip for KitchenAid KMBS730SBE00 - Part W11724411

    Internal microwave parts diagram

    Lock Spring

    Part #252262898008

    Replaced by #W11724411

    Info Icon
    Manufacturer substitution
    This part replaces 252262898008. Substitute parts can look different from the original.
    In Stock
    $70.97
    Minus Item
    Qty
    Plus Item
  • Microwave Element Clip for KitchenAid KMBS730SBE00 - Part W11724411

    Internal microwave parts diagram

    Whirlpool Wall Oven Microwave Element Clip

    Part #461967753871

    Replaced by #W11724411

    Info Icon
    Manufacturer substitution
    This part replaces 461967753871. Substitute parts can look different from the original.
    In Stock
    $70.97
    Minus Item
    Qty
    Plus Item
  • Microwave Element Clip for KitchenAid KMBS730SBE00 - Part W11724411

    Cabinet and stirrer parts diagram

    Nut

    Part #W10120233

    Replaced by #W11724411

    Info Icon
    Manufacturer substitution
    This part replaces W10120233. Substitute parts can look different from the original.
    In Stock
    $70.97
    Minus Item
    Qty
    Plus Item
  • Microwave Sliding Arm Bracket Assembly for KitchenAid KMBS730SBE00 - Part WPW10128850

    Cabinet and stirrer parts diagram

    Arm

    Part #W10128850

    Replaced by #WPW10128850

    Info Icon
    Manufacturer substitution
    This part replaces W10128850. Substitute parts can look different from the original.
    In Stock
    $64.04
    9% OFF Phone Price : $70.04Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Sliding Arm Bracket Assembly for KitchenAid KMBS730SBE00 - Part WPW10128850

    Cabinet and stirrer parts diagram

    Flange Bushing

    Part #461967510191

    Replaced by #WPW10128850

    Info Icon
    Manufacturer substitution
    This part replaces 461967510191. Substitute parts can look different from the original.
    In Stock
    $64.04
    9% OFF Phone Price : $70.04Info Icon
    Minus Item
    Qty
    Plus Item
  • Thrmst-fix for KitchenAid KMBS730SBE00 - Part W11607085

    Cabinet and stirrer parts diagram

    Therm 36txe2

    Part #423107845441

    Replaced by #W11607085

    Info Icon
    Manufacturer substitution
    This part replaces 423107845441. Substitute parts can look different from the original.
    In Stock
    $27.19
    18% OFF Phone Price : $33.19Info Icon
    Minus Item
    Qty
    Plus Item
