Hoover
Floor Scrubber

Model # H3012-020 Official Hoover floor scrubber

Here are the diagrams and repair parts for Official Hoover H3012-020 floor scrubber, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |

Duct 59177114
#70

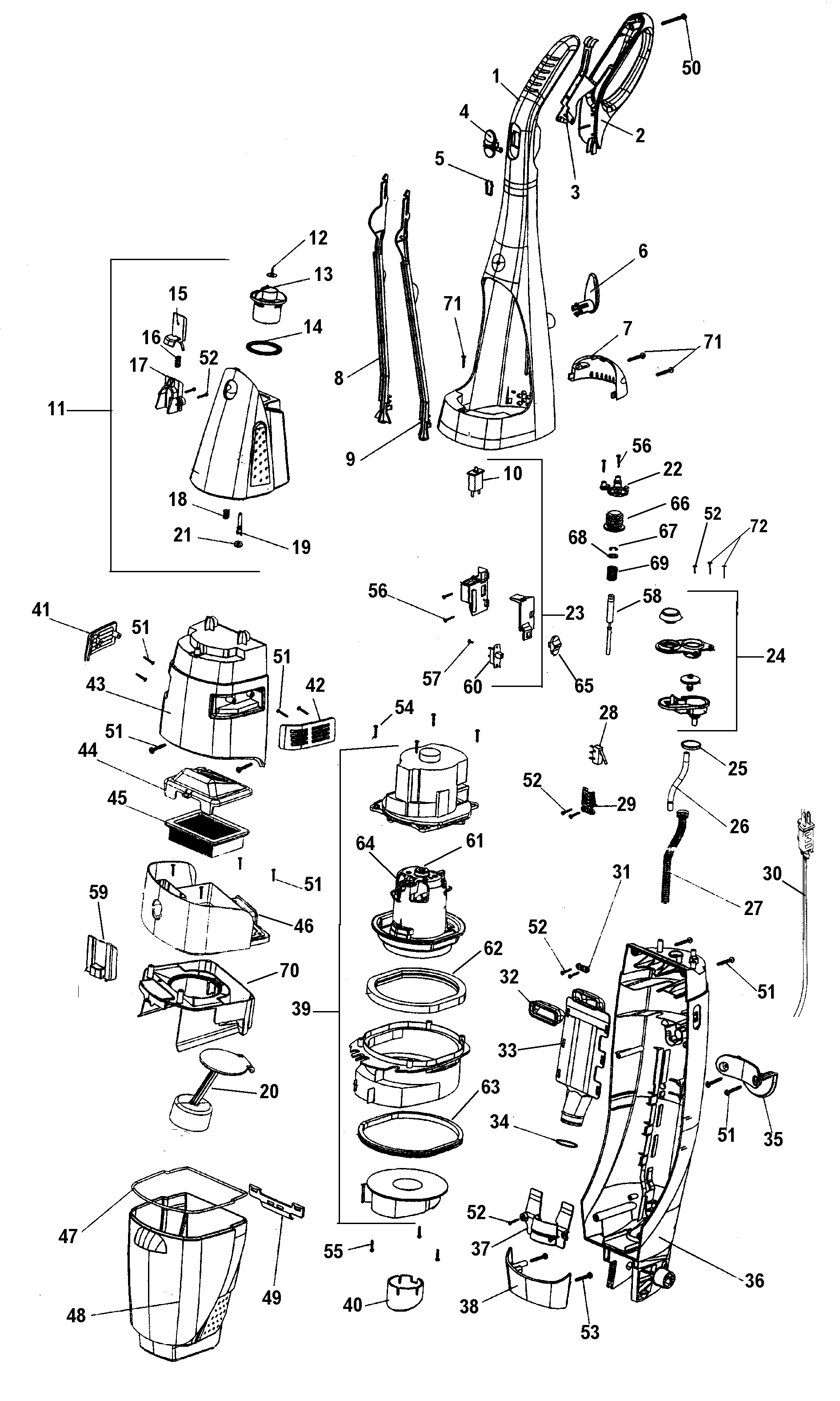

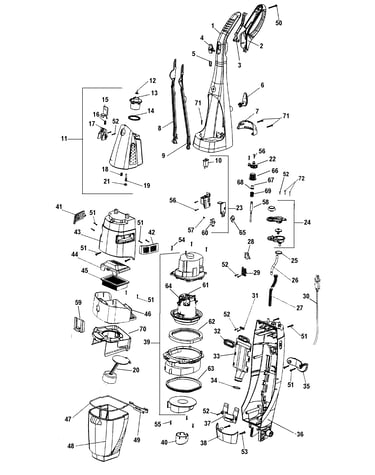

Motor, mainhsg_upper, handle, tank diagram

Duct

Part #59177114

The manufacturer no longer makes this part, and there's no substitute part

Louver Rh 59177018
#41

Motor, mainhsg_upper, handle, tank diagram

Louver rh

Part #59177018

The manufacturer no longer makes this part, and there's no substitute part

Louver Lh 59177017
#42

Motor, mainhsg_upper, handle, tank diagram

Louver lh

Part #59177017

The manufacturer no longer makes this part, and there's no substitute part

Floor Scrubber Front Wheel Assembly 59177041
#21

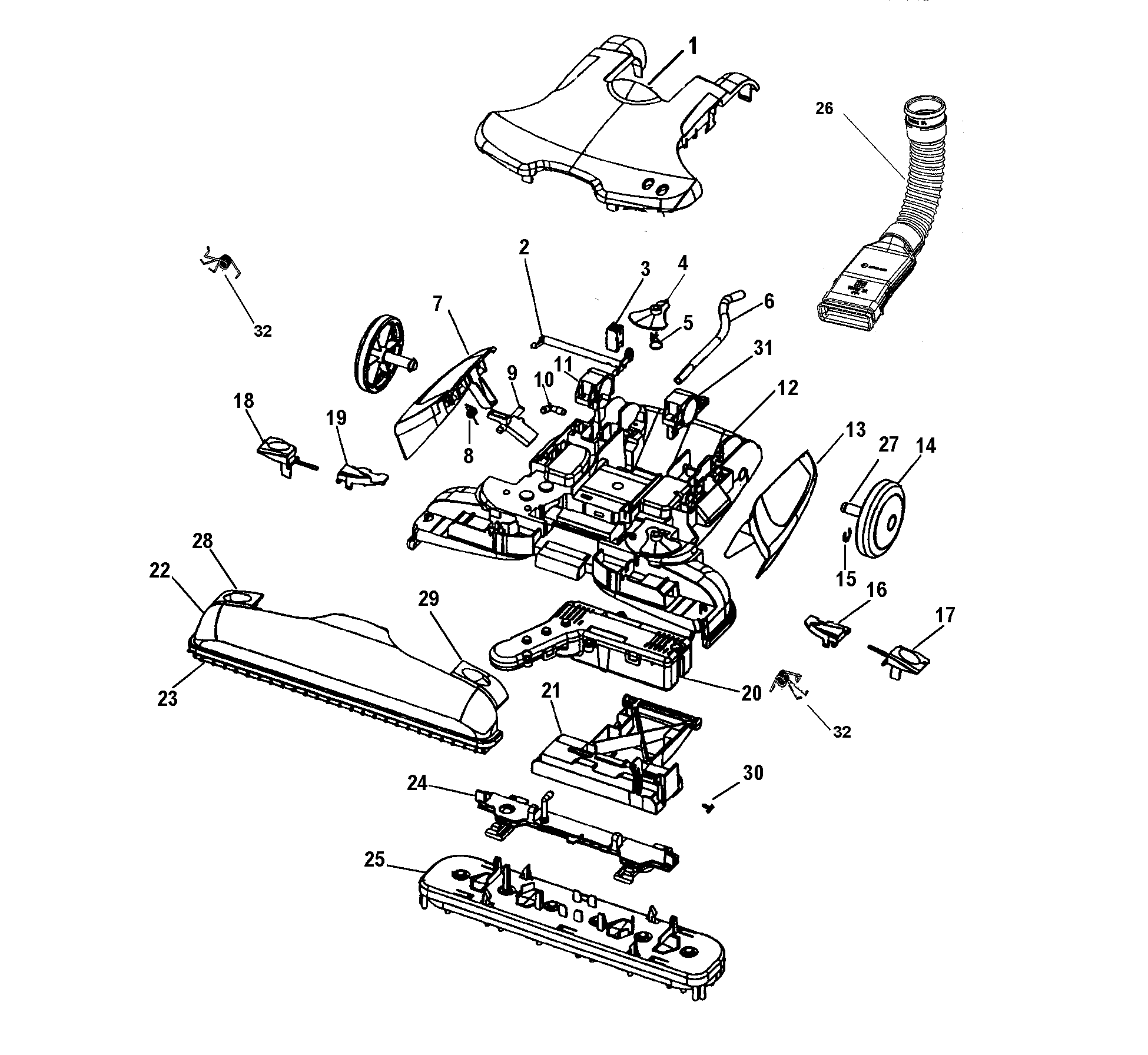

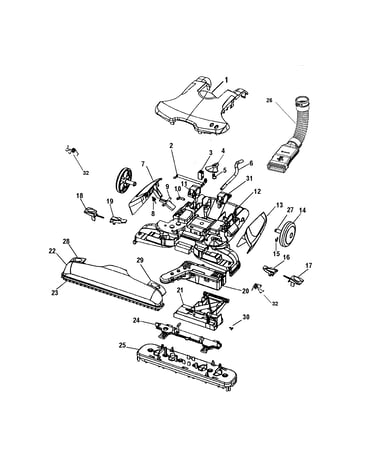

Mainhsg_lower, mainbody, hood diagram

Floor scrubber front wheel assembly

Part #59177041

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Brush Control Rod 59177167
#9

Motor, mainhsg_upper, handle, tank diagram

Carpet cleaner brush control rod

Part #59177167

The manufacturer no longer makes this part, and there's no substitute part

Spring 59177276
#32

Mainhsg_lower, mainbody, hood diagram

Spring

Part #59177276

The manufacturer no longer makes this part, and there's no substitute part

Distributor 59177153
#24

Mainhsg_lower, mainbody, hood diagram

Distributor

Part #59177153

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor 59177074
#39

Motor, mainhsg_upper, handle, tank diagram

Vacuum motor

Part #59177074

The manufacturer no longer makes this part, and there's no substitute part

Handle Screw 59177100
#52

Motor, mainhsg_upper, handle, tank diagram

Handle screw

Part #59177100

The manufacturer no longer makes this part, and there's no substitute part

Floormate Brush Block 59177038
#25

Mainhsg_lower, mainbody, hood diagram

Floormate brush block

Part #59177038

The manufacturer no longer makes this part, and there's no substitute part
