Model # 315116090 Official Craftsman dustless detail sander

Here are the diagrams and repair parts for Official Craftsman 315116090 dustless detail sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Rubber Pad 973005-001
#2

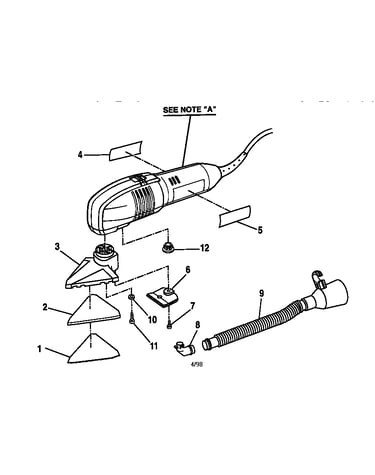

Rubber pad assembly diagram

Rubber pad

Part #973005-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 931868-008
#10

Rubber pad assembly diagram

Washer

Part #931868-008

The manufacturer no longer makes this part, and there's no substitute part

Dust Cover 972980-001
#12

Rubber pad assembly diagram

Dust cover

Part #972980-001

The manufacturer no longer makes this part, and there's no substitute part

Hose 972994-001
#9

Rubber pad assembly diagram

Hose

Part #972994-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 967273-001
#7

Rubber pad assembly diagram

Screw

Part #967273-001

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 973431-001
#8

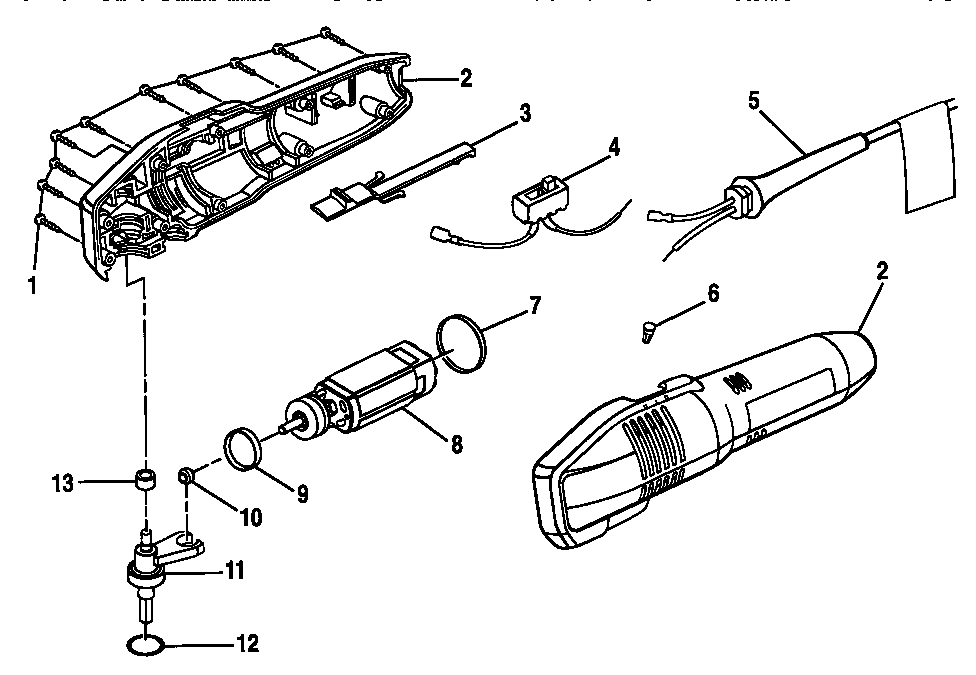

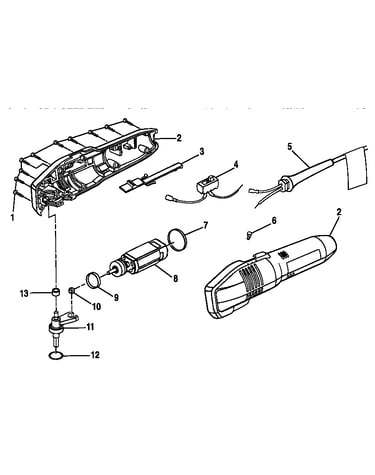

Housing assembly diagram

Motor assembly

Part #973431-001

The manufacturer no longer makes this part, and there's no substitute part

Ring 973894-002
#9

Housing assembly diagram

Ring

Part #973894-002

The manufacturer no longer makes this part, and there's no substitute part

Pivot Shaft Assembly (includes Key No 10) 9726263-000
#11

Housing assembly diagram

Pivot shaft assembly (includes key no 10)

Part #9726263-000

The manufacturer no longer makes this part, and there's no substitute part

Ring 973894-001
#7

Housing assembly diagram

Ring

Part #973894-001

The manufacturer no longer makes this part, and there's no substitute part

Hosuing As 975630-001
#2

Housing assembly diagram

Hosuing as

Part #975630-001

The manufacturer no longer makes this part, and there's no substitute part
