CONFIRM THE PART FITS
Part Information

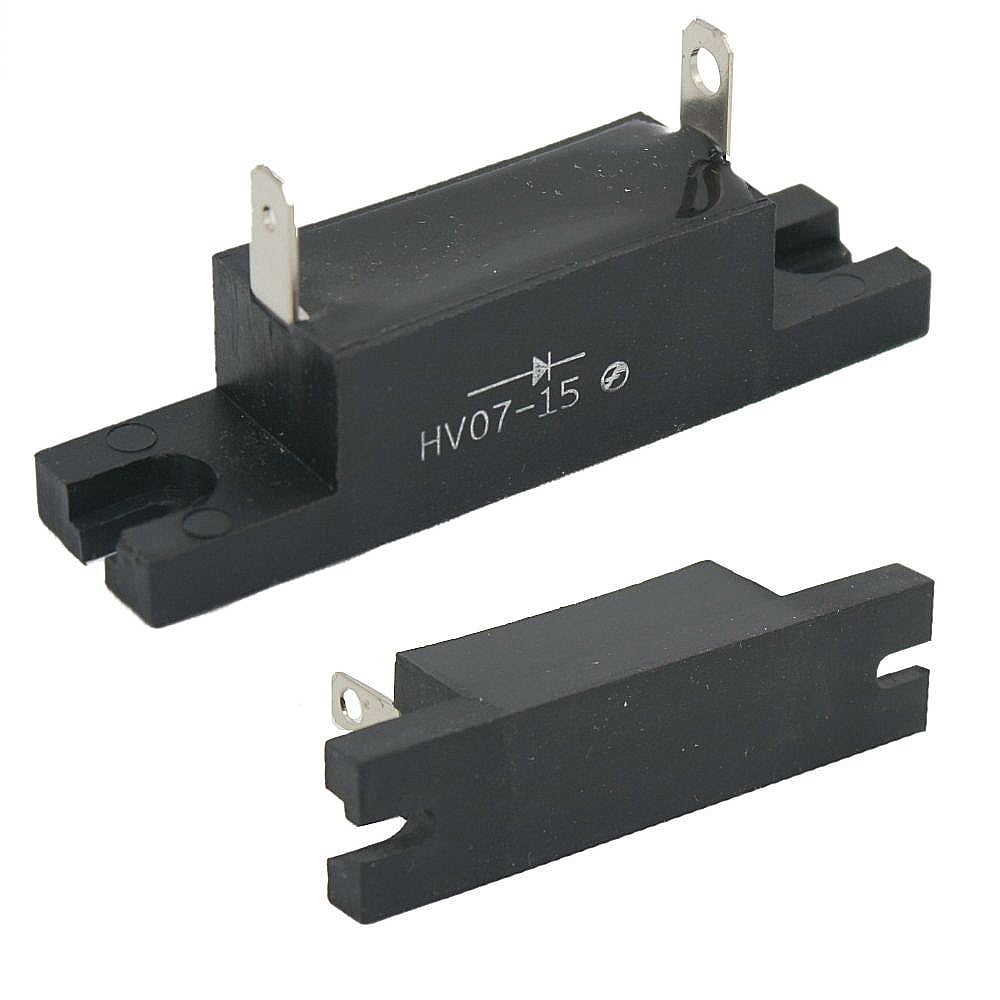

This diode (part number 505206) is for microwaves.
Diode 505206 is an electrical current control device inside the microwave.
Because high-voltage capacitors in a microwave can retain a lethal electrical charge even when the microwave is unplugged, a service technician should install this part.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #5649968012 Kenmore countertop microwave | 5649968012 | Swithces and microwave parts |
| Model #5649968011 Kenmore countertop microwave | 5649968011 | Swithces and microwave parts |
| Model #CMT227N-01 Thermador electric wall oven | CMT227N-01 | Blower assembly |
| Model #CMT227 Thermador range/microwave combo | CMT227 | Blower assembly |
| Model #5649978010 Kenmore countertop microwave | 5649978010 | Cavity parts |
| Model #5649998010 Kenmore countertop microwave | 5649998010 | Switches and microwave parts |
| Model #DM301ES01 Thermador wall oven/microwave combo | DM301ES01 | Pcb assy |
| Model #CM301S Thermador electric range | CM301S | Cm upper plenum microwave parts |
| Model #MC11 Thermador countertop microwave | MC11 | All parts |
| Model #CMT21 SVC CODE J Thermador range/microwave combo | CMT21 SVC CODE J | Internal |
