Part Information

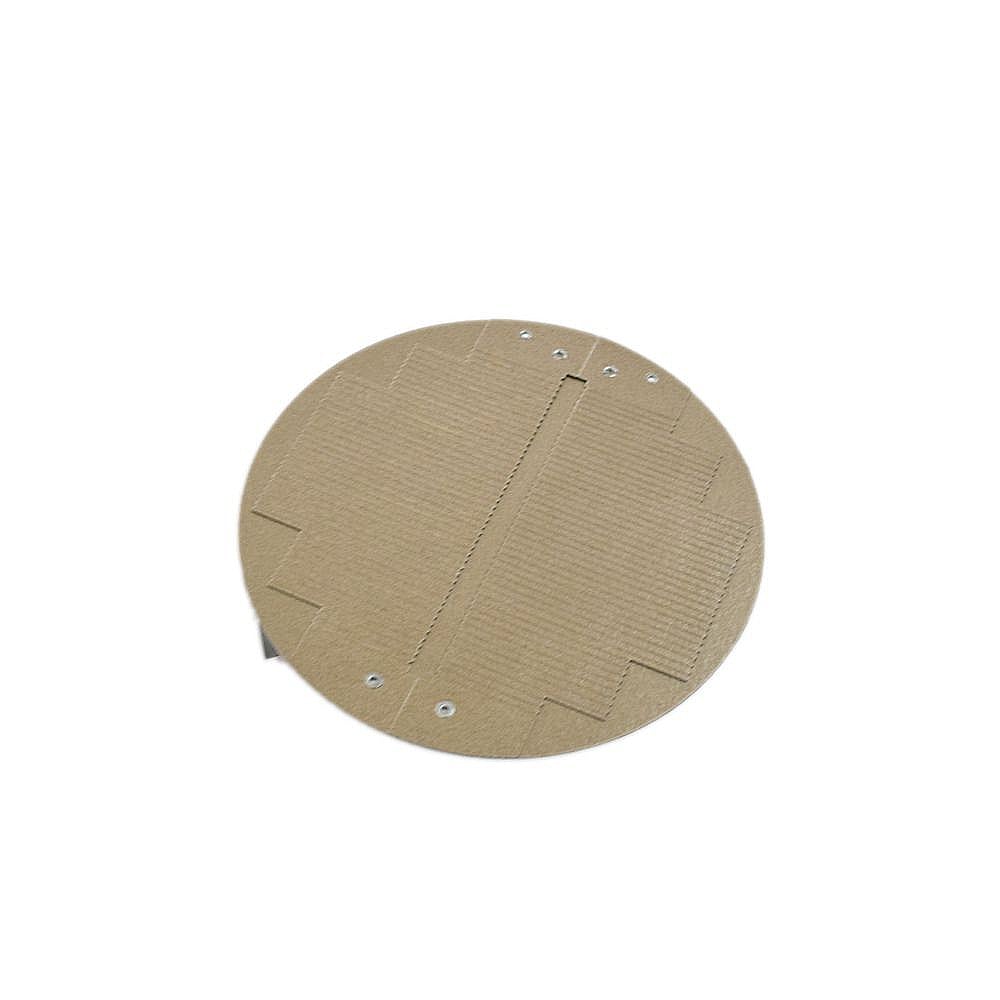

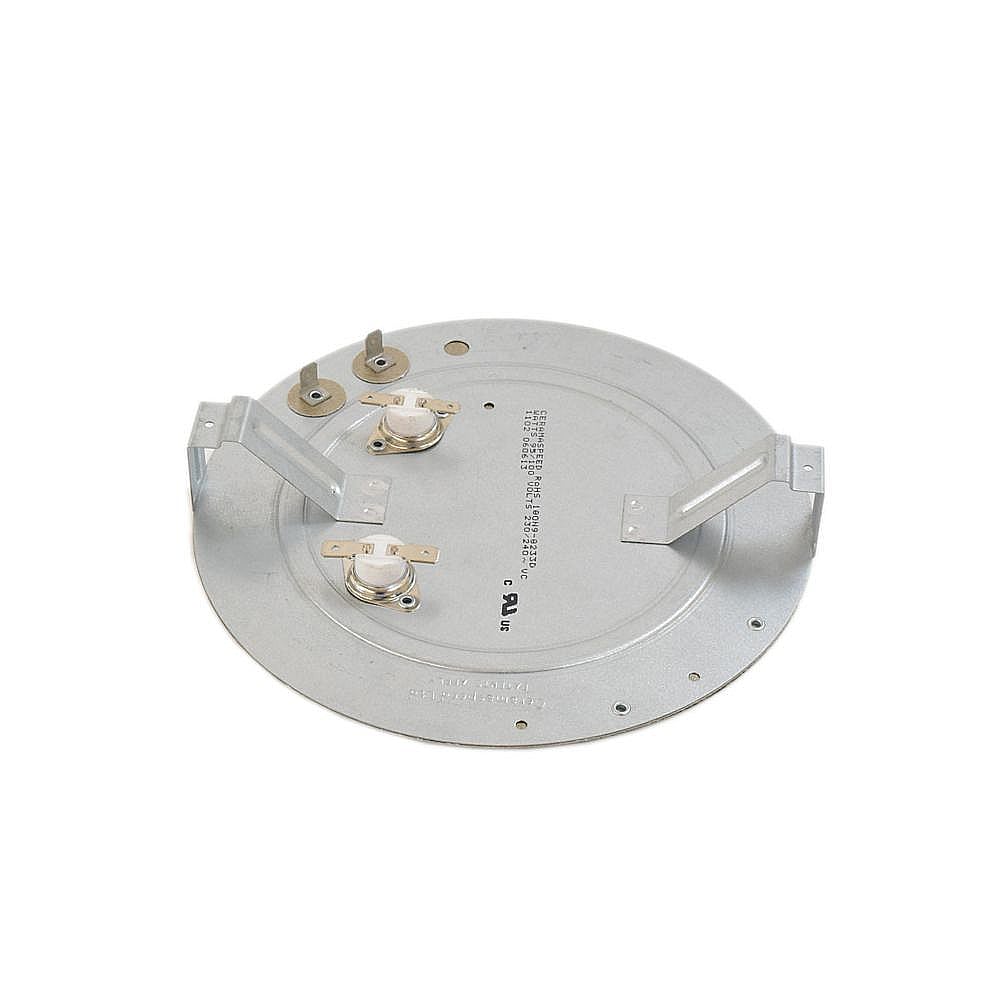

This surface element (part number DG47-00024A) is for ranges.
Surface element DG47-00024A supplies the heat to a cooking area on top of the range.
Unplug the range or shut off the house circuit breaker for the range before installing this part. Wear work gloves to protect your hands.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #FTQ387LWGX/XAA Samsung electric range | FTQ387LWGX/XAA | Cooktop assy |
| Model #FE710DRS/XAA-03 Samsung electric range | FE710DRS/XAA-03 | Cooktop |
| Model #FE710DRS/XAA-02 Samsung electric range | FE710DRS/XAA-02 | Cooktop |
| Model #FE710DRS/XAA-01 Samsung electric range | FE710DRS/XAA-01 | Top assy |
| Model #FTQ353IWUW/XAA-00 Samsung electric range | FTQ353IWUW/XAA-00 | Cooktop assy |
| Model #FTQ352IWUW/XAA-03 Samsung electric range | FTQ352IWUW/XAA-03 | Burner assy |
| Model #FCQ321HTUX/XAA-00 Samsung electric range | FCQ321HTUX/XAA-00 | Top assy |
| Model #FTQ353IWUB/XAA-00 Samsung electric range | FTQ353IWUB/XAA-00 | Cooktop assy |
| Model #FTQ352IWUB/XAA-00 Samsung electric range | FTQ352IWUB/XAA-00 | Cooktop assy |
| Model #FTQ353IWUX/XAA-00 Samsung electric range | FTQ353IWUX/XAA-00 | Cooktop assy |
