Part Information

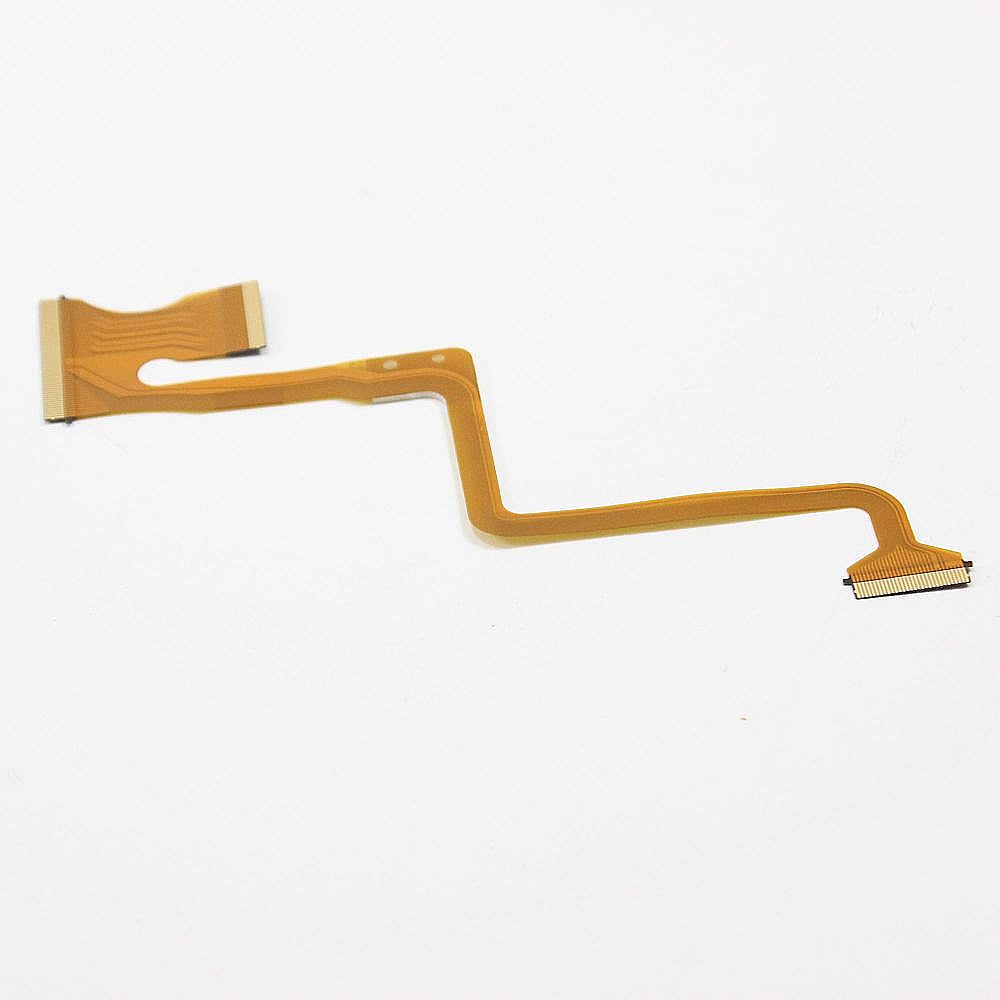

This ribbon cable (part number QAL1156-001) is for camcorders.
Ribbon cable QAL1156-001 transmits signals between circuit boards in the camcorder.
Because the camcorder contains capacitors that can retain a lethal electrical charge even when the camcorder is unplugged, a service technician should install this part.
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #GZ-HM200AUS JVC digital camcorder | GZ-HM200AUS | Upper assy |
Model #GZ-HM200RUS JVC digital camcorder | GZ-HM200RUS | Upper assy |
Model #GZ-HM200BUS JVC digital camcorder | GZ-HM200BUS | Upper assy |
Model #GZ-MS120RUS JVC digital camcorder | GZ-MS120RUS | Lcd assy |
Model #GZ-MS120AUS JVC digital camcorder | GZ-MS120AUS | Lcd assy |
