CONFIRM THE PART FITS
Part Information

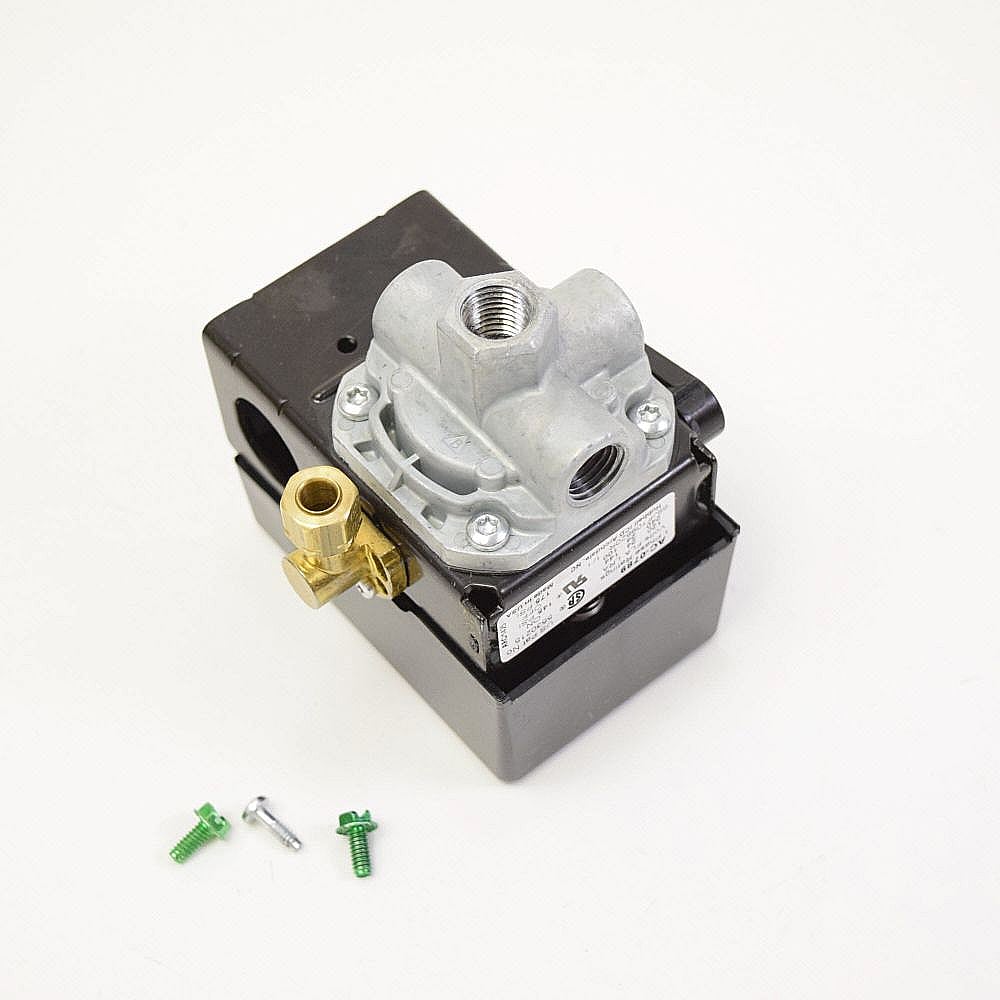

This pressure switch (part number 5140112-24) is for air compressors.
Pressure switch 5140112-24 turns the air compressor pump on and off to regulate tank air pressure.
Unplug the air compressor and bleed the air pressure from the tank before installing this part.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #919167780 Craftsman air compressor | 919167780 | Cabinet parts |
| Model #919167770 Craftsman air compressor | 919167770 | Air compressor diagram |
Reviews
Description lacked critical info.
The order shipped and was delivered promptly. The part fit properly and looked just like the one in the picture. So far, so good. The problem is that my original had on/off psi of about 115-125. This one is 145-175, my tank is rated at 150psi, so this was a problem. I ended up dialing the adjustment screw down to the point where I'm not sure if it's still within the recommended range on the switch. Time will tell. The pressure range of the switch IS NOT LISTED IN THE DESCRIPTION. This is an important piece of information, so it cost you a star.
L-mech, SF Bay Area
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
took some time to install, but not too difficult
after installing the part and starting the compressor, the new part leaked air from the same valve as the switch I was replacing.
wojo1, new york
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Intermediate install
Should come with thread sealant since it's necessary for the install. The switch assembly has to be removed/installed in order because otherwise you can't spin the attached parts to remove them. It's fairly easy to figure out that order as you go (remove each obstruction...then replace in reverse order), but it would be nice to have instructions. Wiring is tricky to see if you can't move the compressor into open space. Take a picture of the wiring before you disconnect and use a mirror to help reinstall.
BoostmasterK, Paramus NJ
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
