Part Information

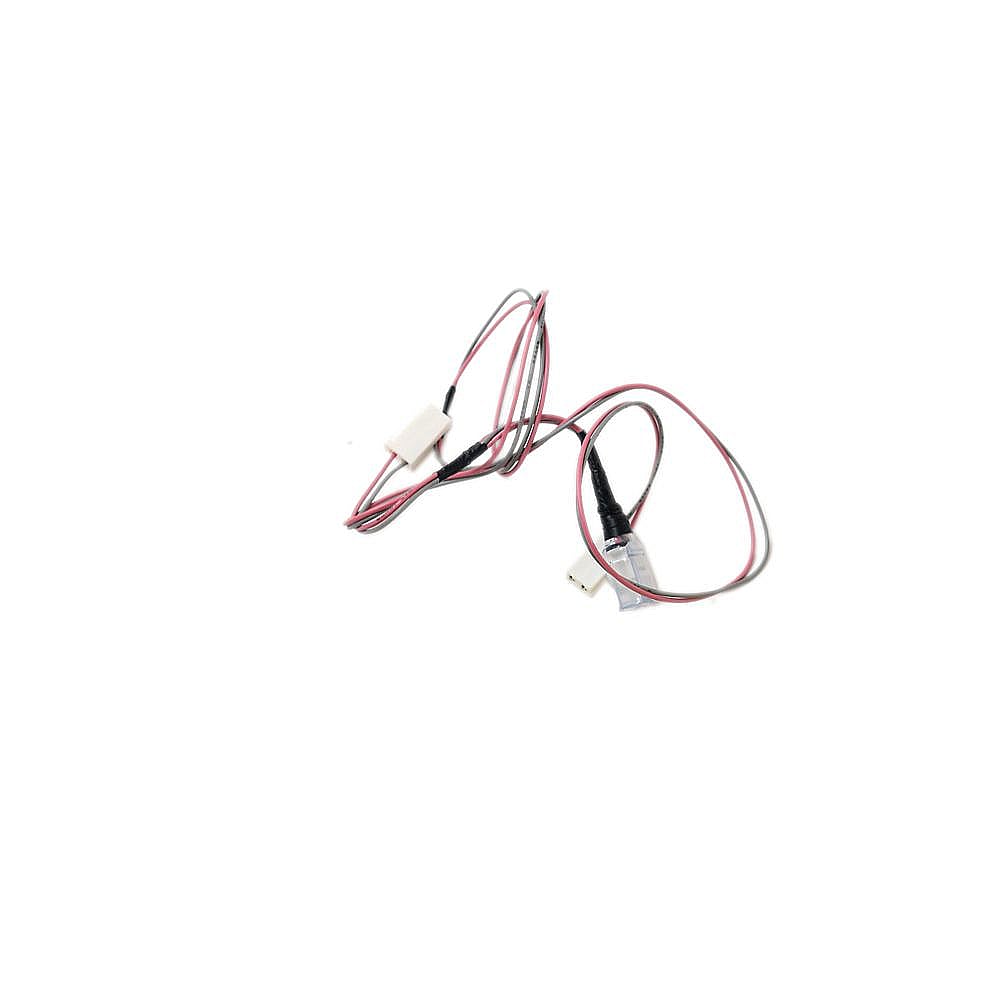

This door switch wire harness (part number 3012770300) is for refrigerators.
Door switch wire harness 3012770300 connects the light switch to electrical circuits in the refrigerator.
Unplug the refrigerator and safely store any food that could deteriorate while the power is off before installing this part. Wear work gloves to protect your hands.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #11175507020 Kenmore bottom-mount refrigerator | 11175507020 | Cabinet |
| Model #11175035020 Kenmore bottom-mount refrigerator | 11175035020 | Cabinet |
| Model #11175032020 Kenmore bottom-mount refrigerator | 11175032020 | Cabinet |
| Model #11175505020 Kenmore bottom-mount refrigerator | 11175505020 | Cabinet |
| Model #11175039020 Kenmore bottom-mount refrigerator | 11175039020 | Cabinet |
| Model #11173309911 Kenmore bottom-mount refrigerator | 11173309911 | Cabinet |
| Model #11173305910 Kenmore bottom-mount refrigerator | 11173305910 | Cabinet |
| Model #11173302911 Kenmore bottom-mount refrigerator | 11173302911 | Cabinet |
| Model #11173302910 Kenmore bottom-mount refrigerator | 11173302910 | Cabinet |
| Model #11173309910 Kenmore bottom-mount refrigerator | 11173309910 | Cabinet |
