CONFIRM THE PART FITS
Part Information

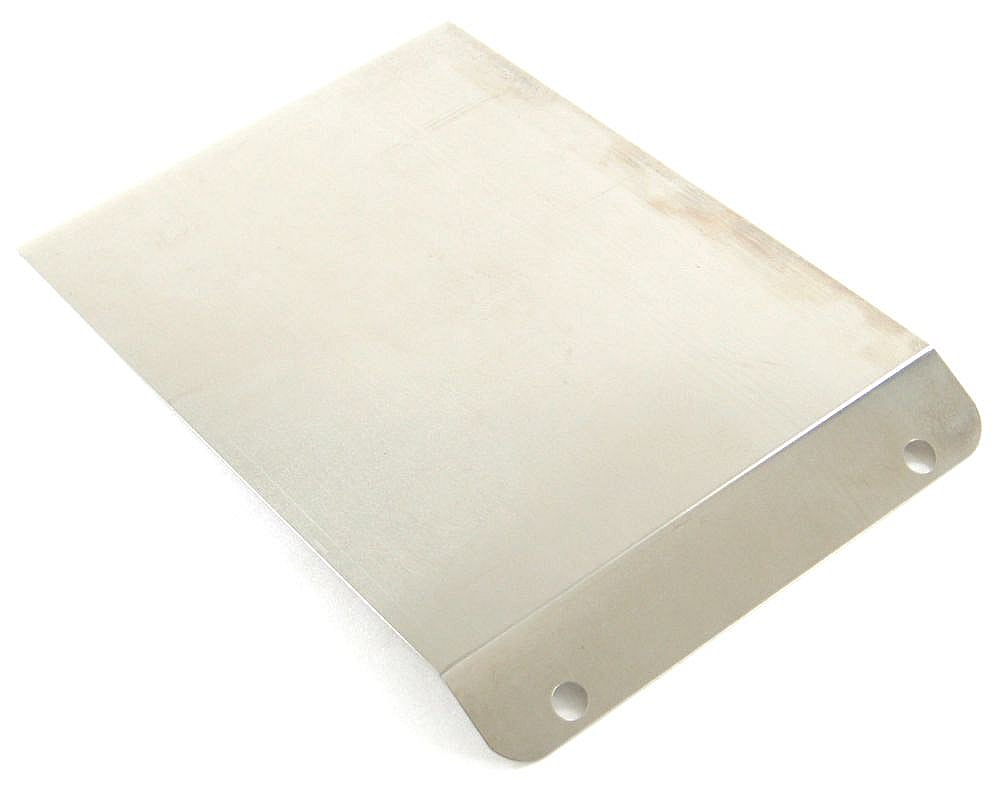

This wear plate (part number 690711001) is for sanders.
Wear plate 690711001 supports the sanding belt as the belt rotates around the sander.
Unplug the sander before installing this part. Wear work gloves to protect your hands.
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #315117270 Craftsman power sander | 315117270 | Housing assy |
| Model #315117271 Craftsman power sander | 315117271 | Belt/dust bag/wear plate |
| Model #315117261 Craftsman power sander | 315117261 | Sander |
| Model #315117260 Craftsman power sander | 315117260 | Belt assy |
| Model #315117280 Craftsman power sander | 315117280 | Sander |
Reviews
Easy to install
The part was the correct one. It took only 15 minutes or less to replace. The sander works like new!
janeb, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
It was easy to install. Put in two screws.
The old part had a cork back glued on to the metal plate. The new plate did not have a cork back on it. Why??? The diagram did not show any additional parts to the plate. I had to find backing to glue to the wear plate, that was time consuming as well as difficult to find the material. It took 2 1/2 to find the material and to install this plate. What a joke.
Deon, Undisclosed
1 person thought this review was helpful.
- Ease of Installation
- Very Easy
- Duration of Installation
- More than 2 hours
Quick install
Remove and replace two screws on base of belt sander
Marlin60, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
The "PERFECT" part
Simple to install and was an identical match to the original !
Twister t P, Dysart PA
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
easy to install
Had just the part I needed. Easy to install and only took 5 minutes.
dereborn, Chattanooga, TN
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- Less than 30 minutes
