Lawn & Garden Equipment Engine Fuel Pump Assembly (replaces 15-393-01-S, 24-393-04-S, 24-393-16, KH-24-393-16) 24-393-16-S

5★
7
4★
0
3★
0
2★
0
1★
0

Part #24-393-16-S

Online Price
$58.76 |
10% OFF
Was: $65.29
In Stock
For ZIP codes near Edit
60-day return policy
This part fits

Part Information

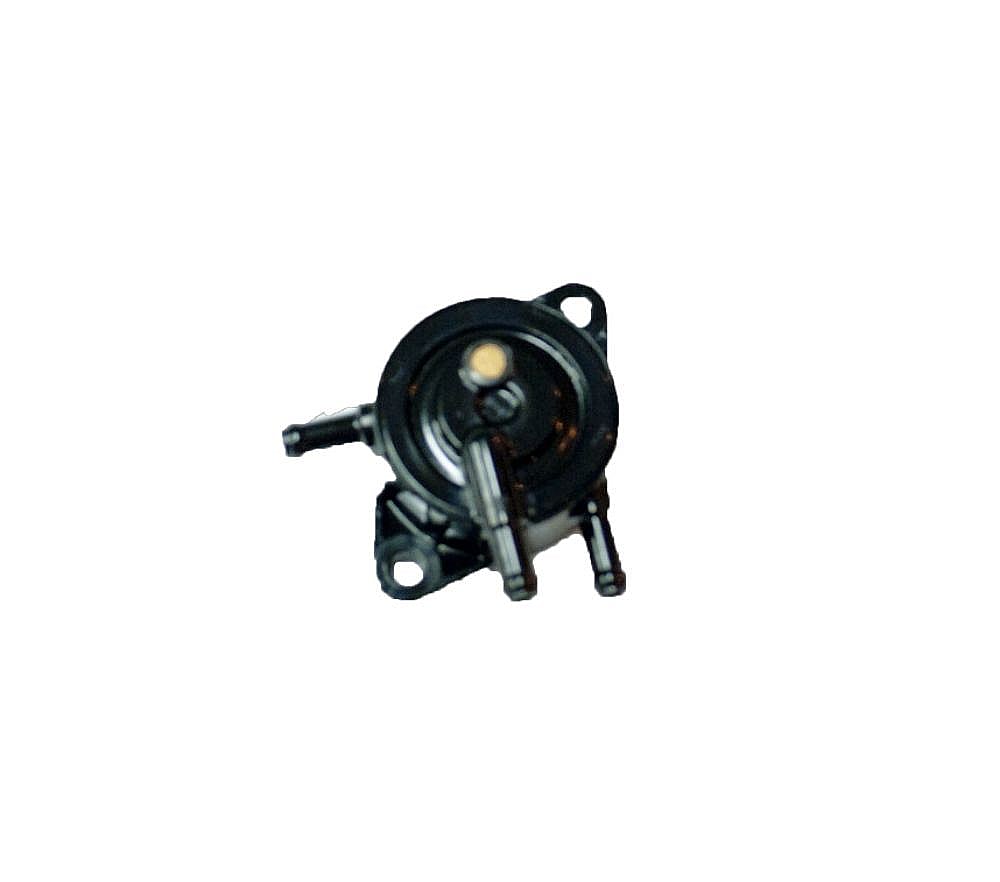

This fuel pump assembly (part number 24-393-16-S) is for lawn and garden equipment engines.

Fuel pump assembly 24-393-16-S moves the fuel from the fuel tank to the carburetor. The assembly may include multiple parts; refer to your parts manual for a complete list of parts included.

Work in a well-ventilated area when installing this part. Drain the fuel tank and disconnect the spark plug wire before beginning the repair.

Frequently Used Together

Top models using the same part

Model NameModel NumberDiagram Name
Model #CV18S-61555 Kohler lawn & garden engineCV18S-61555
Fuel system
Shop Parts
Model #501CV20S-65538 Craftsman lawn & garden engine501CV20S-65538
Fuel system (71/501)
Shop Parts
Model #501CV22S-67529 Craftsman lawn & garden engine501CV22S-67529
Fuel system
Shop Parts
Model #CV25S-6926 Kohler lawn & garden engineCV25S-6926
Fuel system
Shop Parts
Model #CV18S-61544 Kohler lawn & garden engineCV18S-61544
Fuel system
Shop Parts
Model #CV18S-61533 Kohler lawn & garden engineCV18S-61533
Fuel system
Shop Parts
Model #CV20S-65527 Kohler lawn & garden engineCV20S-65527
Fuel system
Shop Parts
Model #501CV18S-61522 Craftsman lawn & garden engine501CV18S-61522
Fuel system
Shop Parts
Model #501CV22S-67515 Craftsman lawn & garden engine501CV22S-67515
Engine cv22s-67515 (71,501)
Shop Parts
Model #CV26S-69526 Kohler lawn & garden engineCV26S-69526
Fuel system
Shop Parts
