CONFIRM THE PART FITS
Part Information

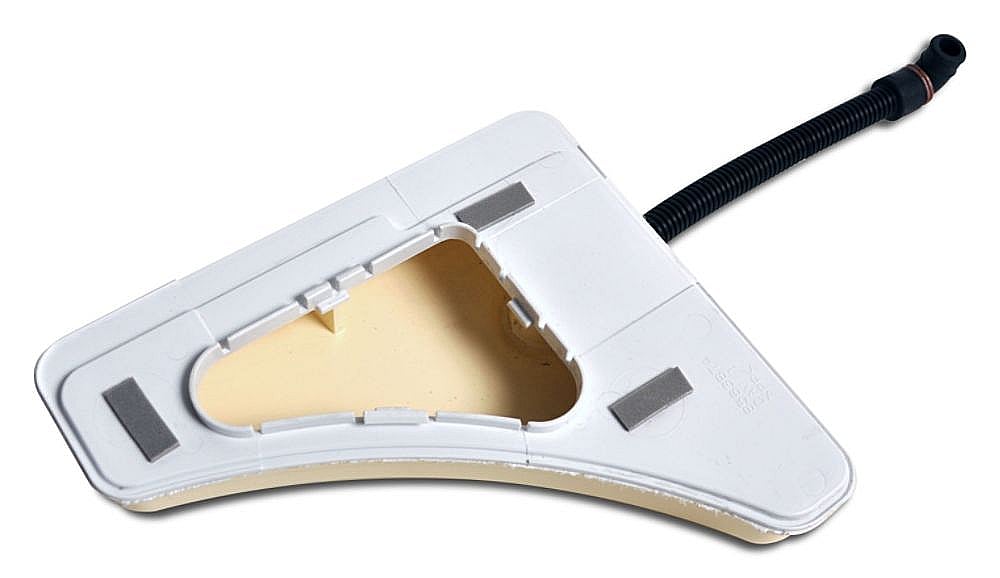

Choose this manufacturer-approved bleach dispenser for your residential washer.
This bleach dispenser for a residential washer replaces a damaged or clogged one.
- The hose on the new dispenser is permanently attached. Do not attempt to detach it from the rest of the part.
- To remove the old bleach dispenser, lift the washer's lid and use a small screw driver to pry up the three tabs holding the dispenser cover in place. Squeeze the bottom of the old dispenser to release its hook tabs and push the dispenser out. Then use a putty knife to push down the locking tabs on the washer's top panel, release the dispenser clamp, and disconnect the mouth of the hose from the valve.
Top models using the same part
Model Name | Model Number | Diagram Name |
---|---|---|
Model #11027086600 Kenmore Elite washer | 11027086600 | Top and cabinet parts |
Model #11027092602 Kenmore Elite washer | 11027092602 | Top and cabinet parts |
Model #11027042601 Kenmore Elite washer | 11027042601 | Top and cabinet parts |
Model #11027052600 Kenmore Elite washer | 11027052600 | Top and cabinet parts |
Model #11027087602 Kenmore Elite washer | 11027087602 | Top and cabinet parts |
Model #11027086604 Kenmore Elite washer | 11027086604 | Top and cabinet parts |
Model #11027152601 Kenmore Elite washer | 11027152601 | Top and cabinet parts |
Model #11027062603 Kenmore Elite washer | 11027062603 | Top and cabinet parts |
Model #11027086602 Kenmore Elite washer | 11027086602 | Top and cabinet parts |
Model #11027032600 Kenmore Elite washer | 11027032600 | Top and cabinet parts |
