Basic Information

• Part Name: Water Heater Manifold Door and Burner Assembly
• Manufacturer: American Water Heaters
• Category: Water Heater Part
• Primary Function: Connects the burner to the gas supply tube and secures the burner within the water heater assembly.

Technical Specifications

• Dimensions: Please refer to the manufacturer's official documentation for exact dimensions.
• Material: High-quality metal components designed for high-temperature applications.

Installation & Compatibility

• Installation Difficulty: Medium — Requires technical know-how to ensure proper connection and seal.
• Tools Required: Adjustable wrench, gas leak detection fluid, screwdriver.

Additional Information

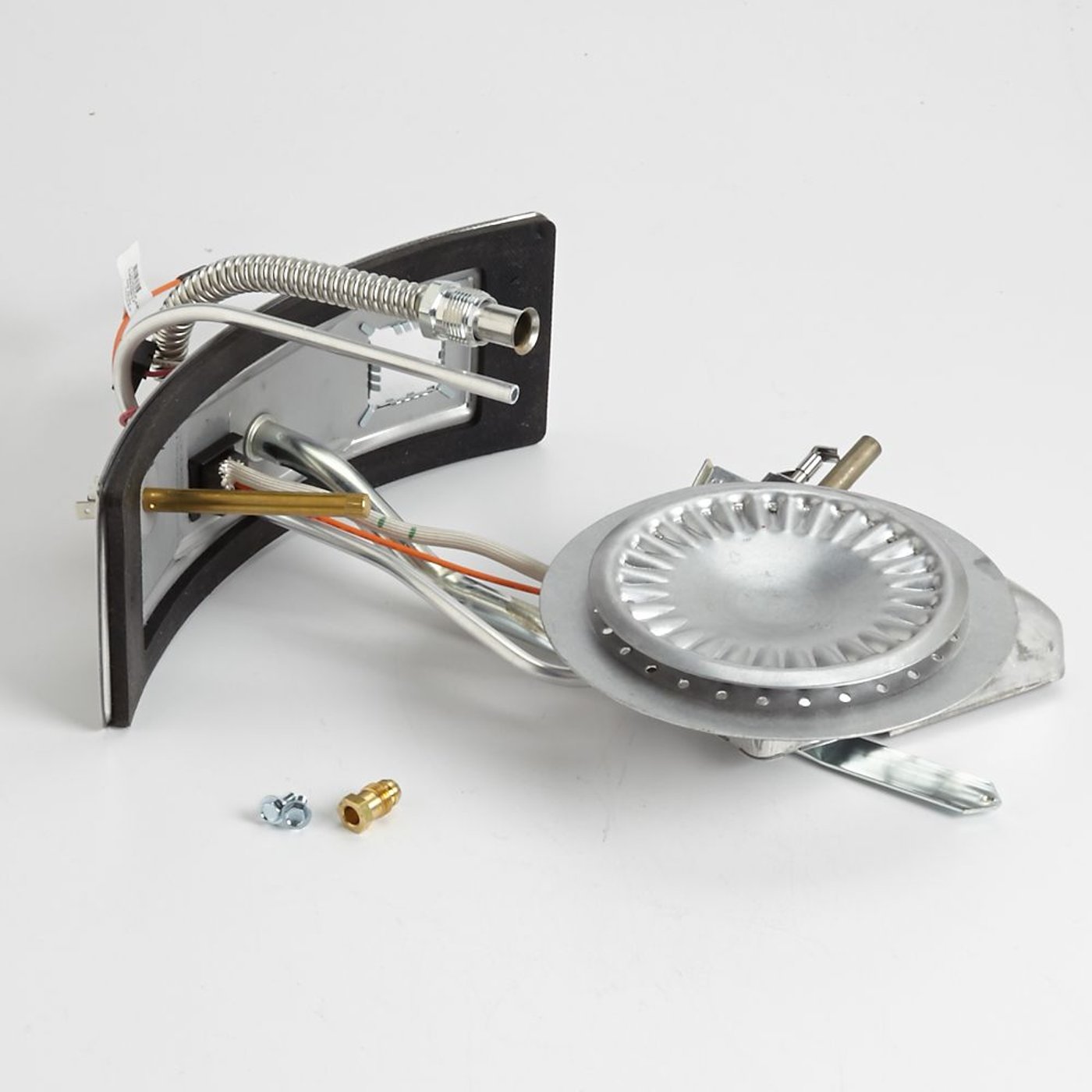

This manifold door assembly (part number 100093991) is an essential component for ensuring the efficient operation of water heaters. It connects the water heater's burner to the gas supply tube, maintaining a secure and stable position to facilitate a steady combustion process. The assembly includes the manifold door, a pilot burner equipped with a thermocouple, and a high-temperature sensor to monitor and regulate thermal conditions within the unit. It is crucial to thoroughly inspect and verify that all gas supply line connections are leak-free after installation to prevent hazardous gas leaks. This part replaces part number 6911154.

For optimal performance and safety, regular maintenance of water heater components, including the manifold door and burner assembly, is recommended. Always consult with a professional or refer to the manufacturer's installation guide before undertaking any repair or replacement tasks.
