Jenn-Air JMW9527BAW wall oven/microwave combo Parts
Here are the diagrams and repair parts for Jenn-Air JMW9527BAW wall oven/microwave combo, as well as links to manuals and error code tables, if available.
By Schematic
By Part

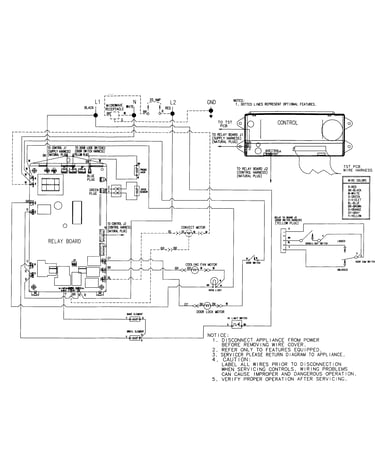

SELECT DIAGRAM
Browse Parts for JMW9527BAW Wall Oven/Microwave Combo

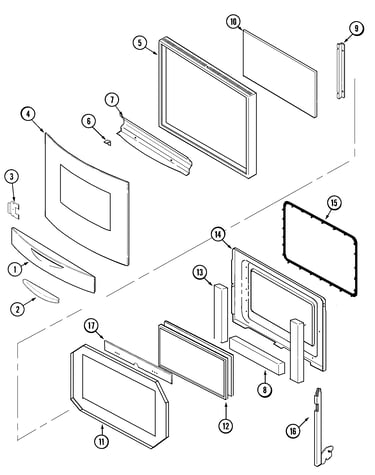

Door diagram
Window Gasket
Part #790058
The manufacturer no longer makes this part, and there's no substitute part

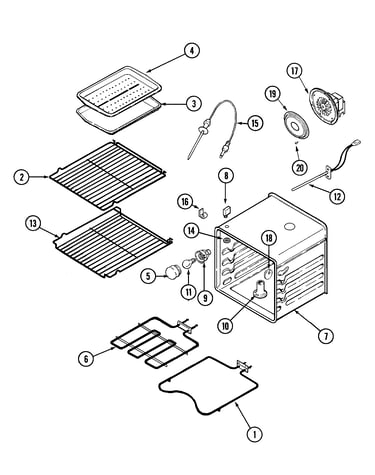

Oven diagram
Oven Clip
Part #71001170
The manufacturer no longer makes this part, and there's no substitute part

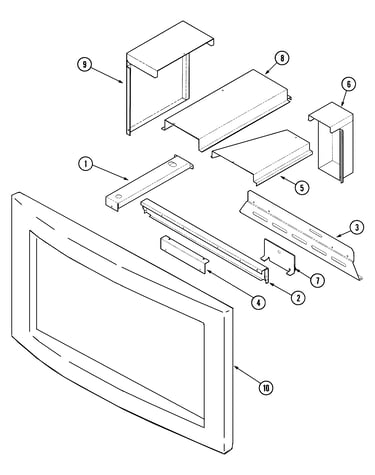

Microwave frame & attachments diagram
Lock Bracket
Part #74005649
The manufacturer no longer makes this part, and there's no substitute part
Door diagram
Door Frame
Part #74005109
The manufacturer no longer makes this part, and there's no substitute part
Door diagram
Door Liner
Part #74005615
The manufacturer no longer makes this part, and there's no substitute part

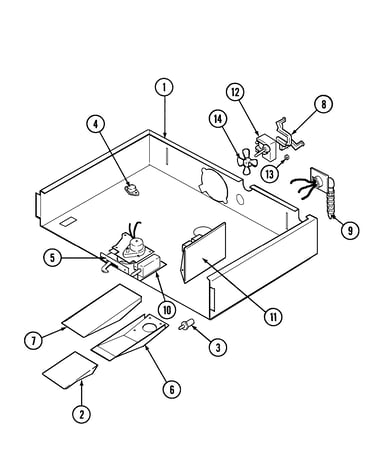

Internal controls diagram
Vent
Part #71001846
The manufacturer no longer makes this part, and there's no substitute part

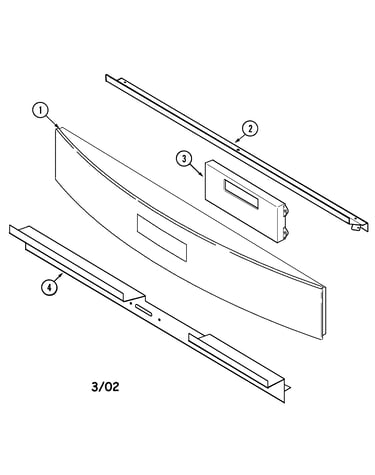

Control panel diagram
Main Harness
Part #74006938
The manufacturer no longer makes this part, and there's no substitute part
Door diagram
Door Glass
Part #74005612
The manufacturer no longer makes this part, and there's no substitute part
Microwave frame & attachments diagram
"screw, Black"
Part #71002514
The manufacturer no longer makes this part, and there's no substitute part

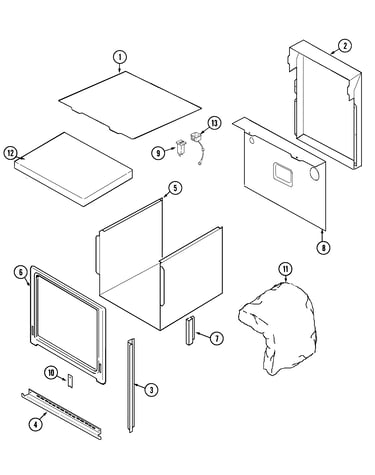

Body diagram
Oven Trim
Part #71001956
The manufacturer no longer makes this part, and there's no substitute part
