Model # 030335-0 Official Briggs & Stratton generator

Here are the diagrams and repair parts for Official Briggs & Stratton 030335-0 generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

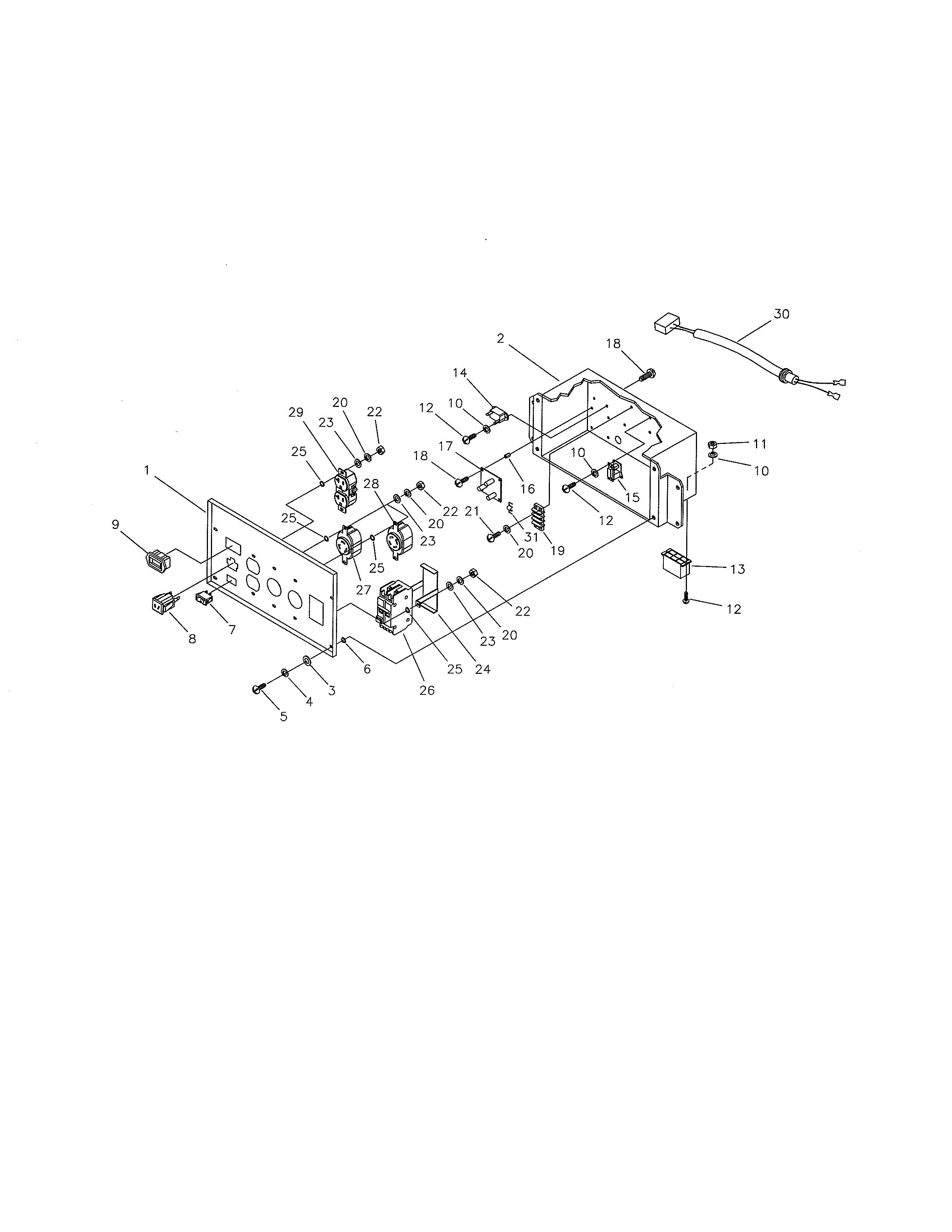

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Lawn & Garden Equipment Fuel Line Kit 791745
#35

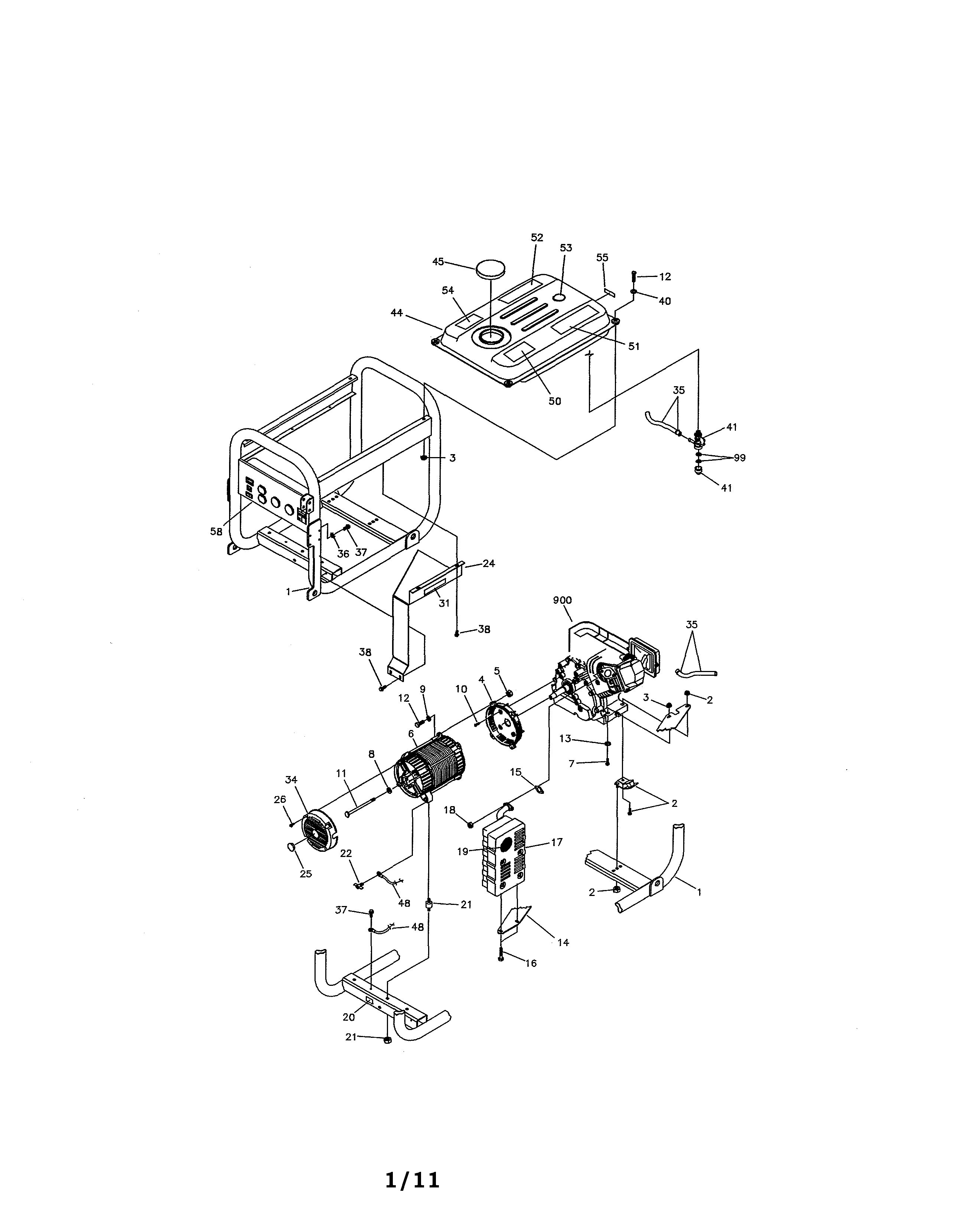

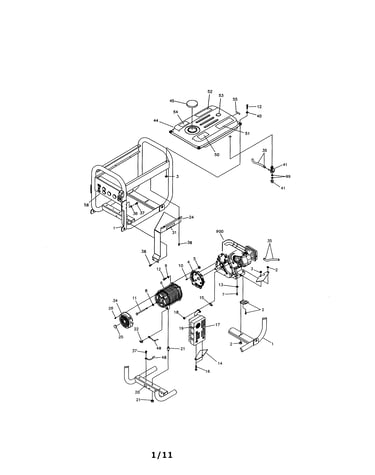

Main unit diagram

Lawn & garden equipment fuel line kit

Part #791745

This item is not returnable
$19.69
9% OFF Phone Price : $21.69
In Stock
Generator Battery Charging Cable (replaces 65787) 65787GS

#NI01

All parts diagram

Generator battery charging cable (replaces 65787)

Part #65787GS

This item is not returnable
$18.00
10% OFF Phone Price : $20.00
In Stock
Generator Cover 195422GS
#34

Main unit diagram

Generator cover

Part #195422GS

$20.42
20% OFF Phone Price : $25.42
In Stock
Generator Motor Brush 66386GS
#6

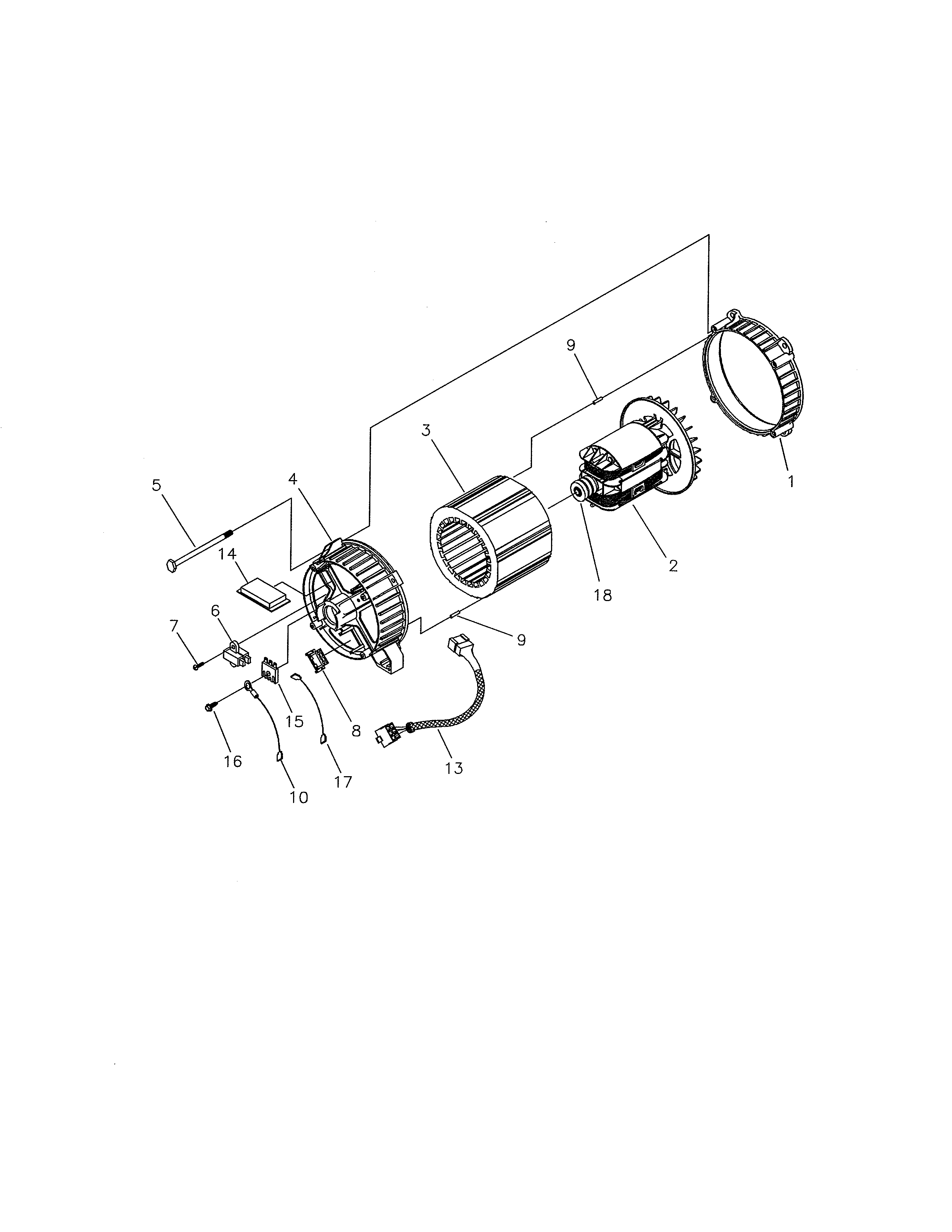

Alternator diagram

Generator motor brush

Part #66386GS

This item is not returnable
$29.69
14% OFF Phone Price : $34.69
In Stock
Regulator 189769GS
#14

Alternator diagram

Regulator

Part #189769GS

Replaced by #205858GS

?
Manufacturer substitution
This part replaces 189769GS. Substitute parts can look different from the original.
$114.65
8% OFF Phone Price : $124.65
In Stock
Generator E-ring 191265GS
#4

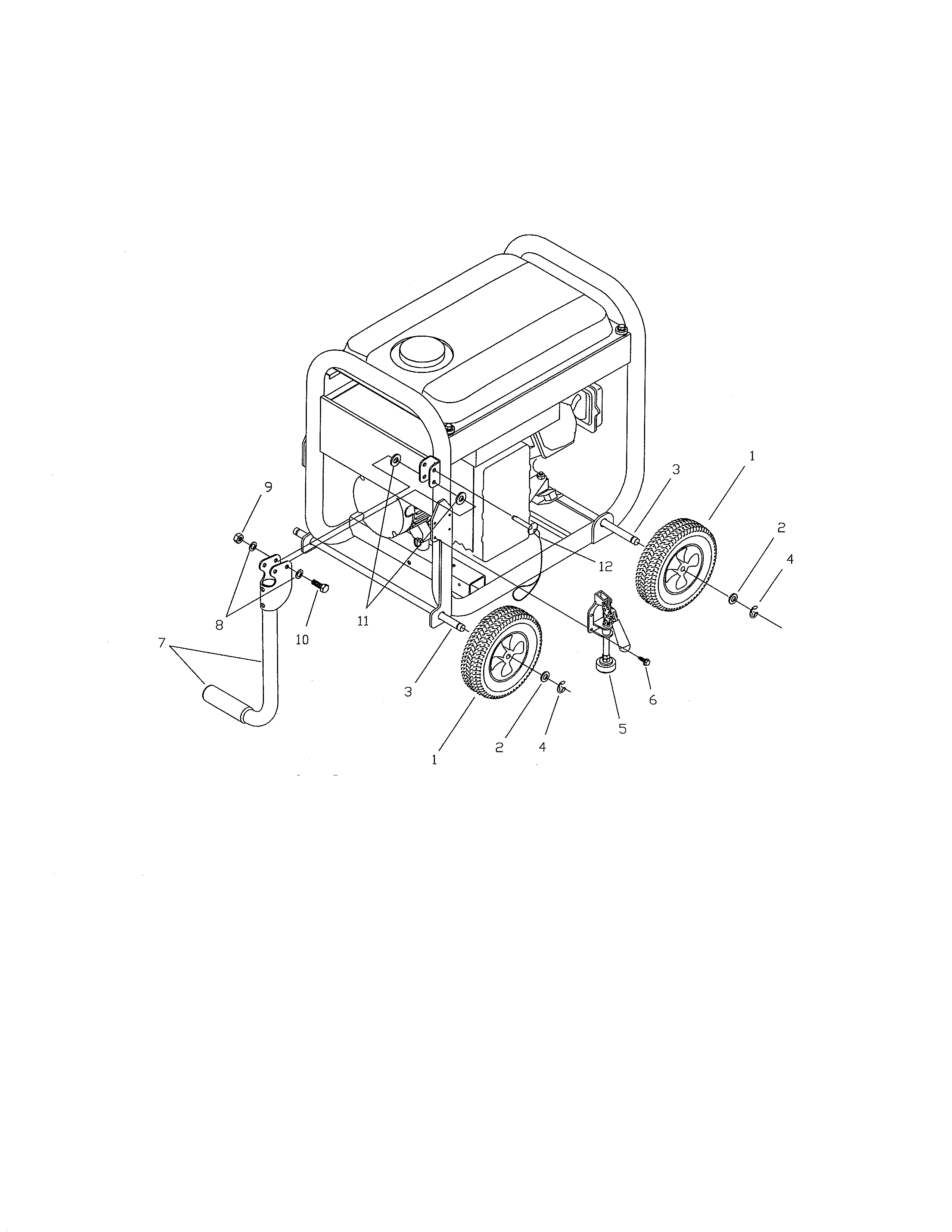

Wheel kit diagram

Generator e-ring

Part #191265GS

Replaced by #703977

?
Manufacturer substitution
This part replaces 191265GS. Substitute parts can look different from the original.
This item is not returnable
In Stock
Adapter 190220GS
#4

Main unit diagram

Adapter

Part #190220GS

In Stock
Wheel 203273GS
#1

Wheel kit diagram

Wheel

Part #203273GS

$107.96
8% OFF Phone Price : $117.96
In Stock
Wire 192403XGS
#17

Alternator diagram

Wire

Part #192403XGS

This item is not returnable
In Stock
Fuel Gauge 189136GS
#53

Main unit diagram

Fuel gauge

Part #189136GS

In Stock
