Craftsman
Rolling Tool Cart

Model # 706824413 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 706824413 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Caster,(6) 1003169
#12

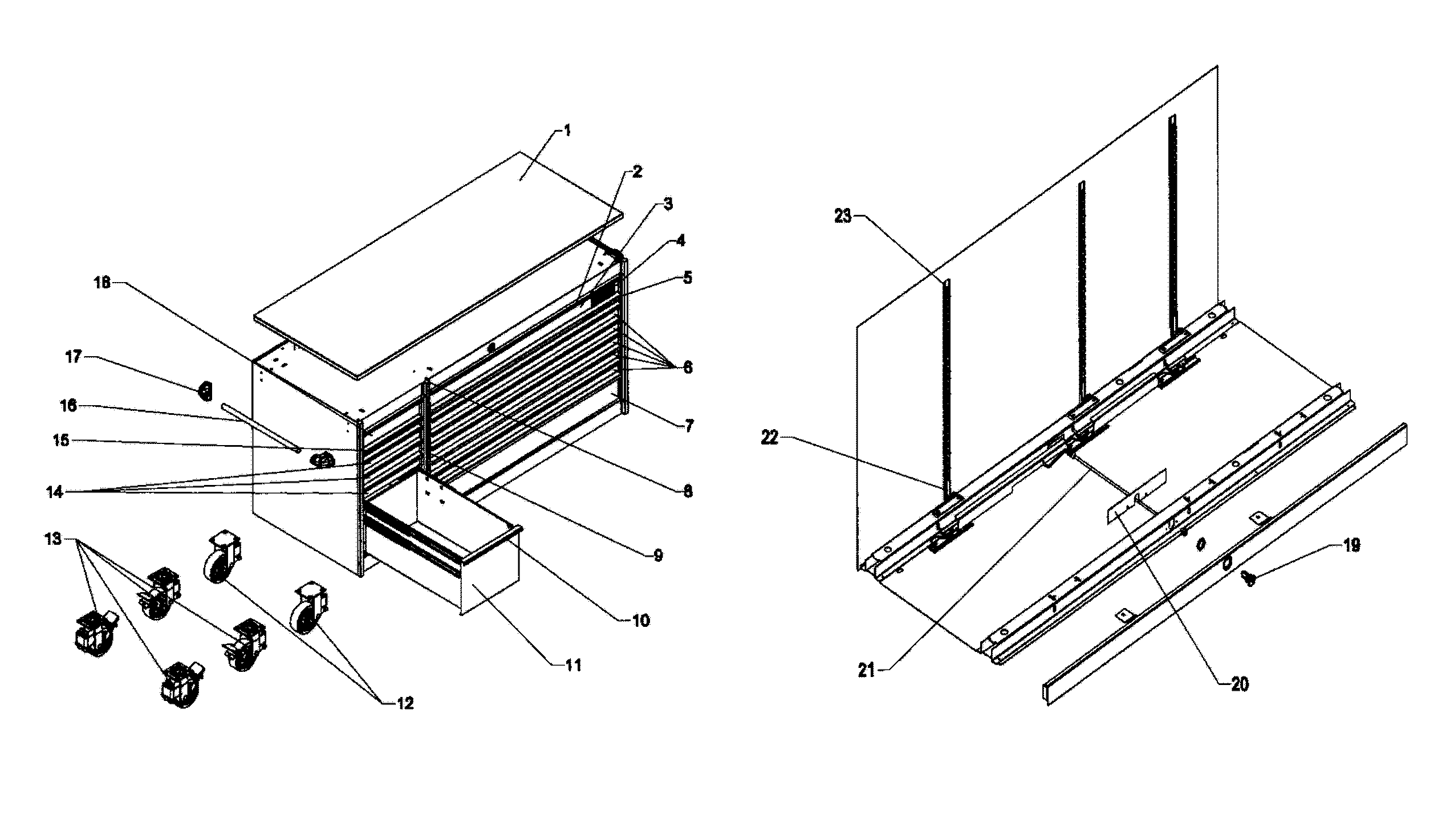

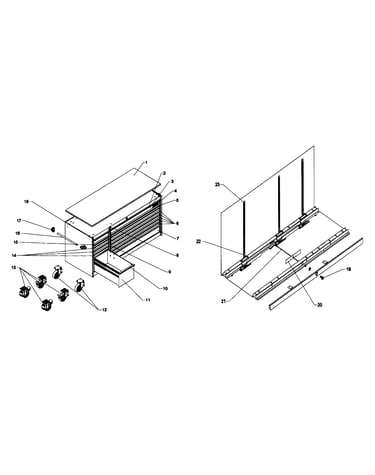

Tool chest diagram

Caster,(6)

Part #1003169

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Nameplate 1000225
#4

Tool chest diagram

Tool chest nameplate

Part #1000225

The manufacturer no longer makes this part, and there's no substitute part

Lockbar-l 1000694
#22

Tool chest diagram

Lockbar-l

Part #1000694

The manufacturer no longer makes this part, and there's no substitute part

Trim Plug 29596
#8

Tool chest diagram

Trim plug

Part #29596

The manufacturer no longer makes this part, and there's no substitute part

End Handle 1000208-PH
#17

Tool chest diagram

End handle

Part #1000208-PH

The manufacturer no longer makes this part, and there's no substitute part

Rod,actuat 28001A3-PA
#21

Tool chest diagram

Rod,actuat

Part #28001A3-PA

The manufacturer no longer makes this part, and there's no substitute part

Lock Assembly 1000715A1
#19

Tool chest diagram

Lock assembly

Part #1000715A1

The manufacturer no longer makes this part, and there's no substitute part

Drawer Slide 28115A1
#NI

Tool chest diagram

Drawer slide

Part #28115A1

The manufacturer no longer makes this part, and there's no substitute part

Lockbar-r 1000695
#23

Tool chest diagram

Lockbar-r

Part #1000695

The manufacturer no longer makes this part, and there's no substitute part

Drawer Liner 1000226A8
#NI

Tool chest diagram

Drawer liner

Part #1000226A8

The manufacturer no longer makes this part, and there's no substitute part
