Model # KBDS250V2 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KBDS250V2 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Tailpipe 4211370
#21

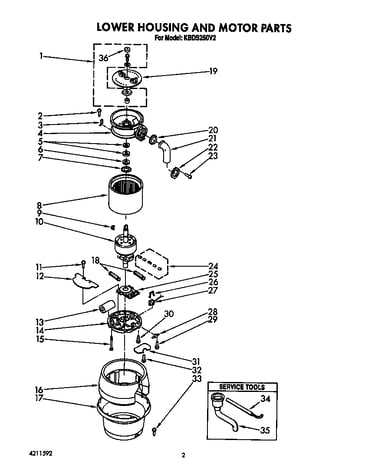

Lower housing and motor diagram

Tailpipe

Part #4211370

Replaced by #4211317

?
Manufacturer substitution
This part replaces 4211370. Substitute parts can look different from the original.
$29.89
In Stock
Flange 4211303
#6

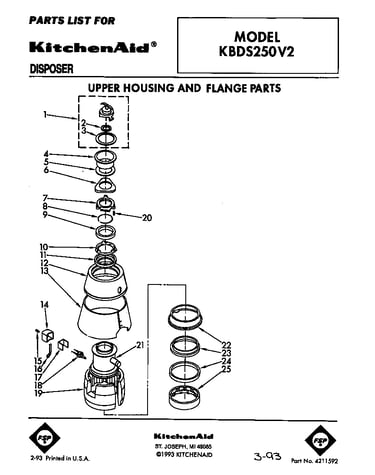

Upper housing and flange diagram

Flange

Part #4211303

$50.87
In Stock
Sleeve 4211578
#1

Lower housing and motor diagram

Sleeve

Part #4211578

$43.24
In Stock
Ring 4211306
#8

Upper housing and flange diagram

Ring

Part #4211306

This item is not returnable
$7.49
In Stock
Adapter 4211396
#35

Lower housing and motor diagram

Adapter

Part #4211396

$240.89
In Stock
Garbage Disposal Mounting Flange 4211304
#7

Upper housing and flange diagram

Garbage disposal mounting flange

Part #4211304

$55.09
In Stock
Garbage Disposal Mounting Flange Screw 4211305
#20

Upper housing and flange diagram

Garbage disposal mounting flange screw

Part #4211305

$16.79 |
11% OFF Phone Price : $18.79
In Stock
Gasket 4211355
#2

Upper housing and flange diagram

Gasket

Part #4211355

This item is not returnable
$5.89
In Stock
Gasket 4211411
#9

Upper housing and flange diagram

Gasket

Part #4211411

$9.98
In Stock
Screw 4211346
#23

Lower housing and motor diagram

Screw

Part #4211346

Replaced by #WP8204624

?
Manufacturer substitution
This part replaces 4211346. Substitute parts can look different from the original.
$9.78
In Stock
