KitchenAid KOCE900HBS22 electric oven/microwave combo Parts

Name: KitchenAid KOCE900HBS22 Parts | Diagrams | Sears PartsDirect
Brand: KitchenAid
SKU: KOCE900HBS22
Availability: InStock

Here are the diagrams and repair parts for KitchenAid KOCE900HBS22 electric oven/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic

By Part

SELECT DIAGRAM

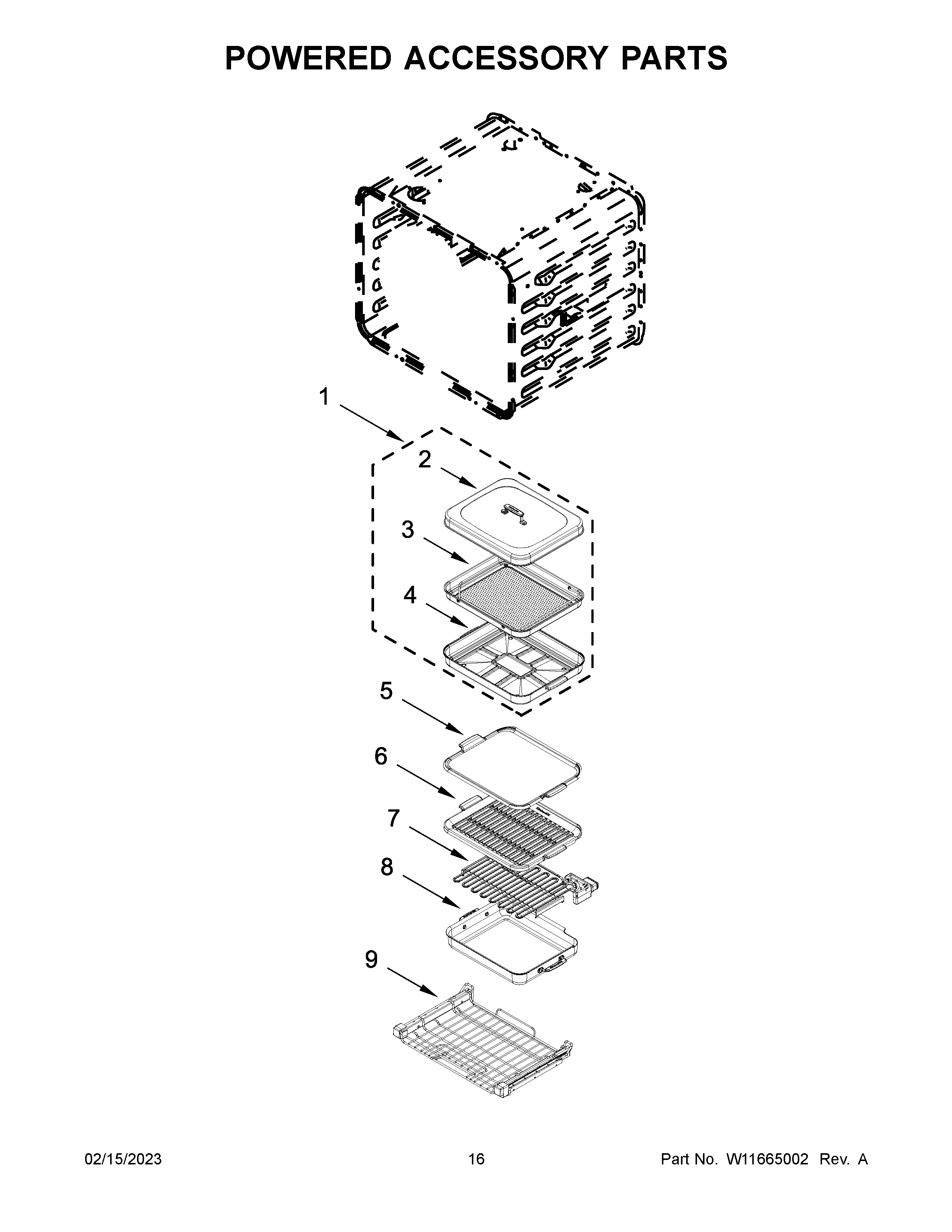

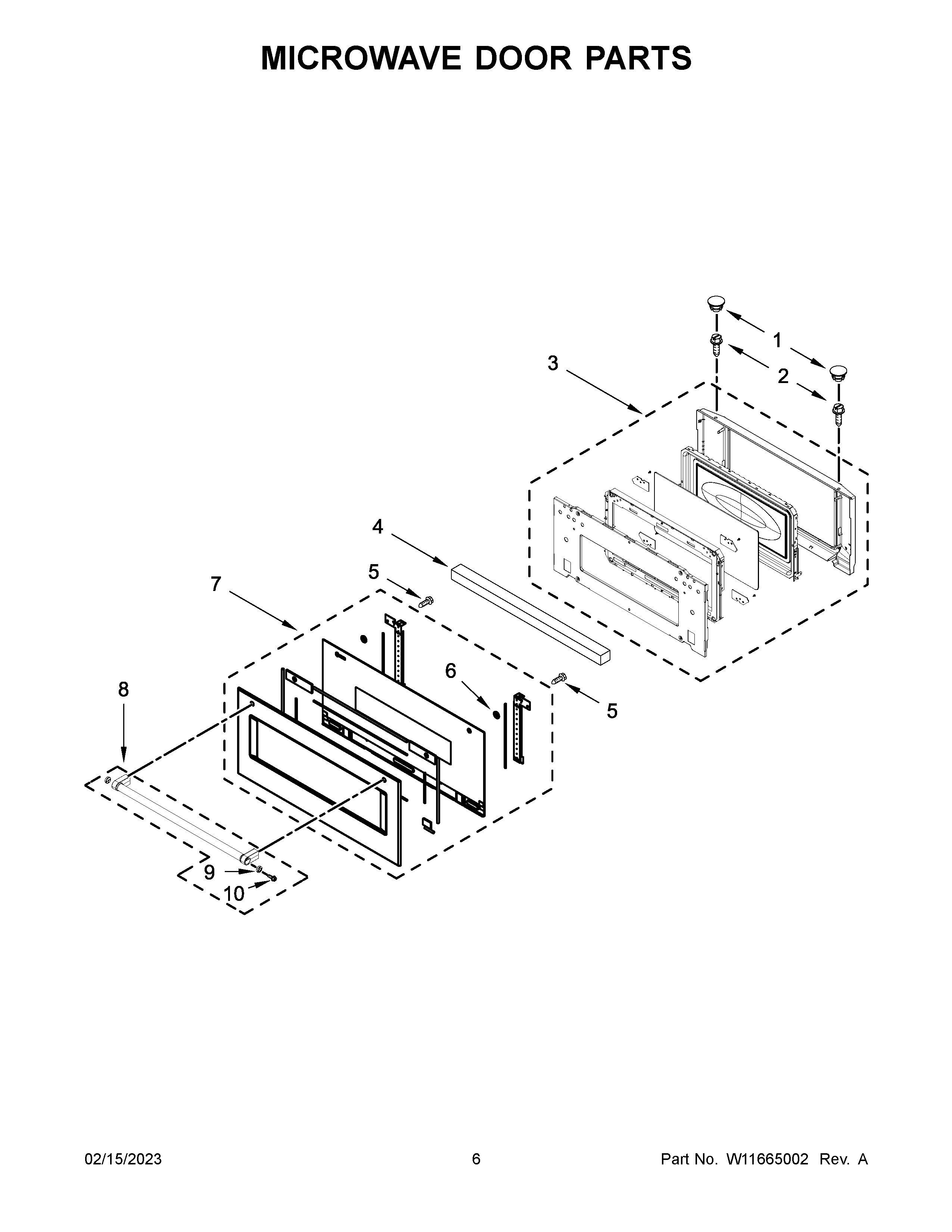

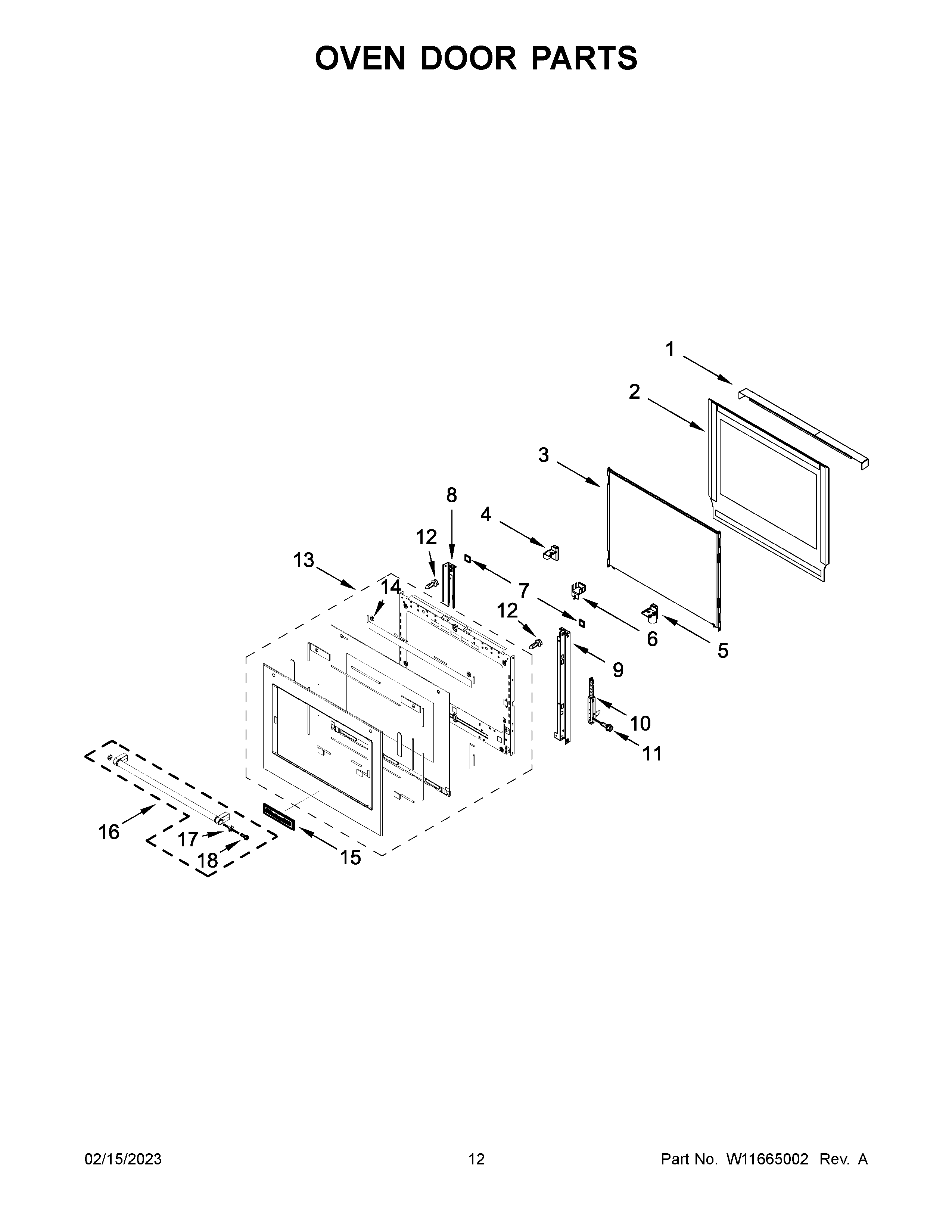

Browse Parts for KOCE900HBS22 Electric Oven/Microwave Combo

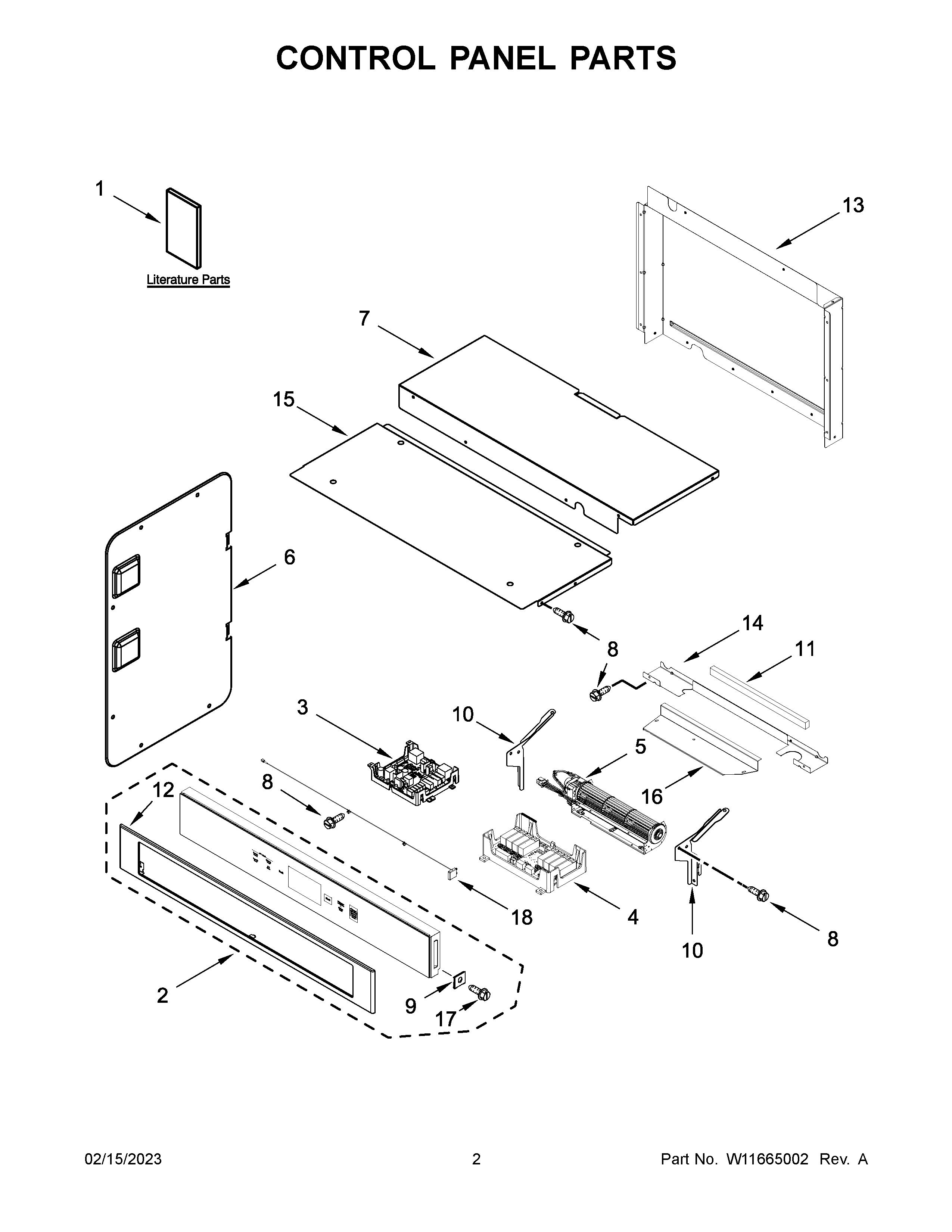

Control panel parts diagram
Blower
Part #W11397930
Replaced by #W11598119
Manufacturer substitution
This part replaces W11397930. Substitute parts can look different from the original.
In Stock
$175.53
6% OFF Phone Price : $187.53
Qty
Optional parts (not included) diagram
Adhesive
Part #482338
Replaced by #WP482338
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
In Stock
$24.46
27% OFF Was : $33.32
Qty

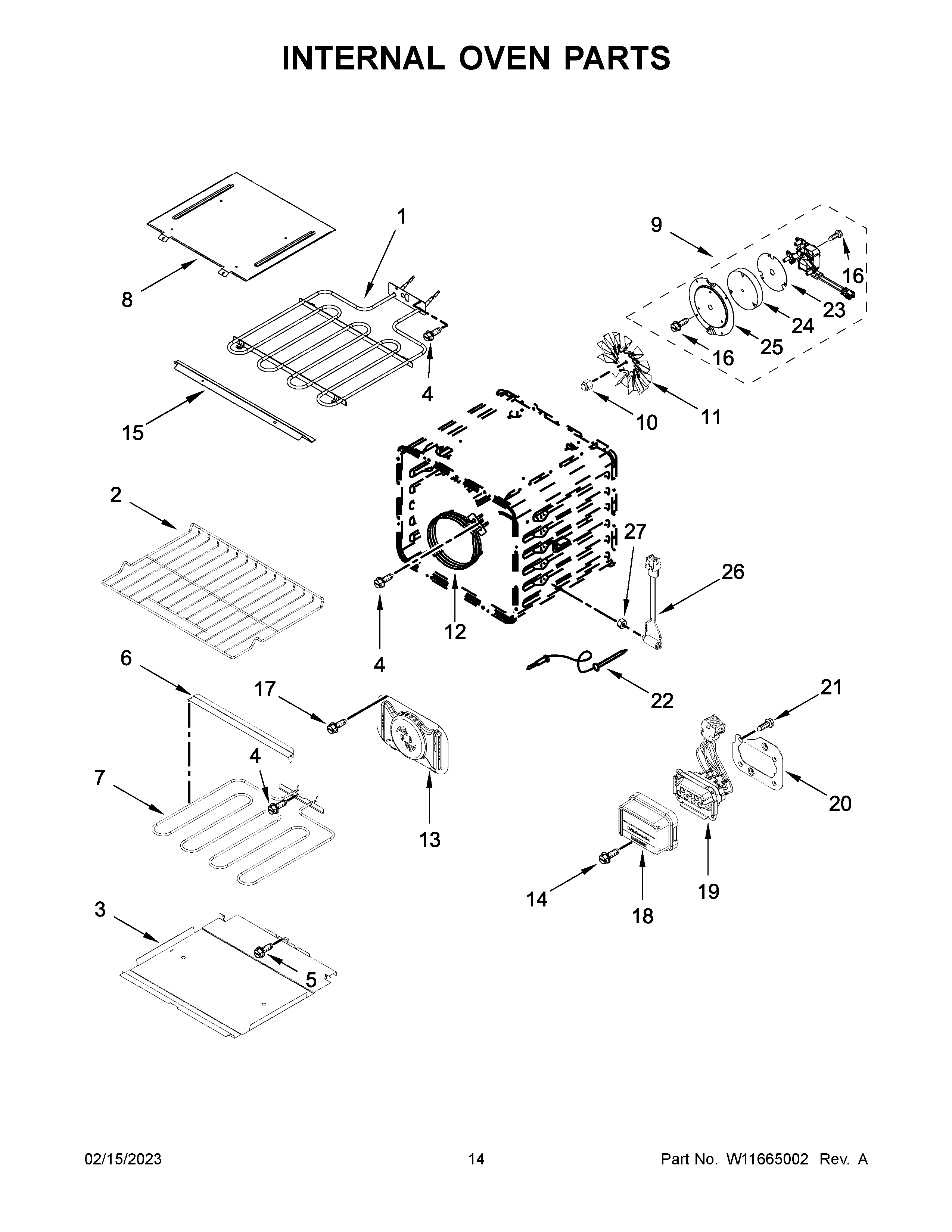

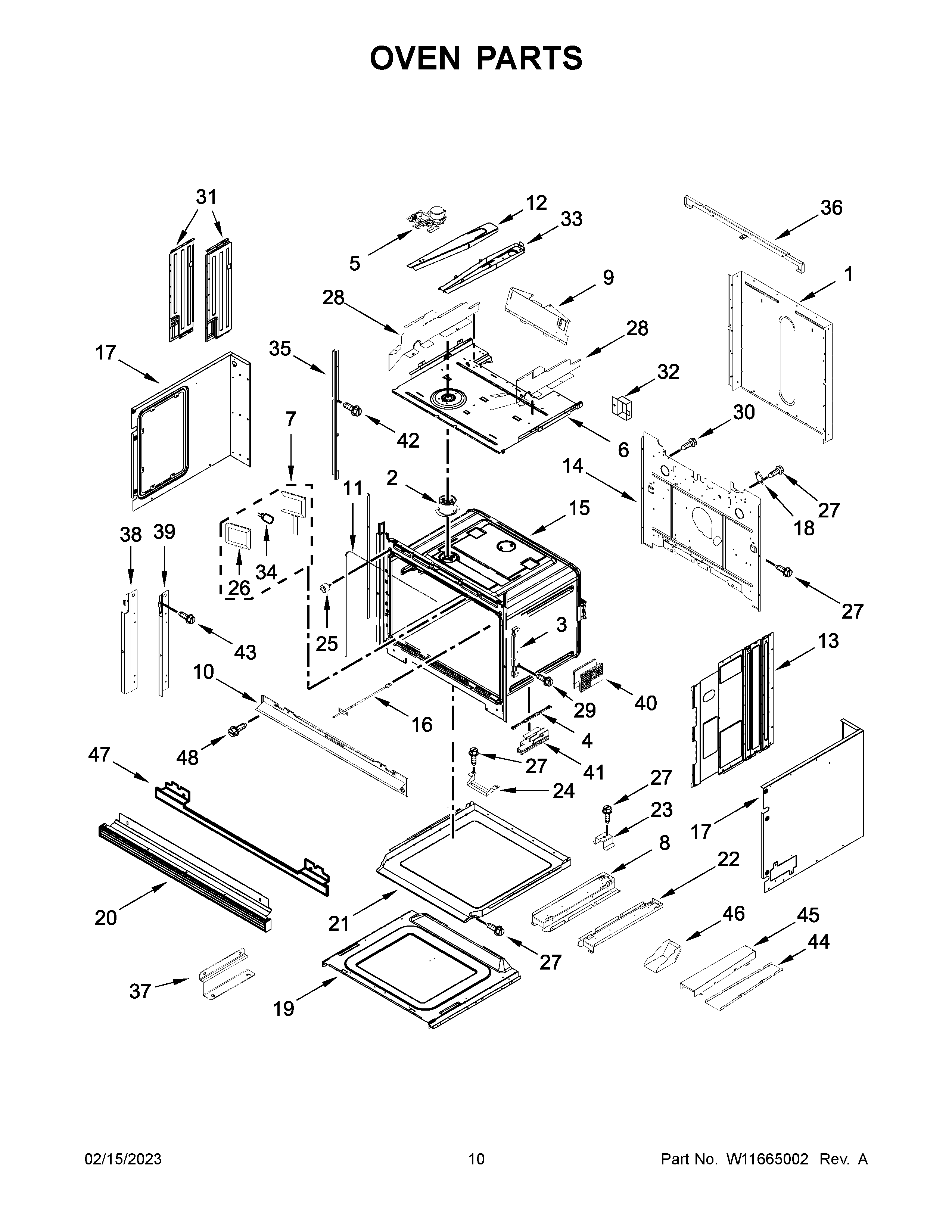

Oven parts diagram
Range High-limit Thermostat
Part #4449751
Replaced by #WP4449751
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
In Stock
$75.39
39% OFF Was : $123.71
Qty

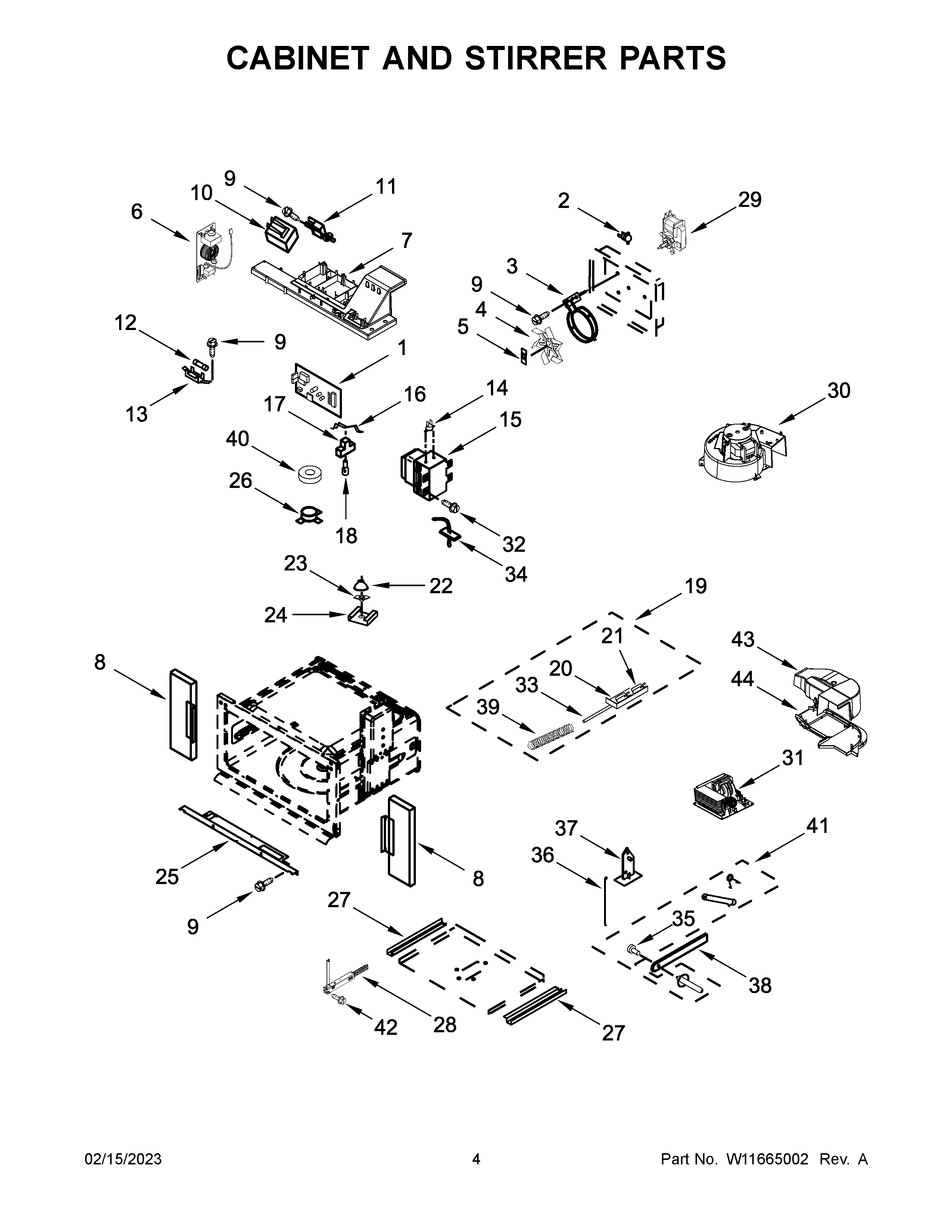

Cabinet and stirrer parts diagram
Magnetron 2m
Part #W11504545
Replaced by #W11578959
Manufacturer substitution
This part replaces W11504545. Substitute parts can look different from the original.
In Stock
$157.46
Qty

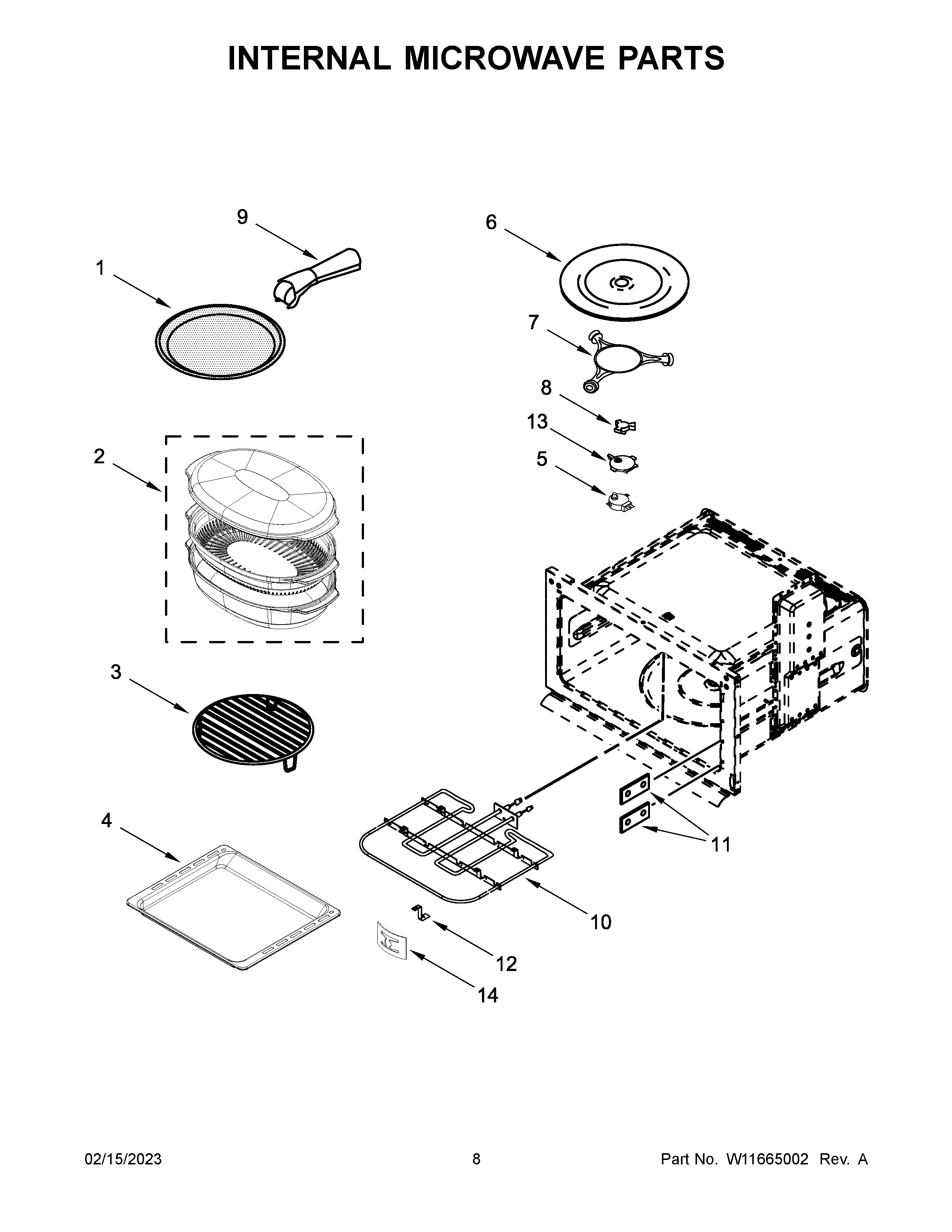

Internal microwave parts diagram
Microwave Turntable Motor
Part #461967848971
Replaced by #W10911403
Manufacturer substitution
This part replaces 461967848971. Substitute parts can look different from the original.
In Stock
$89.68
6% OFF Phone Price : $95.68
Qty
Cabinet and stirrer parts diagram
Inverter
Part #W11504539
Replaced by #W11578579
Manufacturer substitution
This part replaces W11504539. Substitute parts can look different from the original.
In Stock
$232.18
Qty
Cabinet and stirrer parts diagram
Lamp G4 Halo
Part #W10795595
Replaced by #W10886919
Manufacturer substitution
This part replaces W10795595. Substitute parts can look different from the original.
This item is not returnable
In Stock
$12.07
52% OFF Was : $25.38
Qty
Internal microwave parts diagram
Lock Spring
Part #252262898008
Replaced by #W11724411
Manufacturer substitution
This part replaces 252262898008. Substitute parts can look different from the original.
In Stock
$70.97
Qty
Internal microwave parts diagram
Whirlpool Wall Oven Microwave Element Clip
Part #461967753871
Replaced by #W11724411
Manufacturer substitution
This part replaces 461967753871. Substitute parts can look different from the original.
In Stock
$70.97
Qty
Oven parts diagram
Probe, Sensor
Part #W11346074
Replaced by #W11598120
Manufacturer substitution
This part replaces W11346074. Substitute parts can look different from the original.
In Stock
$27.26
18% OFF Phone Price : $33.26
Qty
