Amana PGA30B0702A/P1154005C package unit - pga series Parts

Name: Amana PGA30B0702A/P1154005C Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: PGA30B0702A/P1154005C
Availability: InStock

Here are the diagrams and repair parts for Amana PGA30B0702A/P1154005C package unit - pga series, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

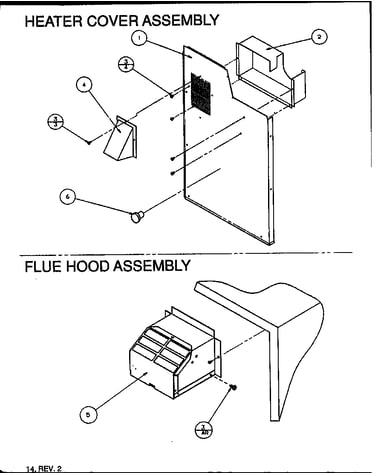

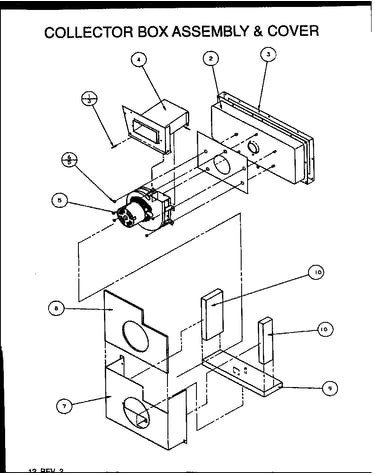

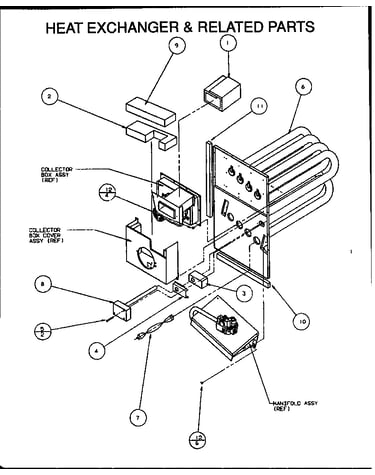

Browse Parts for PGA30B0702A/P1154005C Package Unit - PGA Series

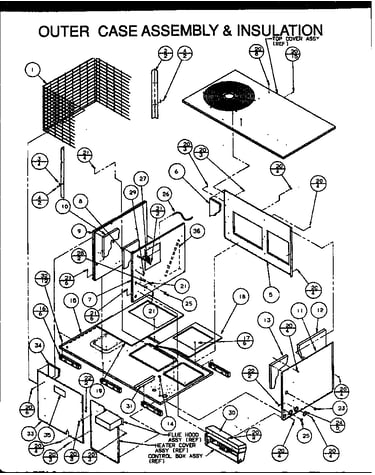

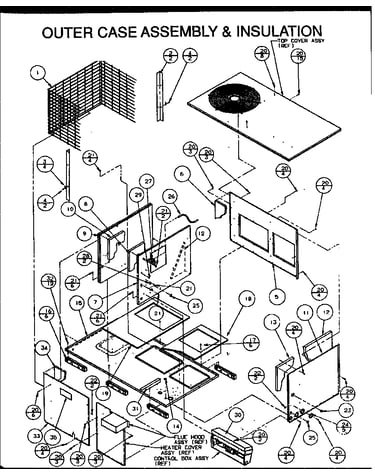

Outer case assembly & insulation (pga42b1152a/p1154103c) (pga42b0903a/p1154102c) (pga42b1153a/p1154104c) (pga42b0902a/p1154101c) (pga48b0902b/p1154111c) (pga48b0903a/p1154106c) (pga48b0903b/p1154112c) (pga48b0904a/p1154117c) (pga48b1152a/p1154107c) (pga48 diagram
Insulation, Evaporator Divider
Part #D9822702
The manufacturer no longer makes this part, and there's no substitute part

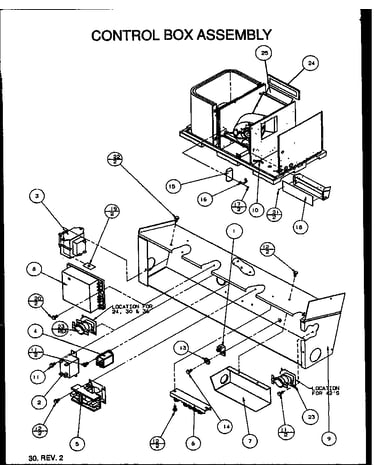

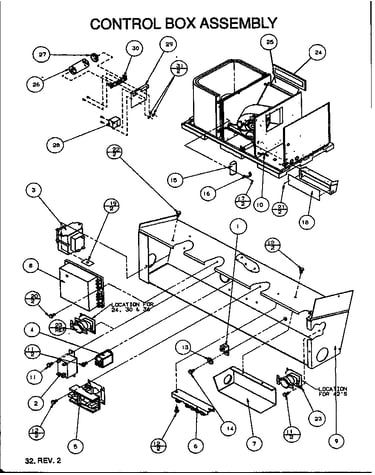

Control box assembly (pga42b1152a/p1154103c) (pga42b0903a/p1154102c) (pga42b1153a/p1154104c) (pga42b0902a/p1154101c) (pga48b0902b/p1154111c) (pga48b0903a/p1154106c) (pga48b0903b/p1154112c) (pga48b0904a/p1154117c) (pga48b1152a/p1154107c) (pga48b1152b/p1154 diagram
Capacitor Cap
Part #C6450303
The manufacturer no longer makes this part, and there's no substitute part

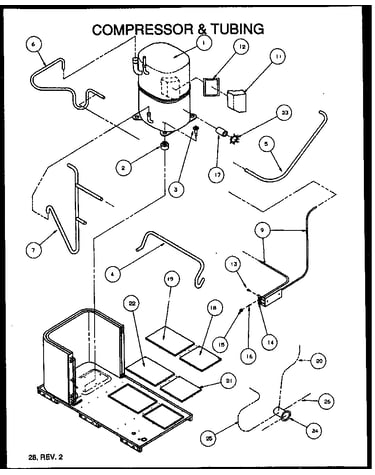

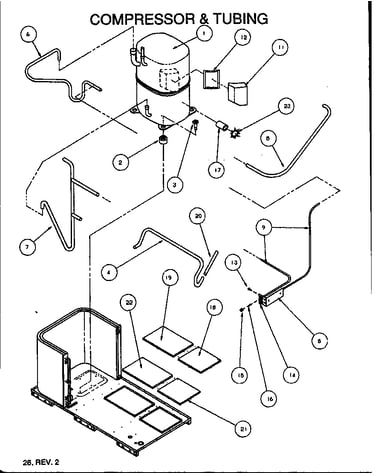

Compressor & tubing (pga42b1152a/p1154103c) (pga42b0903a/p1154102c) (pga42b1153a/p1154104c) (pga42b0902a/p1154101c) (pga48b0902b/p1154111c) (pga48b0903a/p1154106c) (pga48b0903b/p1154112c) (pga48b0904a/p1154117c) (pga48b1152a/p1154107c) (pga48b1152b/p11541 diagram
Tube, Valve
Part #D9991105
The manufacturer no longer makes this part, and there's no substitute part

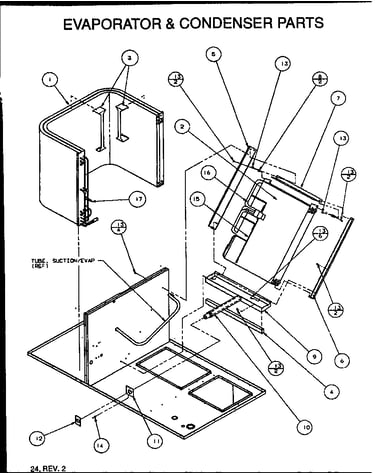

Evaporator & condenser parts diagram
Insul-pipe
Part #C6474501
The manufacturer no longer makes this part, and there's no substitute part

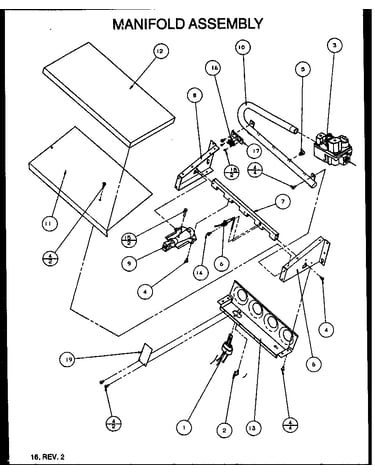

Manifold assembly diagram
Bracket-burner
Part #10514904
The manufacturer no longer makes this part, and there's no substitute part
Manifold assembly diagram
Manifold
Part #D9847702
The manufacturer no longer makes this part, and there's no substitute part

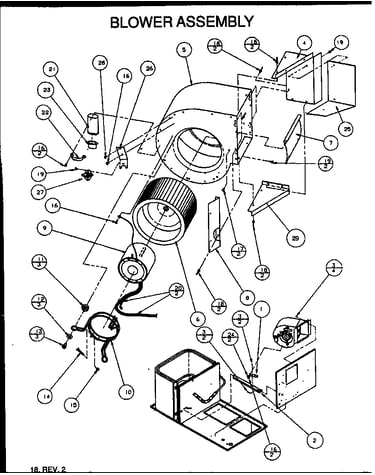

Blower assembly (pga24b0452a/p1164601c) (pga24b0702a/p1154002c) (pga24b0702a/p1164602c) (pga24b0902a/p1154003c) (pga24b0452a/p1154001c) (pga24b0902a/p1164603c) (pga30b0452a/p1164604c) (pga30b0452a/p1154004c) (pga30b0702a/p1154005c) (pga30b0902a/p1164606c) diagram
Blow Hsg Weld-pnt
Part #D9909808
The manufacturer no longer makes this part, and there's no substitute part
Evaporator & condenser parts diagram
Insul-pipe
Part #C6474520
The manufacturer no longer makes this part, and there's no substitute part

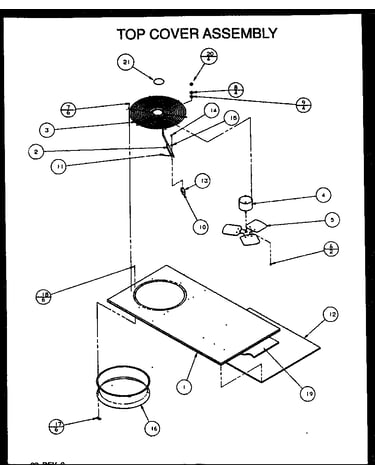

Top cover assembly diagram
Grille, Condenser Fan
Part #D6922501
The manufacturer no longer makes this part, and there's no substitute part

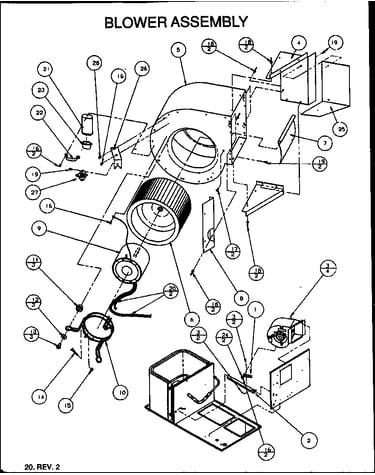

Blower assembly (pga42b1152a/p1154103c) (pga42b0903a/p1154102c) (pga42b1153a/p1154104c) (pga42b0902a/p1154101c) (pga48b0902b/p1154111c) (pga48b0903a/p1154106c) (pga48b0903b/p1154112c) (pga48b0904a/p1154117c) (pga48b1152a/p1154107c) (pga48b1152b/p1154113c) diagram
Cut-off
Part #C6121810
The manufacturer no longer makes this part, and there's no substitute part
