Model # A56M91D Official Zenith projection television

Here are the diagrams and repair parts for Official Zenith A56M91D projection television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 12 parts  |

Cabinet Front 14-12286-01
#1

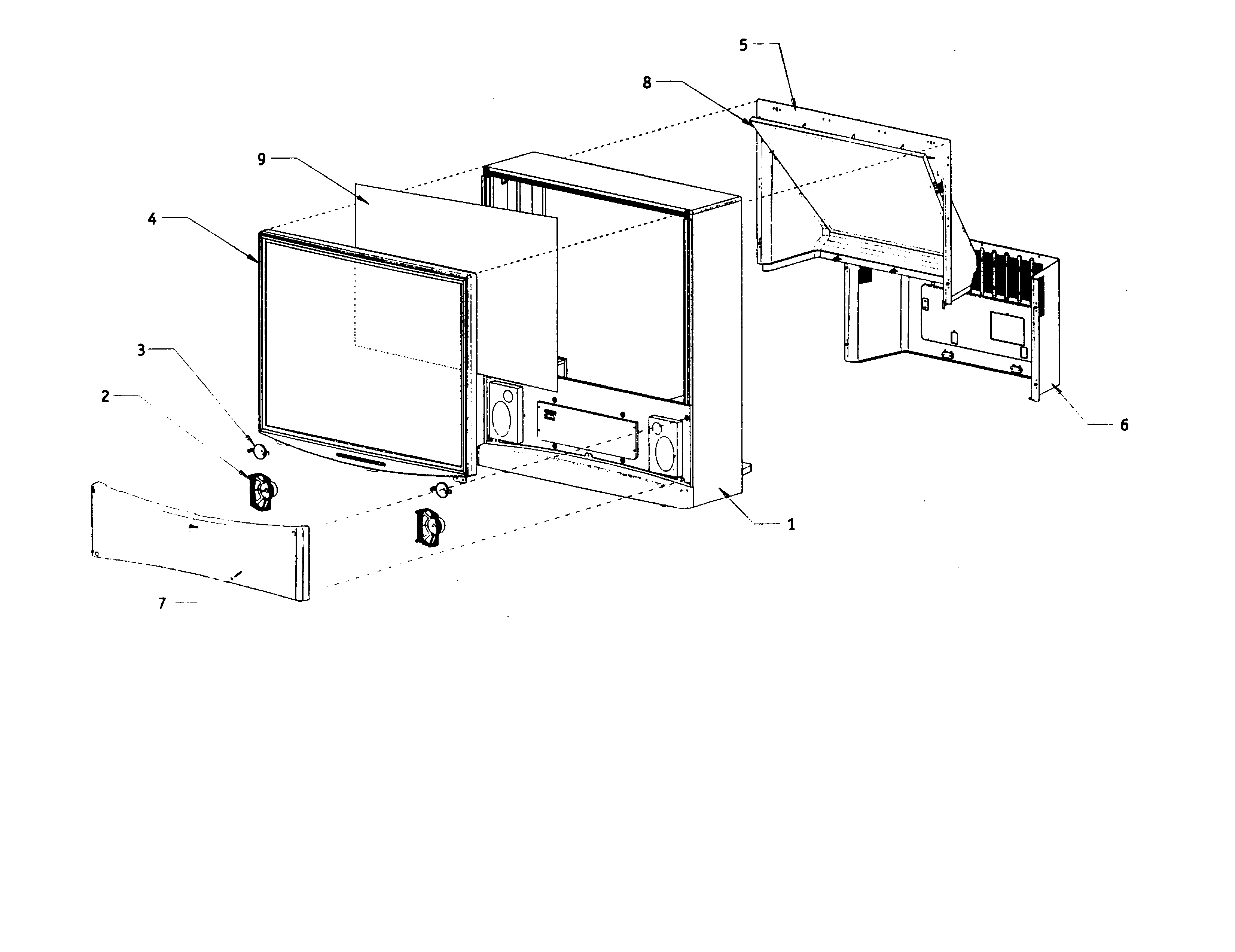

Cabinet parts diagram

Cabinet front

Part #14-12286-01

The manufacturer no longer makes this part, and there's no substitute part

Mirror 198-35
#8

Cabinet parts diagram

Mirror

Part #198-35

The manufacturer no longer makes this part, and there's no substitute part

Grille 138-1950-03
#7

Cabinet parts diagram

Grille

Part #138-1950-03

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon 57-9082
#4

Cabinet parts diagram

Escutcheon

Part #57-9082

The manufacturer no longer makes this part, and there's no substitute part

Service Manual 923-3419
#NI

Cabinet parts diagram

Service manual

Part #923-3419

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker 049-01257-08
#2

Cabinet parts diagram

Television speaker

Part #049-01257-08

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Ba 2-4094
#5

Cabinet parts diagram

Cabinet ba

Part #2-4094

The manufacturer no longer makes this part, and there's no substitute part

Screen 192-891-02
#9

Cabinet parts diagram

Screen

Part #192-891-02

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord A-18682
#NI

Cabinet parts diagram

Ac cord

Part #A-18682

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker 49-1364
#3

Cabinet parts diagram

Television speaker

Part #49-1364

The manufacturer no longer makes this part, and there's no substitute part
